• Model NO.：ruber covered hose
• Origin：China
• Production Capacity：15, 000, 000m,Year

Basic Info.

Model NO. ruber covered hose Origin China Production Capacity 15, 000, 000m/Year

Product Description

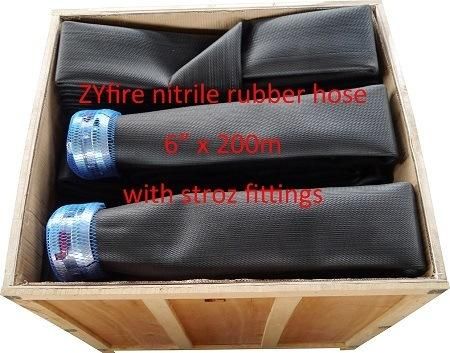

NBR frac water hose




Tube and  cover:  Nitrile /PVC Blend, ribbed cover for maximum abrasion resistance thick wall.

Reinforcement: 100% virgin high tenacity polyester Jacket

Color: Black, Red, Yellow, orange, Blue

Package: Rolled,  packed in carton or loaded in pallet

Application: Water discharge,  Transfers,  Drainage,  Irrigation installations,  Pumping  of  sludge  and  liquid  fertilizers,  Irrigation,  Chemical  industry,  Refineries,  Air-pressure  Premium  Solution

Standard length: 15m (50ft),  20m (66ft),  30m (100ft),  60m(200ft),  90m (300ft), 200m(660ft), 300m(990ft),  also  can  be  customized  according  to  requirements

Manufacturing Technology:  through-the-weave technology without delamination issues

Hose shall be made from 100% high tenacity synthetic yarn circular woven and completely, protected and locked-in by tough highly resistant synthetic nitrile rubber, forming a single homogenous construction without the use of glues or adhesives of any type.

Lining Properties:

a. Ultimate Tensile Strength:Tensile strength of the lining and cover shall not be less than 1500 psi (10,500 kpa ).

b. Ultimate Elongation: 400% minimum.

c. Accelerated Aging Test

The tensile strength and ultimate elongation of the vulcanized rubber compound which has been subjected to the action of oxygen at a pressure of 300 psi +/- 10 psi , (2100kpa +/- 70kpa) and temperature of 70degrees centigrade +/-1 degree centigrade (158 F +/- 18 F ) for a period of 96hours shall be , greater than 60% of the original properties stated.

Temperature range: From -30 C deg to 80 C deg (-22 F deg to 176 F deg)

Abrasion Resistance: withstand 101000 cycles.
