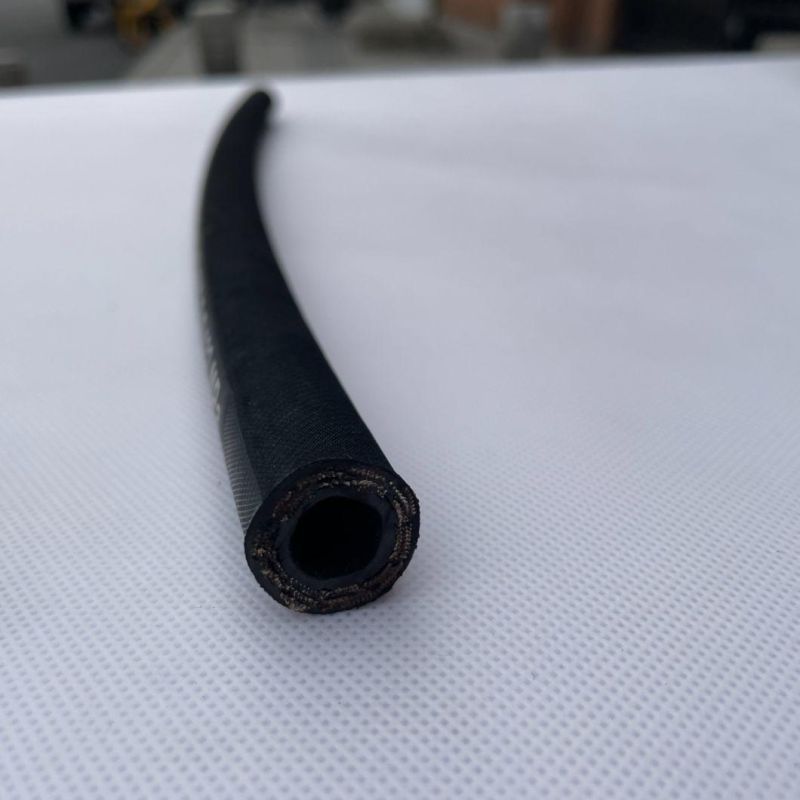

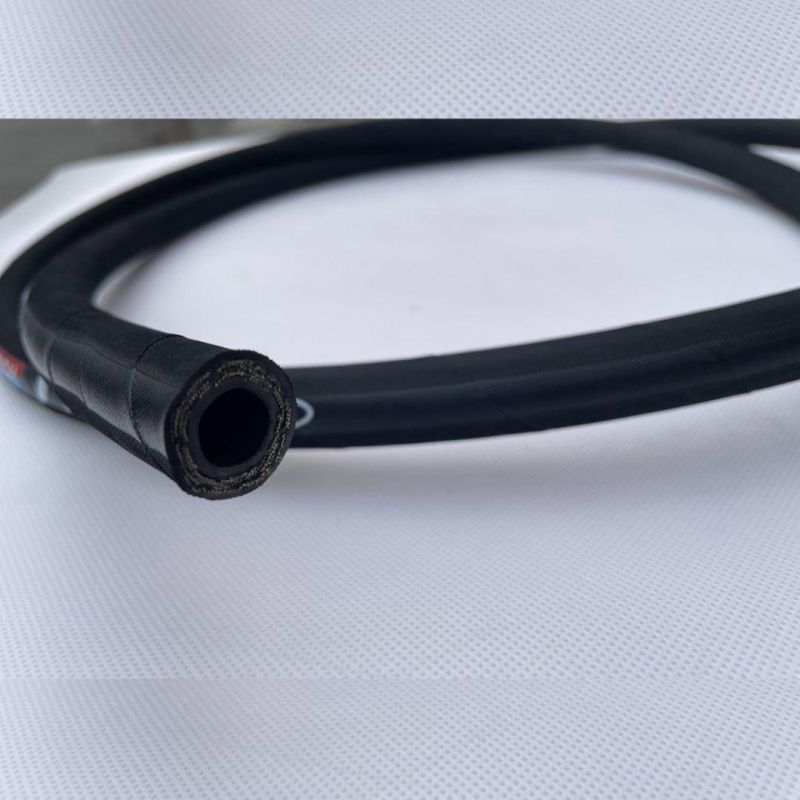

R2 at DN10 High Pressure Rubber Hydraulic Hose
Consolidflex Industry Co., Ltd.- Material：Nitrile Rubber
- Capability：Heat-resistant Rubber Hose
- Color：Black

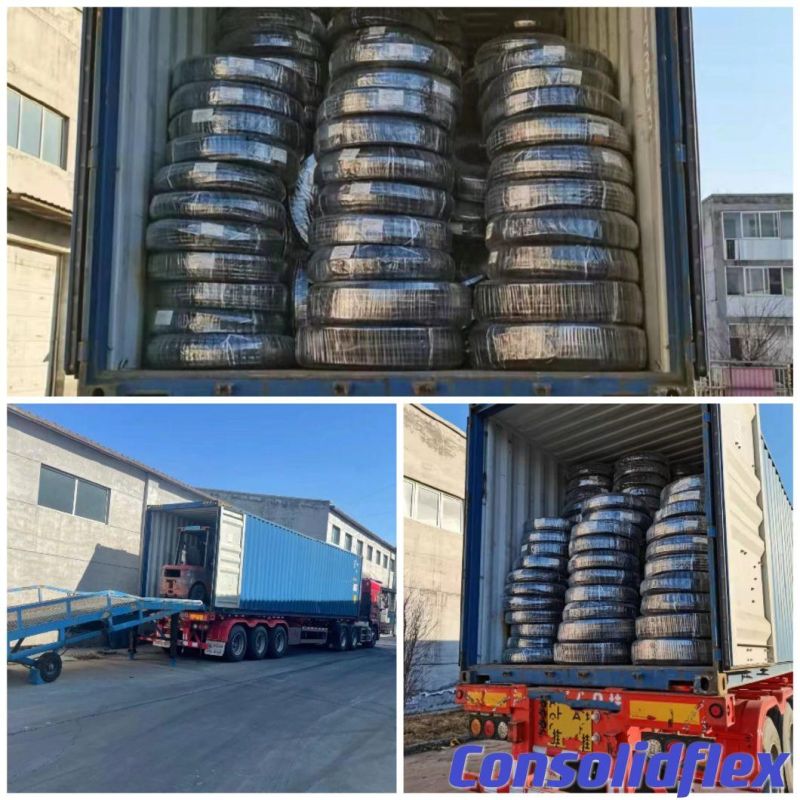

- Transport Package：Transparent Film, and Pallet.
- Trademark：Consolidflex
- Origin：Hebei
Base Info
- Model NO.：2SN 3,8
- HS Code：40093100
- Production Capacity：1000000meter,Year
Description
Burst PressureMinimum Bend Radius Weight Length inch mm mm mm MPa psi MPa psi mm kg/m metres 5 3/16" 4.8 11.1 13.4 41.4 6000 165 23720 89 0.32 50/100 6 1/4" 6.4 12.7 15 40 5800 160 22840 102 0.36 50/100 8 5/16" 7.9 14.3 16.6 36 5250 140 20000 114 0.45 50/100 10 3/8" 9.5 16.7 19 33.1 4800 132 18840 127 0.54 50/100 13 1/2" 12.7 19.8 22.2 27.6 4000 110 15720 178 0.68 50/100 16 5/8" 15.9 23 25.4 25 3630 100 14280 203 0.8 50/100 19 3/4" 19 27 29.3 21.5 3120 85 12280 241 0.94 50/100 25 1" 25.4 34.9 38 16.5 2400 65 9420 305 1.35 50 32 1 1/4" 31.8 44.5 48.3 12.5 1820 50 7140 419 2.15 20/40 38 1 1 /2" 38.1 50.8 54.6 9 1310 36 5140 508 2.65 20/40 51 2" 50.8 63.5 67.3 8 1160 32 4560 635 3.42 20/40
Tube:Oil resistant, synthetic rubber
Reinforcement:Two braids of high tensile steel wire
Cover:High ozone, weather and heat resistant synthetic rubber
Temperature:-40° F / +212° F, Intermittent use up to 250° F
Application:Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion,water.
Tube:Oil resistant, synthetic rubber
Reinforcement:Two braids of high tensile steel wire
Cover:High ozone, weather and heat resistant synthetic rubber
Temperature:-40° F / +212° F, Intermittent use up to 250° F
Application:Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion,water.
