3/8 Inch SAE100r2 High Pressure Industric Hydraulic Wire Braided Water Rubber Hose

Hengshui Xinliyuan Technology Co., Ltd.
  • Material：Synthetic Rubber
  • Capability：Rubber Oil Hose
  • Color：Black
  • Product Name：3,8 R2 High Press Hydraulic Steel Wire Braid Hose
  • Surface：Wrapped, Smooth
  • Fitting：Available

Base Info

  • Model NO.：SAE & DIN 1,4"-6"
  • Temperature：-40 to +120 Degree
  • Size：6mm-102mm
  • Reinforcement：Steel Wire
  • Length：100m, 50m, 40m20m
  • Sample：Available
  • Assembly：Available
  • Medium：Oil,Water
  • Surface Color：Red, Blue, Yellow, Gray, Green, Black
  • Transport Package：Plastic Weave Belt
  • Specification：R2 & 2SN 3,8
  • Trademark：Qicheng or OEM
  • Origin：Hengshui, China
  • HS Code：40092100
  • Production Capacity：6000000m

Description

Product NumberHose ID O.D. Max W.P. Min B.P. Min B.R. Weight mminmmMpapsipsimmkg/m1SN-066.31/4"14.122.53260130501000.231SN-0885/16"15.721.53120123301150.271SN-10103/8"18.1182610104401250.341SN-1312.51/2"21.416232092801800.431SN-16165/8"24.513189075402050.511SN-19193/4"28.510.5152060902400.661SN-25251"36.68.71280508030011SN-3231.51 1/4"44.86.391036304201.351SN-38381 1/2"52.1572029005001.561SN-51512"65.5458023206302.2
STANDARD:SAE100R2AT/ DIN EN853 2SN
 Product NumberHose ID O.D. Max W.P. Min B.P. Min B.R. Weight mminmmMpapsipsimmkg/m2SN-066.31/4"15.7405801232041000.342SN-0885/16"17.3355076203041150.392SN-10103/8"19.7334786191441300.492SN-1312.51/2"2327.53989159561800.592SN-16165/8"26.2253625145002000.712SN-19193/4"30.121.53118124722400.892SN-25251"38.916.5239394303001.372SN-3231.51 1/4"49.512.5181372524202.272SN-38381 1/2"55.99130552205002.442SN-51512"68.68116046406303

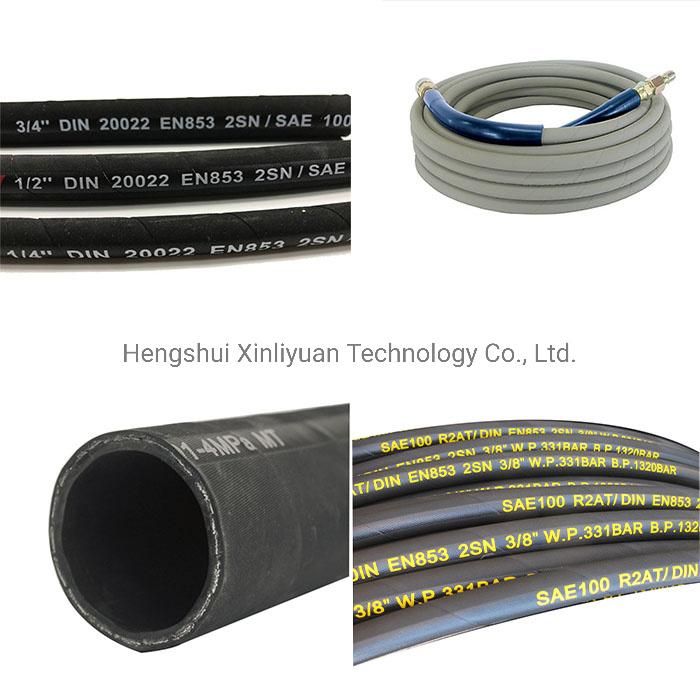

PRODUCT PICTURE:

3/8 Inch SAE100r2 High Pressure Industric Hydraulic Wire Braided Water Rubber Hose

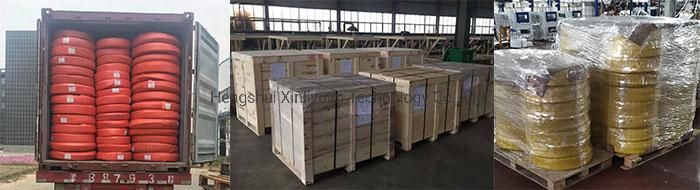

PACKING AND SHIPPMENT:
3/8 Inch SAE100r2 High Pressure Industric Hydraulic Wire Braided Water Rubber Hose

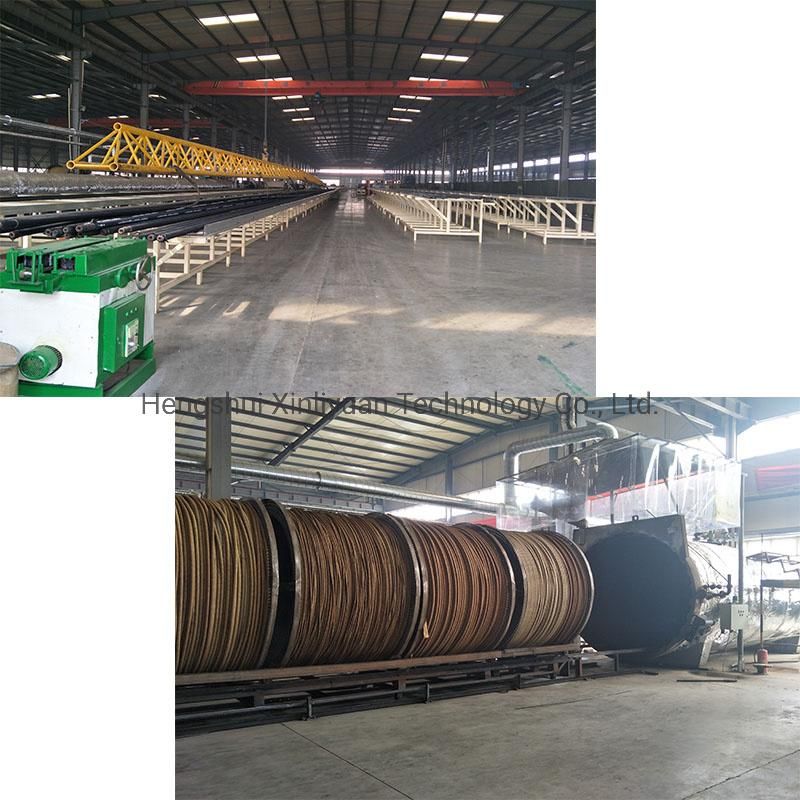

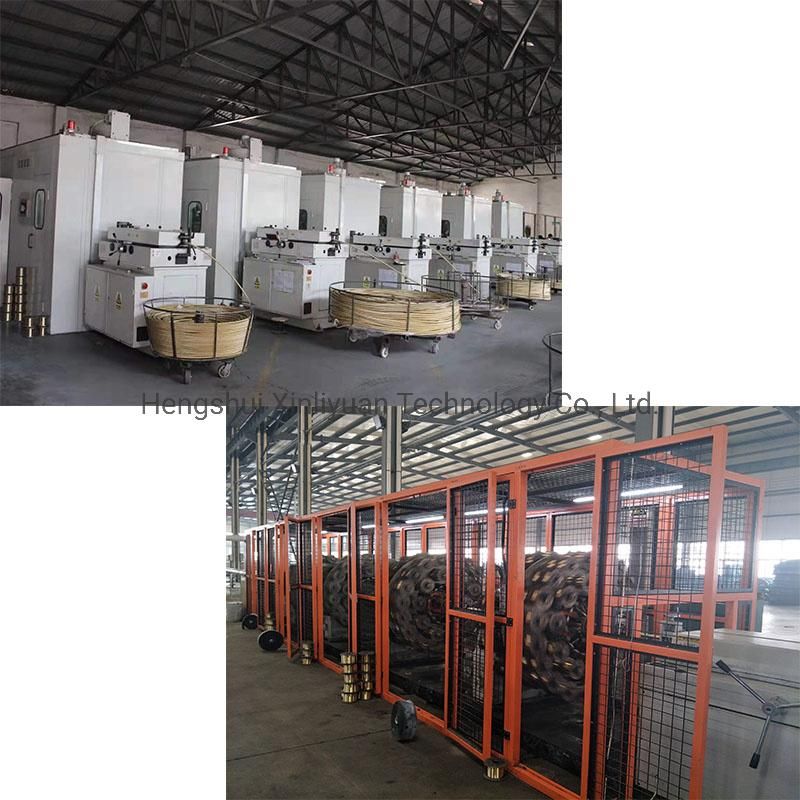

WORKSHOP:
3/8 Inch SAE100r2 High Pressure Industric Hydraulic Wire Braided Water Rubber Hose
3/8 Inch SAE100r2 High Pressure Industric Hydraulic Wire Braided Water Rubber Hose

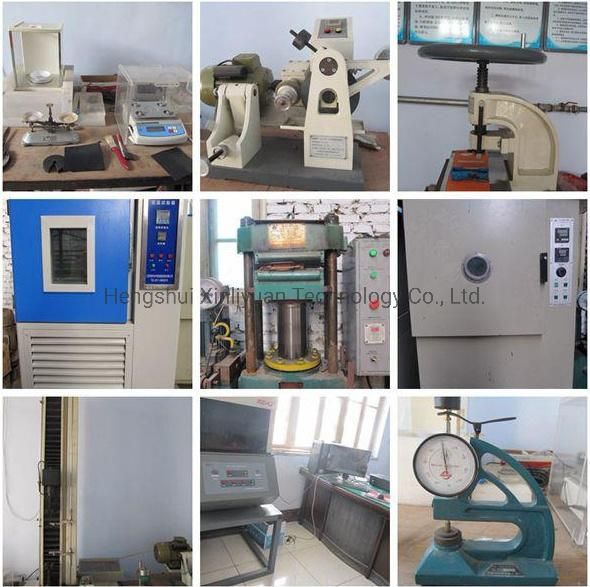

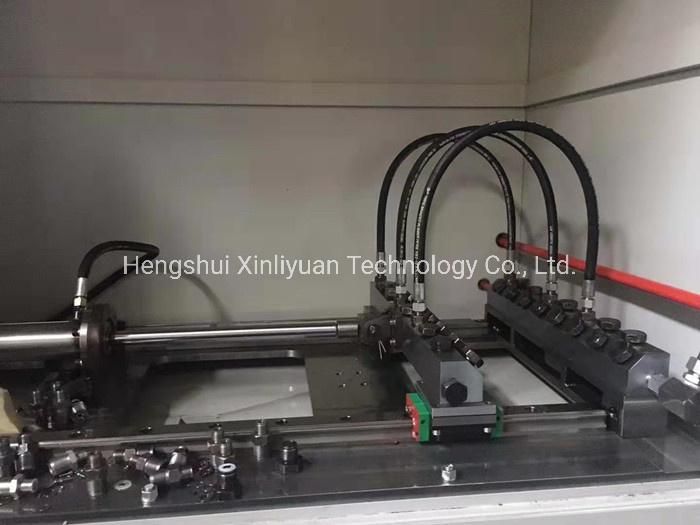

QUALITY CONTROL:
3/8 Inch SAE100r2 High Pressure Industric Hydraulic Wire Braided Water Rubber Hose
3/8 Inch SAE100r2 High Pressure Industric Hydraulic Wire Braided Water Rubber Hose
FAQ:

Q1:Can I get some hydraulic hose samples?

 A:Free sample is available for you,only express charge will be paid by you.

Q2:How does your factory do regarding quality control?

A:Quality is priority.we always take great importance to quality control from begin to the end.

Q3: Are you a factory or trading company?

A:We are a factory with rich export experience and assume first-hand, high quality and competitive price.

Q4:How about your delivery time?

A:Usually,it will take 10-15days after received your advanced payment.Customized product will be talking with each other.

Q5: What is your terms of payment ?

A:T/T 30% as deposit,70% before delivery.we will show you the photos of the products and packages before you pay balance
