Large Fluorine Glue V Type Clip Cloth Combination Seal Ring, Large Fluorine Glue J Type Clip Cloth Combination Oil Seal, 1250*1300

Ren County Fumeida Machine Parts Co., Ltd.
  • Application：Machinery, Industrial Component, Electronic Product, Vehicle, Household Appliance
  • Effect：Hole with Seal

Base Info

  • Model NO.：1250*1300
  • Cross-Section Shape：J Shape
  • Transport Package：The Cartons
  • Specification：1250*1300
  • Trademark：FMD
  • Origin：China
  • Production Capacity：100000PCS,Year
  • Package size per unit product：1250.00cm * 1300.00cm * 100.00cm
  • Gross weight per unit product：1.000kg

Description

The product nameFabric oil sealspecifications1250*1300standardstandardTransport packagingThe cartonsProduct materialButadiene rubber, cotton fabricplace of originChina
Large Fluorine Glue V Type Clip Cloth Combination Seal Ring, Large Fluorine Glue J Type Clip Cloth Combination Oil Seal, 1250*1300Large Fluorine Glue V Type Clip Cloth Combination Seal Ring, Large Fluorine Glue J Type Clip Cloth Combination Oil Seal, 1250*1300Large Fluorine Glue V Type Clip Cloth Combination Seal Ring, Large Fluorine Glue J Type Clip Cloth Combination Oil Seal, 1250*1300Large Fluorine Glue V Type Clip Cloth Combination Seal Ring, Large Fluorine Glue J Type Clip Cloth Combination Oil Seal, 1250*1300

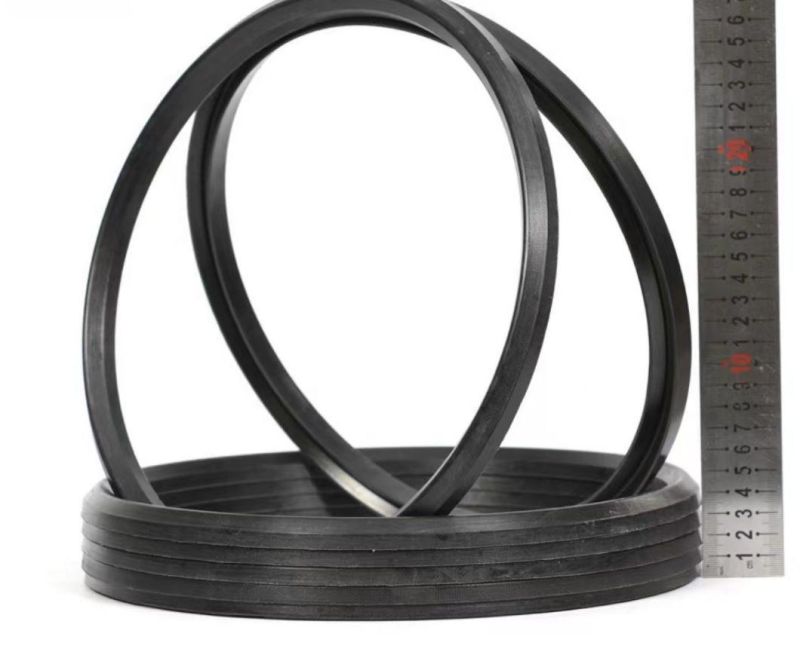

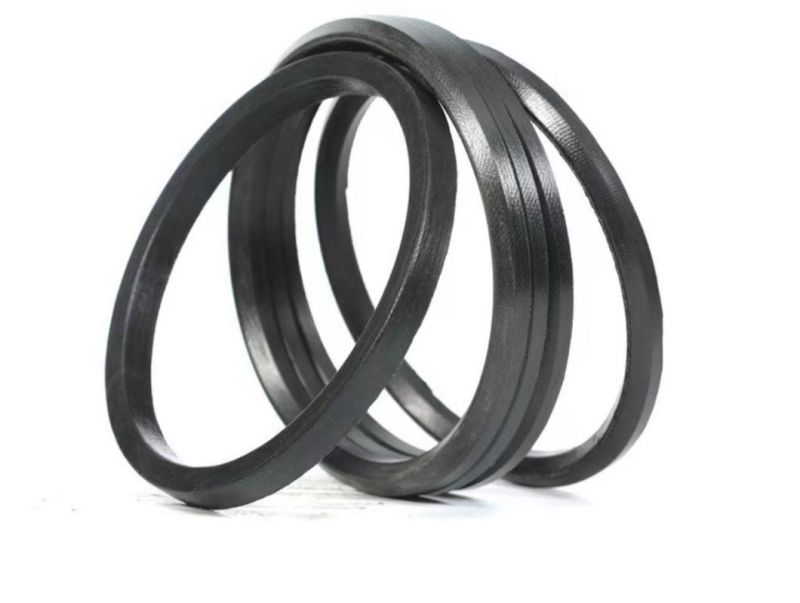

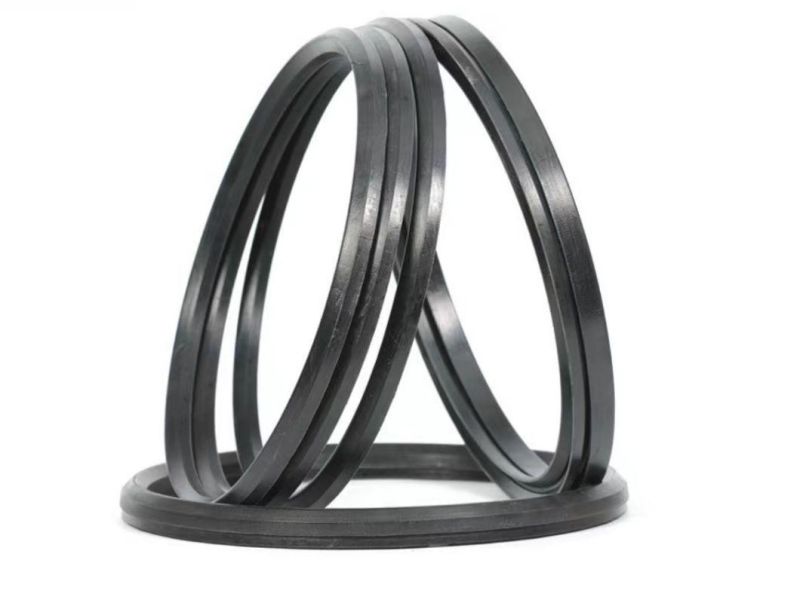

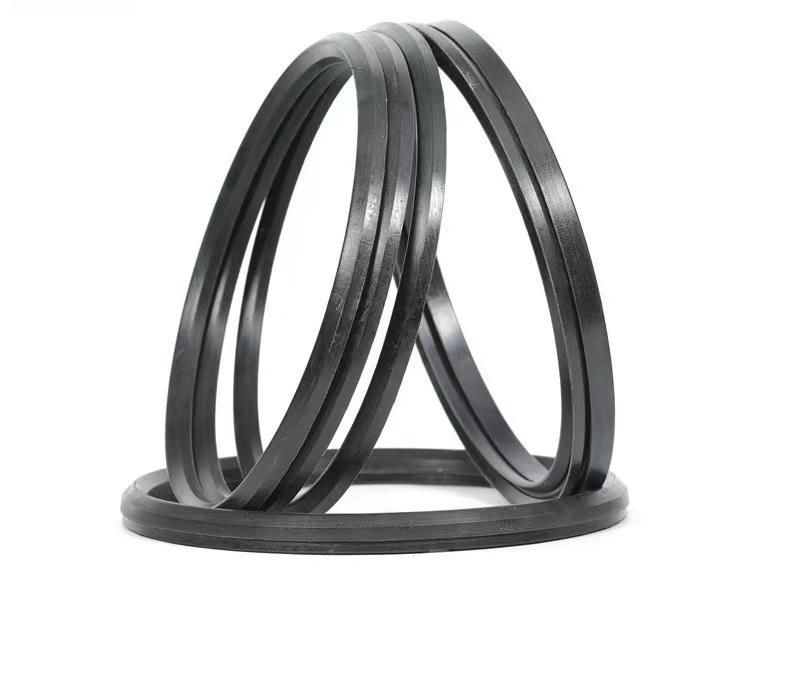

V series sealing ring is fabric structure, molded by rubber fabric. It is usually composed of three parts: supporting ring, sealing ring and pressure ring. According to the pressure, several sealing rings can be used together (usually 7). V-ring can be used in high pressure, large diameter, high speed, long stroke and other harsh conditions. Can be used as shaft, also can be used as hole sealing.

Main features:

1, good sealing performance, easy installation;

2, impact pressure resistance;

3, allow a large extrusion clearance;

4. The number of V-shaped rings can be selected according to the working condition.

Working conditions:

Working pressure: ≤40MPa; Operating temperature: -25°C-+120ºC

Working medium: hydraulic oil, emulsion; Reciprocating speed: ≤0.5m/s
