• Model NO.：3A1003
• Tensile Strength：8MPa
• Hardness：45-75shore a
• Elongation：380%
• Density：1.25g,cm3
• Size：Standard Size
• Grade：Food Grade, Platinum Cured
• Transport Package：Packing in Rolls and Cartons
• Specification：Standard Size
• Trademark：3A Rubber
• Origin：China
• HS Code：3920999000
• Production Capacity：100000kgs,Month

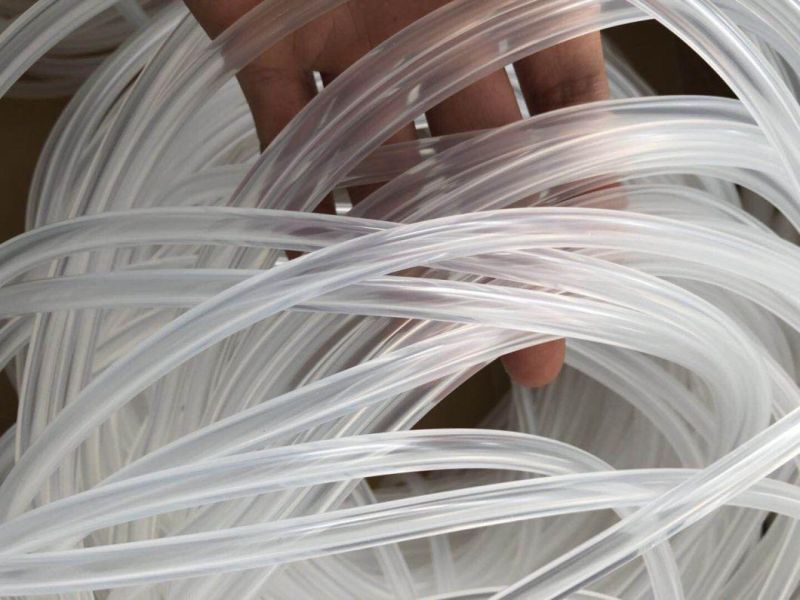

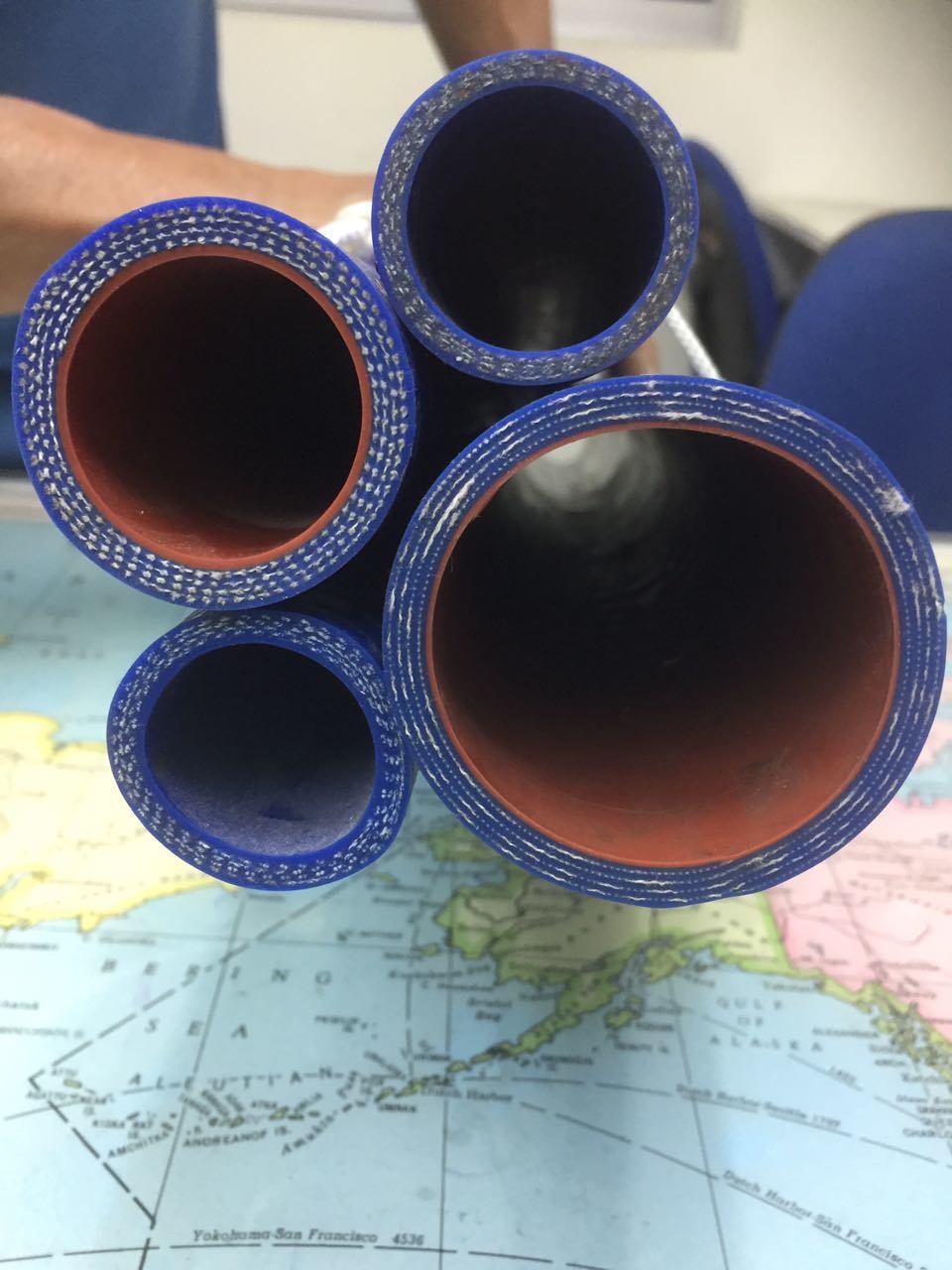

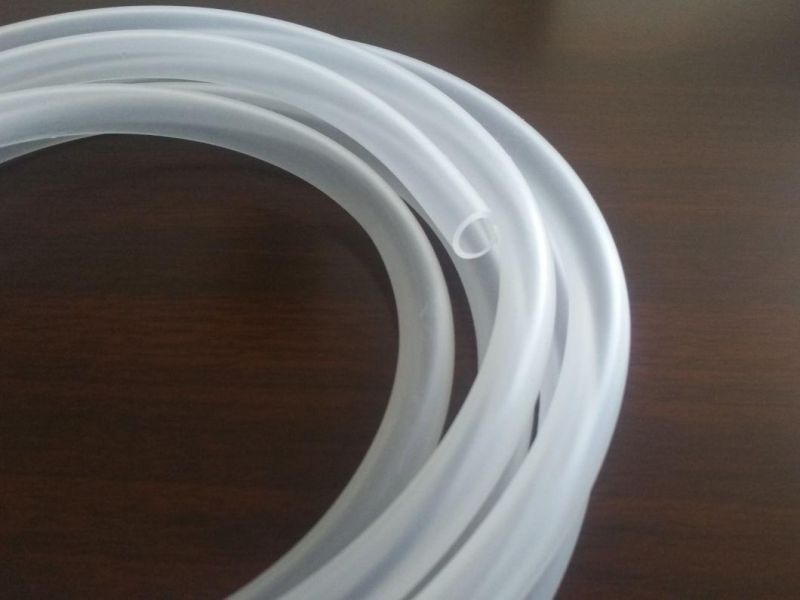

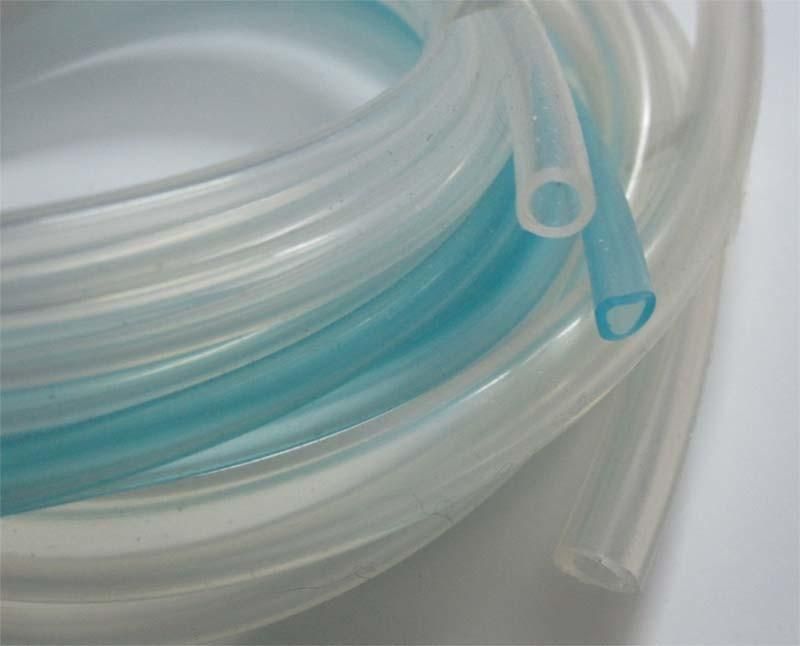

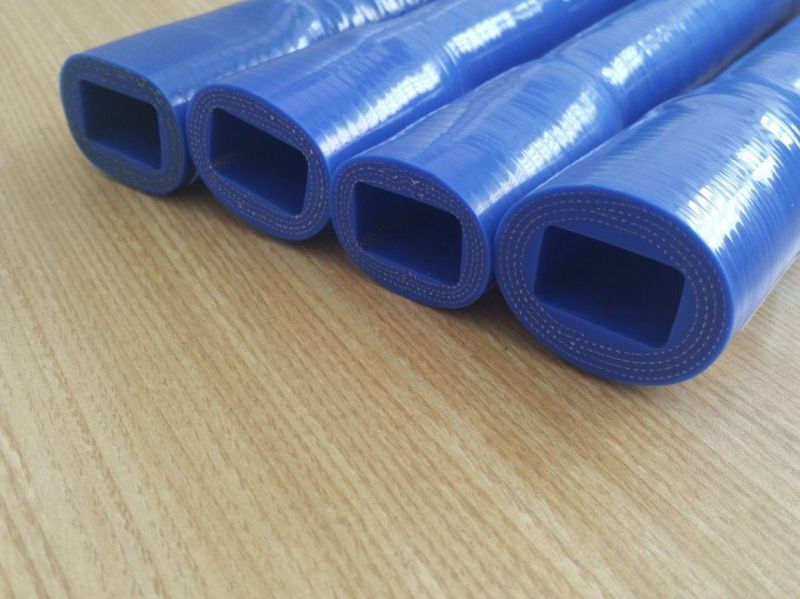

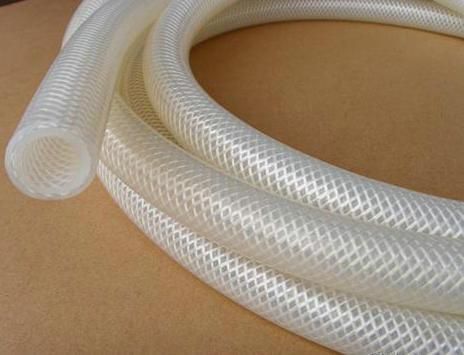

Food grade silicone fiber hose, silicone braided hose, silicone reinforeced hoseItemsilicone fiber hose, silicone braided hose, silicone reinforeced hoseMaterialfood grade silicone materialReinforecedbraided polyester fiberColortransparent, red, blue, black or as the buyer's request colorSurfacesmoothTensile strength7.5-9.8MpaHardness50-70shore AElongation300%Density1.25g/cm³Working press10KgsMinimum working temperature-30°CMaximum working tempeerature+250°CID5~32mmWall thickness3~5mmToleranceID less than 1/2'', ±0.3mm; ID more than 1/2'', ±0.5mmSizeid5mm x od11mmid6mm x od12mmid8mm x od14mmid11mm x od17mmid13mm x od21mmid16mm x od24mmid19mm x od27mmid25mm x od35mmid32mm x od42mmProperties: znti-aging, erosion-endurable, high temperature resistance, anti-shock, etc.Advantages: customized+ high performance+ high quality+ favorable price+ rich experience

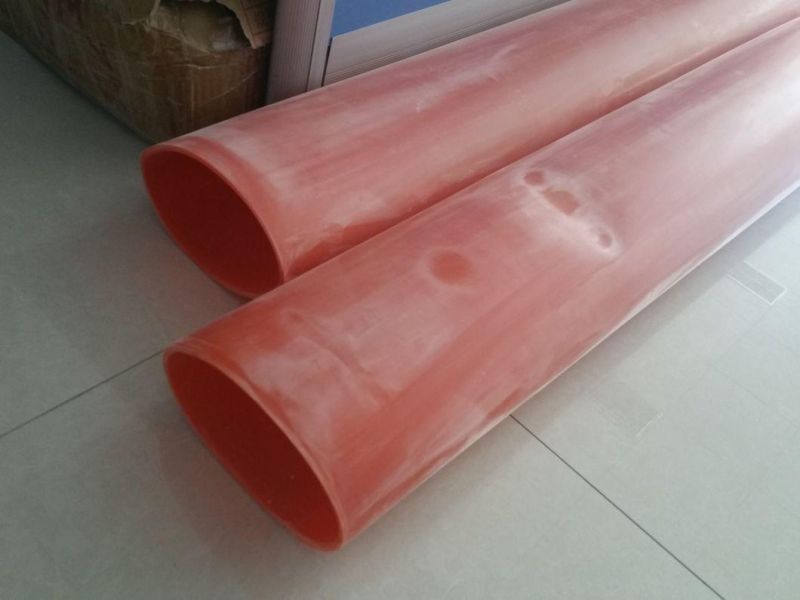

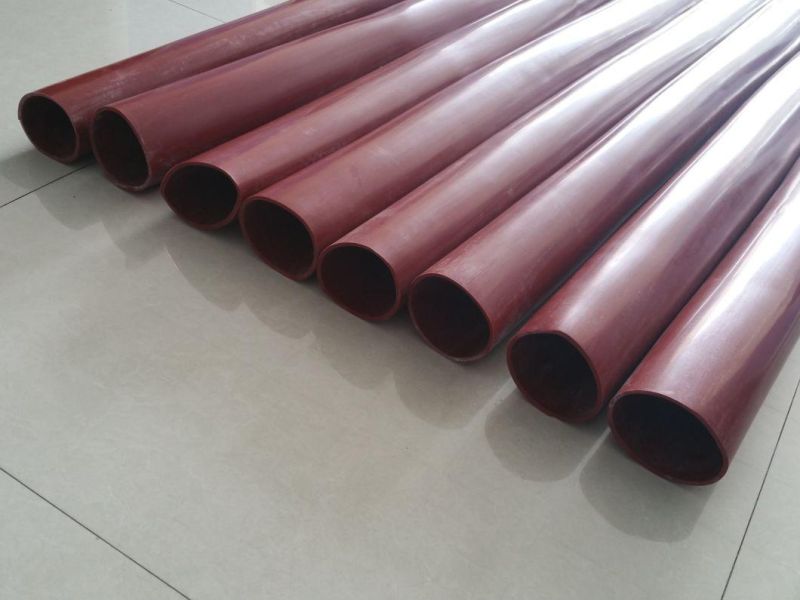

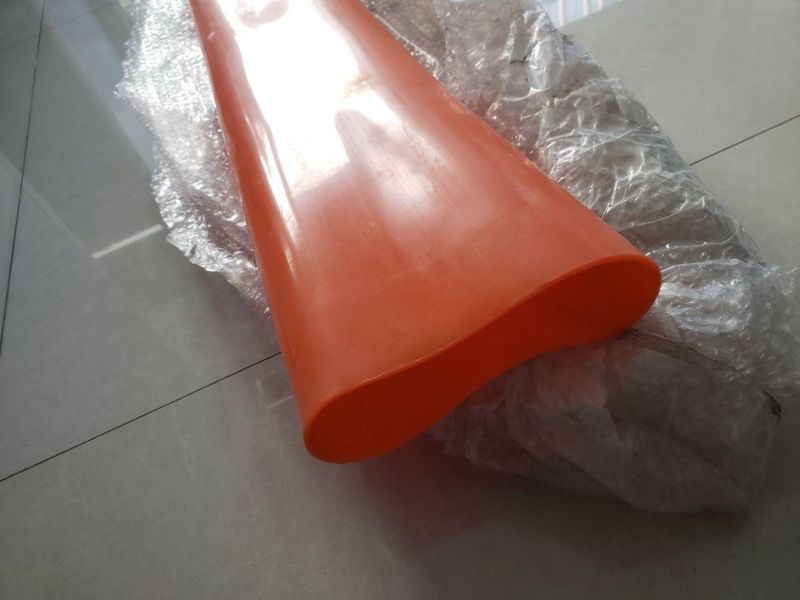

Corona silicone tube, silicone sleeve:

Description: the corona silicone tube, silicone sleeve are made with high quality import fume silicone material which can resistant high voltage and inflaming retarding and special for corona machine. The high voltage corona sparkle is well-proportioned, it is easy to print color on plastic film with surface activation and millipore after corona treatment. Resistant 25KV at 1mm wall thickness. Apply for the roller sleeve, high-voltage terminal, protective sleeve, flexing tubing for all kinds of corona machine.



Specifications:

material: 100% virgin silicone from Germany "Wacker"

color: orange, dark red, translucent, black etc.

tensile strength: 9.8Mpa

hardness: 60-70shore A

elongation: 700%

density: 1.25g/cm3

working temperature: -60°C - +250°C

resistant: 18-25KV/mm

wall thickness: 3.0, 4.0mm

standard size:

Ø32mm x Ø38mm x 2-20m

Ø32mm x Ø40mm x 2-20m

Ø34mm x Ø42mm x 2-20m

Ø46mm x Ø54mm x 2-20m

Ø50mm x Ø58mm x 2-20m

Ø55mm x Ø62mm x 2-20m

Ø60mm x Ø66mm x 2-20m

Ø60mm x Ø68mm x 2-20m

Ø63mm x Ø71mm x 2-20m

Ø67mm x Ø75mm x 2-20m

Ø75mm x Ø83mm x 2-20m

Ø80mm x Ø88mm x 2-20m

Ø90mm x Ø98mm x 2-20m

Ø98mm x Ø102mm x 2-20m

Ø106mm x Ø114mm x 2-20m

Ø140mm x Ø150mm x 2-20m

Ø145mm x Ø153mm x 2-20m

Ø162mm x Ø172mm x 2-20m

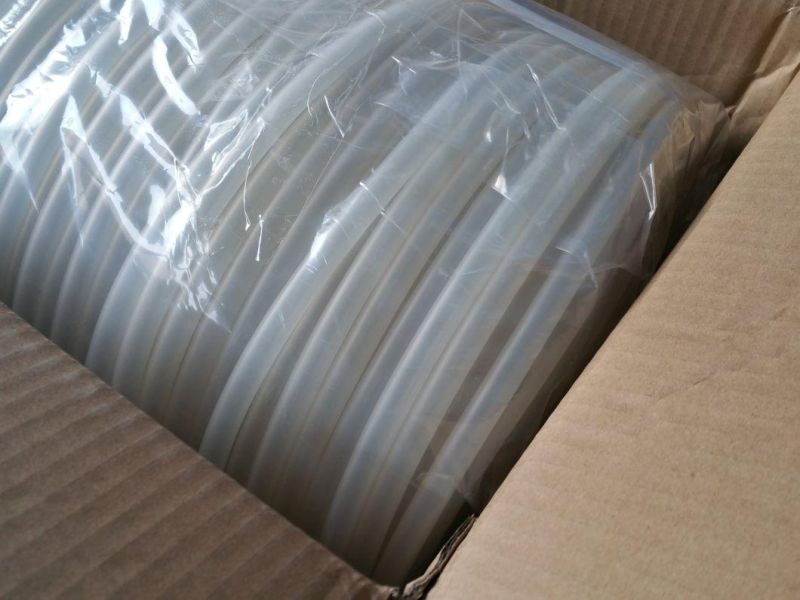

packing in cartons

OEM & customized size are agreed

***when you enquiry, pls confirm the color, quality, hardness, size, quantity***
