High Pressure Hydraulic Rubber Hose Wire Braided Spiral Flexible Rubber Oil Hose
Consolidflex Industry Co., Ltd.- Material：Nitrile Rubber
- Capability：Rubber Oil Hose
- Color：Black
- Transport Package：Transparent Film
- Trademark：Consolidflex
- Origin：Hebei
Base Info
- Model NO.：4SH 1"
- HS Code：40093100
- Production Capacity：1000000meter,Year
Description
Burst PressureMinimum Bend Radius Weight inch mm mm MPa psi MPa psi mm kg/m 10 3/8" 9.5 21.4 44.5 6450 180 26000 180 0.78 13 1/2" 12.7 24 41.5 6000 166 24000 230 0.89 16 5/8" 15.9 28.2 35 5000 140 20000 250 1.11 19 3/4" 19 32.2 35 5000 140 20000 300 1.59 25 1" 25.4 39.7 28 4000 112 16000 340 2.02 32 1 1/4" 31.8 50.8 21 3000 84 12000 460 3.32 38 1 1 /2" 38.1 57.7 18.5 3650 74 10800 560 3.7 51 2" 50.8 69.6 16.5 2360 66 9600 660 5.47

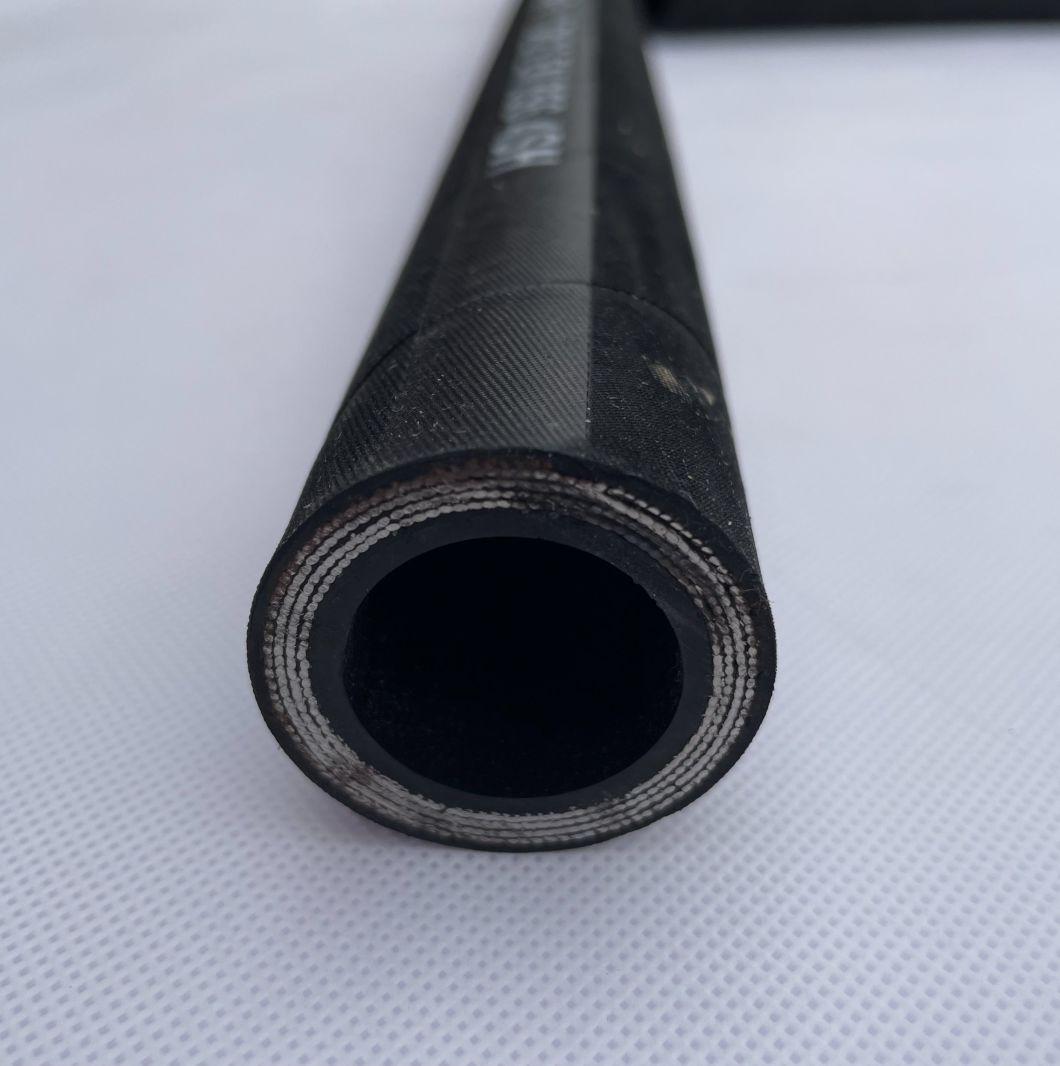

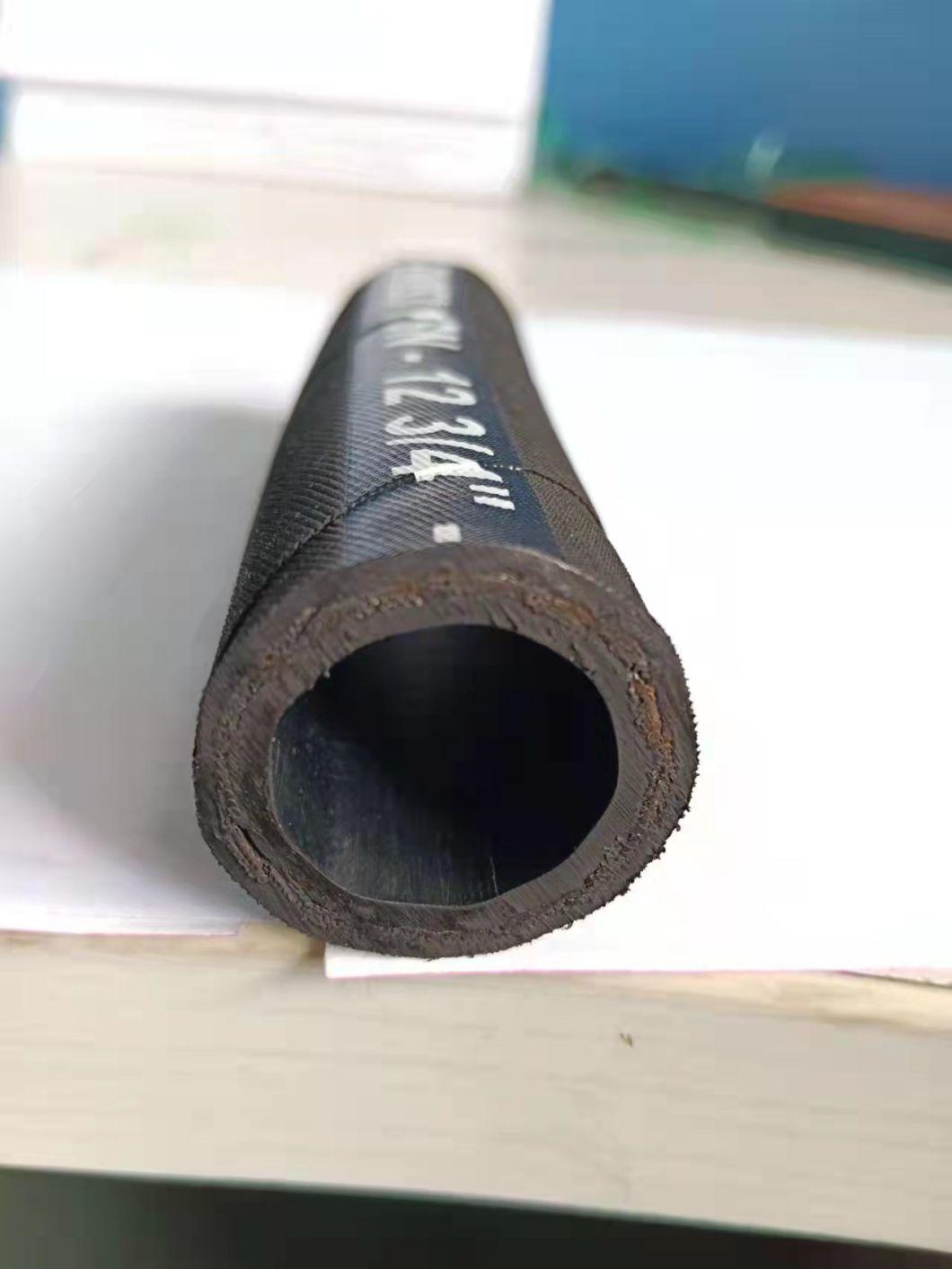

Tube:Oil resistant, synthetic rubber
Reinforcement:Four spirals of high tensile steel wire
Cover:Oil and weather resistant synthetic rubber
Temperature:-40° F / +212° F, Intermittent use up to 250° F
Application:Petroleum based hydraulic fluid,water, diesel fuels, lubricating oils, glycol, mineral oils, and more
Tube:Oil resistant, synthetic rubber
Reinforcement:Four spirals of high tensile steel wire
Cover:Oil and weather resistant synthetic rubber
Temperature:-40° F / +212° F, Intermittent use up to 250° F
Application:Petroleum based hydraulic fluid,water, diesel fuels, lubricating oils, glycol, mineral oils, and more
