Heat Resistant Rubber Seal for Fire Door Smoke Seal

Tianjin Wortai International Trade Co., Ltd.
  • Material：PVC+Graphite
  • Application：Fire-Proof Door Seal
  • Effect：Fire-Proof Seal
  • Cross-Section Shape：I- Type
  • Color：Red, Brown, White, Black, etc

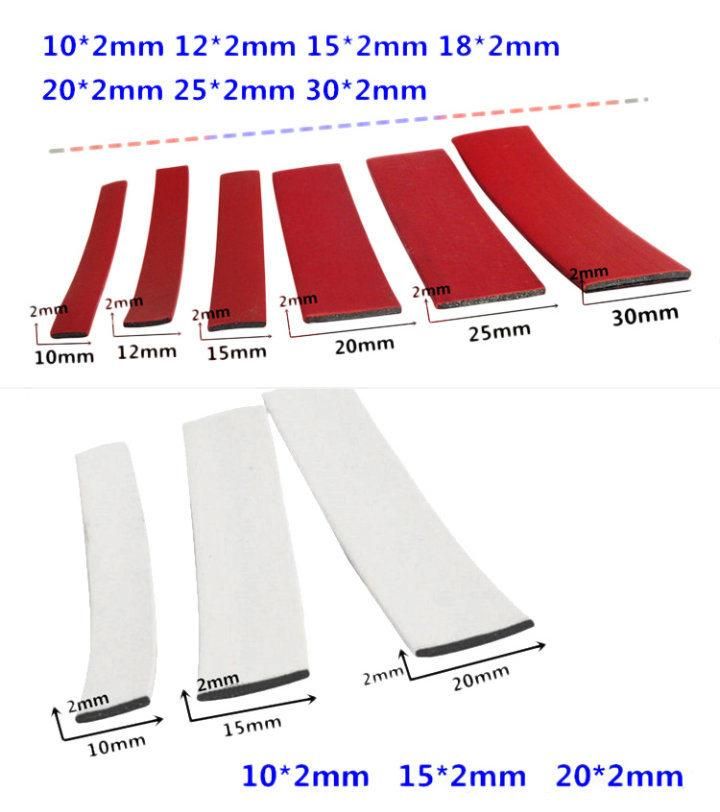

  • Width：10-50mm

Base Info

  • Model NO.：Can be customized
  • Thickness：1-4mm
  • Initial Expansion Temperature：180ºC
  • Transport Package：Carton
  • Specification：Can be customized
  • Trademark：WORTAI
  • Origin：China
  • HS Code：4016931000
  • Production Capacity：200000 Meter,Meters Per Month

Description

Product nameheat resistant rubber seal for fire door smoke sealMaterialExpandible graphite and PVCSizeThe width: 10-50mm
The thickness: 1-5mmColorRed, brown, white, blackInitial expansion temperature199ºCMain expansion temperature347ºCLinear expansion ratio≥3 timesFunctionWhen on fire, the rapid expansion, closed doors and windows crack, prevent smoke and heat channeling into, to ensure personal
safety,Sound insulationApplicationFire-proof door, community security door, heating furnace, heat sink, building pipe wells etc.
Heat Resistant Rubber Seal for Fire Door Smoke Seal


Heat Resistant Rubber Seal for Fire Door Smoke Seal

Advantage:

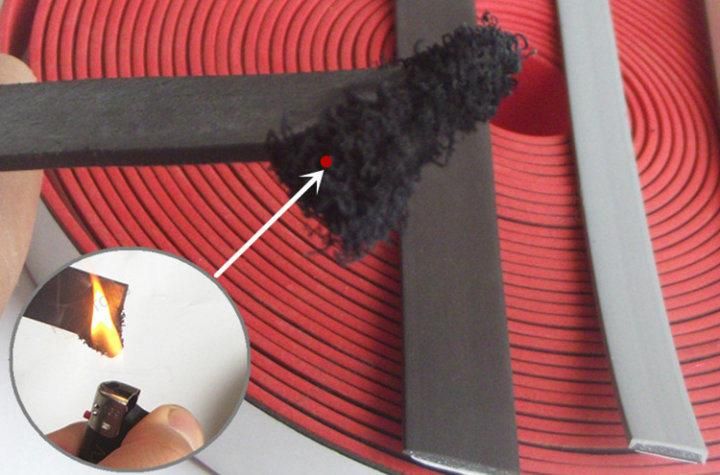

Intumescent material expands when heated to seal around objects exposed to fire
Smoke seal retards spread of toxic by-products of combustion
Documented aging properties

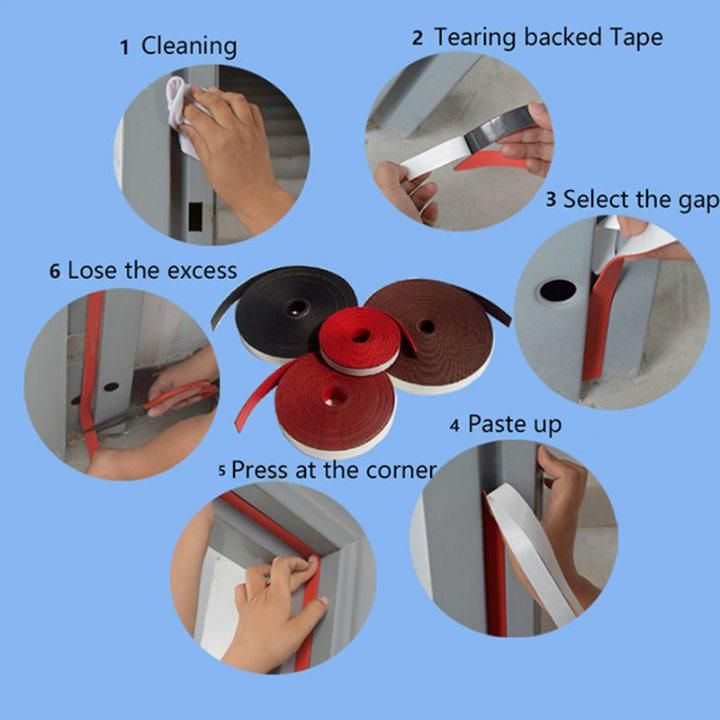

Excellent flexibility for easy and cost-effective installation
Low flame spread and smoke development
Can be cut required length
Re-enterable (no special tools required)
Low odor

Heat Resistant Rubber Seal for Fire Door Smoke Seal

Application:

Usd in fire doot assemblies of timber, steer or composite construction, intumescent expands rapidly to many times (6 - 30 times) its original size upon contact with fire, it concentrates high pressure in confined spaces, exfoliates slowly to protect itself once activated and has good insulation properties. When correctly positioned in the door leaf or door frame margin, the seals expand when activated to prevent the passage of flames, hot smoke and fumes from one compartment to another

Heat Resistant Rubber Seal for Fire Door Smoke Seal

Delivery and packing:

1. Express DHL,Fedex, UPS,TNT etc
2. By air
3. By sea
The delivery time usually 7-15 workdays, it depands on your quantity.

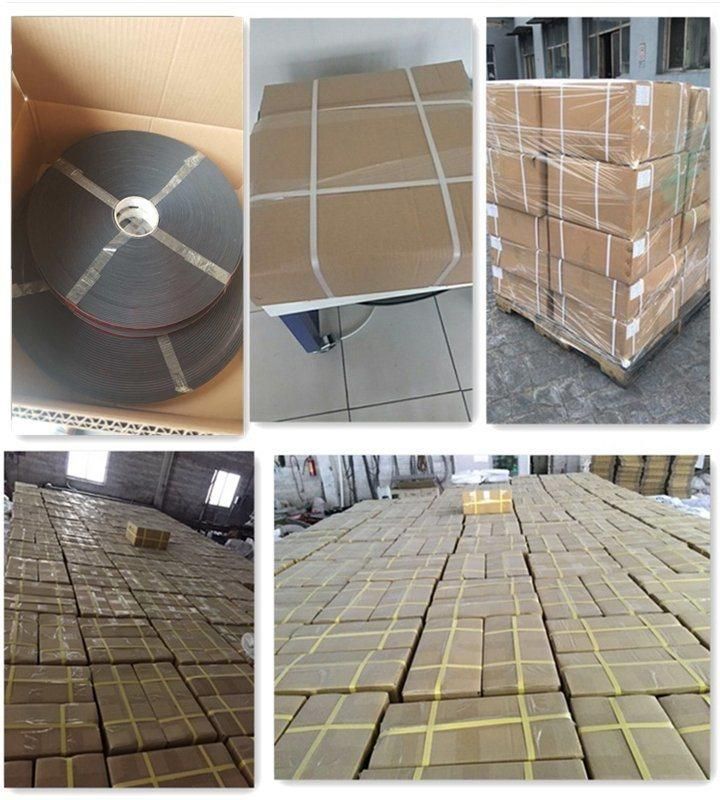

Packing: 25/30/50 meters per roll etc, 10 Rolls per Carton
                 Can customize the packing according to the customer`s requirements

Heat Resistant Rubber Seal for Fire Door Smoke Seal


Our company

Tianjin Wortai International Trade Co., Ltd is based in Pilot Free Trade Zone(Central Business District) in Tianjin City supplying customers with Bath Shower Screen Seals, Shower Door Seals, Magnetic Door Seals, Curved Shower Screen Seals, Refrigerator Door Gasket Seal, Sponge Cleaning Balls, Door and Window Seals, Rubber Fender and many other rubber and plastic products sourced in China.

Our service

1.OEM is available. (Print your logo on package if you need)
2. Free samples
3. Provide "intimate service"(service just in time) of pre-sale, sale and after-sale service
4. If you come to our factory, pls informe us advance,we will pick you up
