Ugw 6000psi 2sn Hydraulic Rubber Hose and Fittings Assembly for Heavy Machinery Operation
HEBEI YOULU FLUID TECHNOLOGY CO., LTD.- Material：Nitrile Rubber
- Capability：Rubber Oil Hose
- Color：Black
- Model：Hydraulic Hose
- Length：20m, 40m, 60m or as Your Request
- Hose I.D.：3,4′′ - 2′′
Base Info
- Model NO.：hydraulic hose
- Max Work Pressure：6527psi (45MPa)
- Minimum Bursting Pressure：26106psi (180MPa)
- Minimum Bending Radius：150mm
- Weight：0.61~4.92kg,M
- Reinforcement：Spiral of High--Tensile Wire
- Temperature Range：-40ºFto 212ºF
- Applications：Hydraulic Hose, Industrial Hose
- Cover：Black Neoprene Blend
- Transport Package：Shipping
- Specification：1,4′′-2′′
- Trademark：UGW
- Origin：China
Description
Min B.PMin.B.R Weight in mm Mpa psi Mpa psi mm Kg/m 1SN-3 3/16 12.5 25.0 3630 100 14500 90 0.19 1SN-4 1/4 14.1 22.5 3260 90 13050 100 0.23 1SN-5 5/16 15.7 21.5 3120 85 12330 115 0.27 1SN-6 3/8 18.1 18.0 2610 72 10440 125 0.34 1SN-8 1/2 21.4 16.0 2320 64 9280 180 0.43 1SN-10 5/8 24.5 13.0 1890 52 7540 205 0.51 1SN-12 3/4 28.5 10.5 1520 42 6090 240 0.66 1SN-16 1 36.6 8.7 1280 35 5080 300 1.00 1SN-20 1 1/4 44.8 6.3 910 25 3630 420 1.35 1SN-24 1 1/2 52.1 5.0 720 20 2900 500 1.56 1SN-32 2 65.5 4.0 580 16 2320 630 2.20
Quality control:

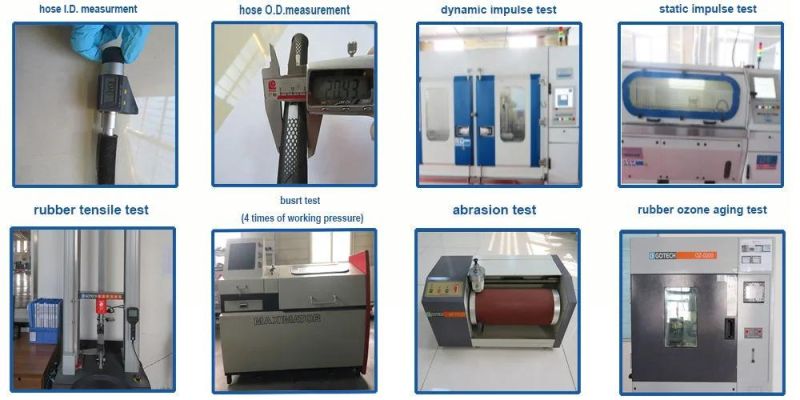

Our Lab:

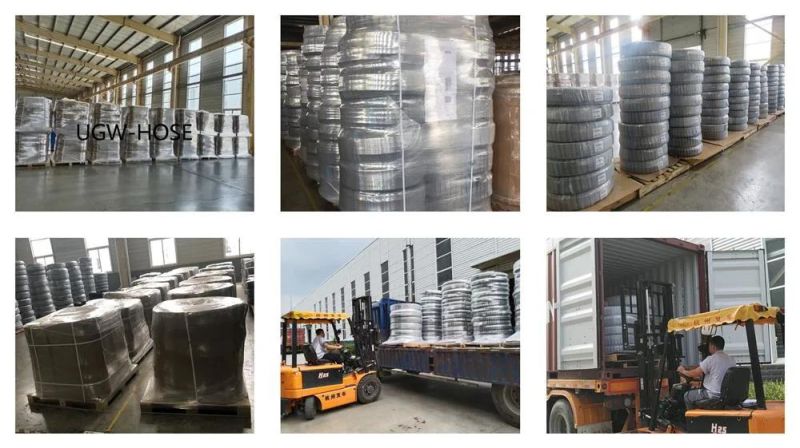

Packaging & Shipment:
Application:
1.We can offer OEM Services
2.We can provide FREE SAMPPLE for our customers
3.We can crimp hose assembly for our customers.
4.We welcome clients to visit our factory leading to better understanding of our production.
