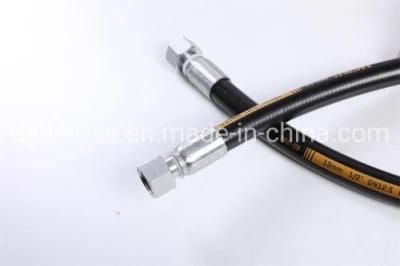

3/8 100 R2at Hydraulic Hose with 3/8 Male Mpt Ends
HEBEI YOULU FLUID TECHNOLOGY CO., LTD.- Material：Nitrile Rubber
- Capability：Rubber Oil Hose
- Color：Black
- Model：2sn Rubber Hose
- Length：20m, 40m, 60m or as Your Request
- Hose I.D.：3,16′′~2"
Base Info
- Model NO.：hydraulic hose
- Max Work Pressure：6019psi (41.5MPa)
- Minimum Bursting Pressure：23930psi (165MPa)
- Minimum Bending Radius：90mm
- Weight：0.27~3kg,M
- Reinforcement：Two Braided Layer of High Tensile Steel Wire
- Temperature Range：-40°c to 120°c
- Surface Option：Smooth or Cloth Wrapped Surface
- Applications：Coal , Mining , Agricultural Machine , Other Hydra
- Color Option：Black, Red, Blue, Yellow and So on
- Transport Package：Shipping
- Specification：3,16′′-2′′
- Trademark：UGW
- Origin：China
Description
Min B.PMin.B.R Weight in mm Mpa psi Mpa psi mm Kg/m 2SN-3 3/16 14.1 41.5 6019 165 23930 90 0.27 2SN-4 1/4 15.7 40.0 5801 160 23204 100 0.34 2SN-5 5/16 17.3 35.0 5076 140 20304 115 0.39 2SN-6 3/8 19.7 33.0 4786 132 19144 130 0.49 2SN-8 1/2 23.0 27.5 3989 110 15956 180 0.59 2SN-10 5/8 26.2 25.0 3625 100 14500 200 0.71 2SN-12 3/4 30.1 21.5 3118 86 12472 240 0.89 2SN-16 1 38.9 16.5 2393 65 9430 300 1.37 2SN-20 1 1/4 49.5 12.5 1813 50 7252 420 2.27 2SN-24 1 1/2 55.9 9.0 1305 36 5220 500 2.44 2SN-32 2 68.6 8.0 1160 32 4640 630 3.00
Our Services
Our Services
1.We can offer OEM Services
2.We can provide FREE SAMPPLE for our customers
3.We can crimp hose assembly for our customers.
4.We welcome clients to visit our factory leading to better understanding of our production.
