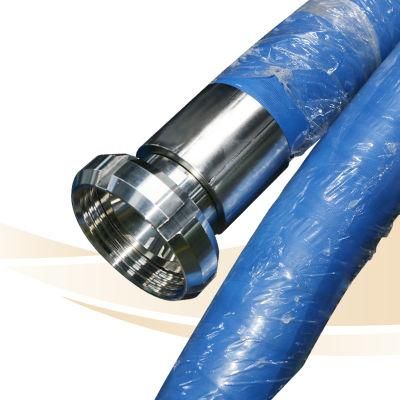

Braided Resistant NBR Rubber Tuber Food Grade Hose
VELON INDUSTRIAL INC.- Material：NBR
- Capability：Sanitary Hose
- Color：Color
- W.P.：150 Psi , 10 Bar
- B.P.：450 Psi , 30 Bar
- Length：60 M,Roll
Base Info
- Temperature：-30ºC to + 100 ºC
- Tube：NBR
- Reinforcement：High Tension Synthetic Textile, Helix Steel Wire
- Cover：NBR
- Application：Food, Brewery, Milk, Oil, Grease, etc.
- Certification：FDA 21 CFR 177.2600
- Transport Package：Customized Packaging
- Specification：1"-6"
- Trademark：Velon, OEM
- Origin：China, Malaysia, etc.
- HS Code：40093100
- Production Capacity：1000, 000 M,Year
Description
B.P.N.P. MBR Weight Length (inch) (mm) (mm) (bar) (psi) (bar) (psi) (bar) (mm) (kg/m) (m) 1" 25 36 10 150 30 450 0.9 80 0.7 60 1-1/4" 32 43 10 150 30 450 0.9 100 0.82 60 1-1/2" 38 49 10 150 30 450 0.9 115 1.14 60 2" 51 63 10 150 30 450 0.9 150 1.79 60 2-1/2" 64 75 10 150 30 450 0.9 180 2.17 60 3" 76 90 10 150 30 450 0.9 225 3.03 60 4" 102 114 10 150 30 450 0.9 350 3.67 60 5" 127 146 10 150 30 450 0.9 450 6.05 60 6" 152 172 10 150 30 450 0.9 530 7.02 60
Product Parameter
1. Tube
Food grade smooth tube,white NBR rubber, oil resistant, 100% phthalates free
2. Reinforcement
High tension synthetic textile, helix steel wire support
3. Cover
Blue fabric impression cover, NBR rubber, oil resistance, abrasion resistance, aging and wear resistance
4. Temperature range
-30˚C to + 100˚C ( Remark: for steam application, temperature should be no more than 130˚C , last no more than 20min)
5. Advantage
The white and smooth tube rubber of food quality can effectively inhibit the growth of bacteria. Hose with good flexibility and characteristic of anti twist, wear resistance, anti fouling and etc. At a temperature no more than +130˚C , detergent and steam can be transfered for disinfect.
6. Standards
FDA 21 CFR 177.2600
7. Applications
The hard wall food hose designed for vacuum resistance application, which is suitable for many kinds of food products, such as milk, beer, vegetable oil, other edible oil, grease, etc.. It is widely used for liquid food transportation tanker, food processing and filling workshop. Can be used as ventalition line ( not suitable for compressor pipe ) of tank car to transfer product with a temperature of up to 120˚C . The inner rubber is smooth, sanitary and food qualit y rubber, taste free and odorless.
Teams and Package and delivery
Our professional hose design team provide customers with tailor made technical support and solution such as: design, analysis, simulation, installation layout, failure analysis, support customer with completely bespoke service of products selection, optimize product structure, improve product performance to increase service life, installation guidance, operation, aftercare and re-certification.
