• Model NO.：DB-QB
• Porduction Process：Hot Casting Polyurethane Elastomer
• Benefits：Reduces Dust Leakage, Wear Resistant
• Features：Lightweight, Compact, Easy to Install
• Advantage：Factory Price, High Quality, Warranty, Experience
• Function：Prevent Material Spillage, Effective Seal
• Hardness：70 Shore a, 63 Shore a
• Bevel Edge：35 Degree or 45 Degree or Straight
• Description：Conveyor Skirt Board Rubber Sheet
• Keyword：Conveyor Skirtboard Rubber
• Certificate：ISO, CE, SGS
• Transport Package：Crates, Pallet
• Specification：15x150mm, 15x190mm, etc.
• Trademark：Debon
• Origin：China
• HS Code：3920999090
• Production Capacity：50000 Meters Per Month

Basic Info.

Model NO. DB-QB Porduction Process Hot Casting Polyurethane Elastomer Benefits Reduces Dust Leakage, Wear Resistant Features Lightweight, Compact, Easy to Install Advantage Factory Price, High Quality, Warranty, Experience Function Prevent Material Spillage, Effective Seal Hardness 70 Shore a, 63 Shore a Bevel Edge 35 Degree or 45 Degree or Straight Description Conveyor Skirt Board Rubber Sheet Keyword Conveyor Skirtboard Rubber Certificate ISO, CE, SGS Transport Package Crates, Pallet Specification 15x150mm, 15x190mm, etc. Trademark Debon Origin China HS Code 3920999090 Production Capacity 50000 Meters Per Month

Product Description

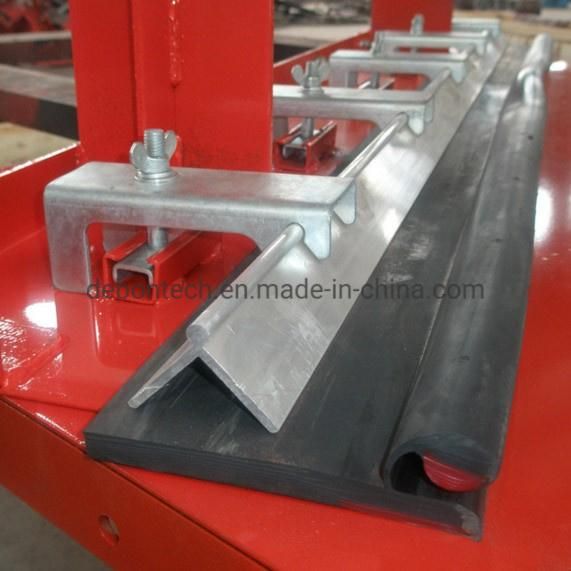

Dual Seal Pu Rubber Conveyor Skirt Board Rubber We're a manufacturer for conveyor components since 1996. Our main products include: belt cleaner, wear liner, skirt board, impact bar, pulley lagging, cord stripper, custom rubber and polyurethane products, etc.

We produce many types of conveyor skirt board for your options:
-- Double lips conveyor belt skirting
-- Flat rubber skirt board
-- Polyurethane skirt board

polyurethane rubber skirt boards conveyor belt:

Specification of polyurethane rubber skirt boards conveyor belt:
1. thickness: 15mm
2. width: 150mm/ 190mm
3. length: 24m per roll, as require

Features:
1. Double layer structure, inside layer keeps materials, outside layer prevents dust-leakage
2. The parts where contact the belt is made of polyurethane, which have longer lifetime and do not damage the belt
3. Clamp units are easy to install, adjust and maitain

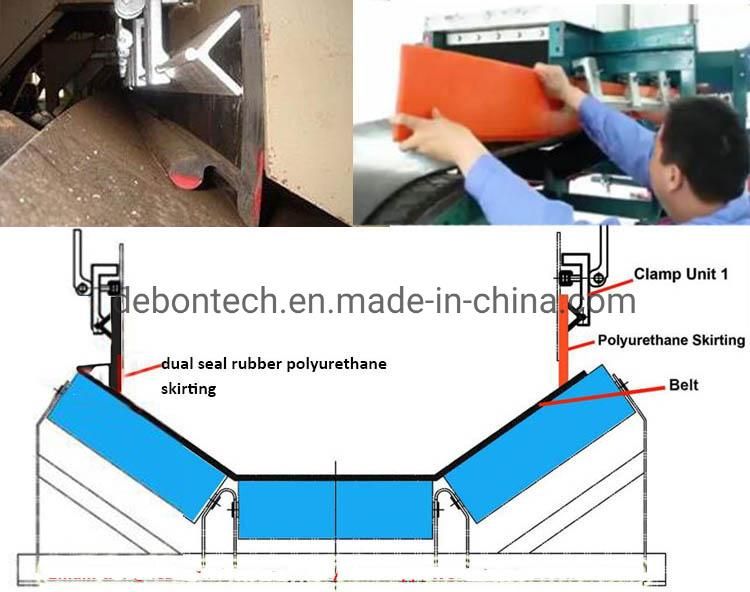

Installation Instructions:
1. Clamp units and angel bar are used together, every 1 meter needs two sets of clamp units
2. The height of skirt board can be adjusted according the dimensions of skirt chute.



Polyurethane Skirting Board

Custom size available. Poly urethane Conveyor Skirt Board is made of an extremely tough 60 65 70 80 90 Durometer Polyurethane that lasts an average of 5 times longer than rubber skirting equivalents.
Beveled edge that matches the troughing angle of your belt, eliminating the "break-in" adjustment and providing an even greater advantage

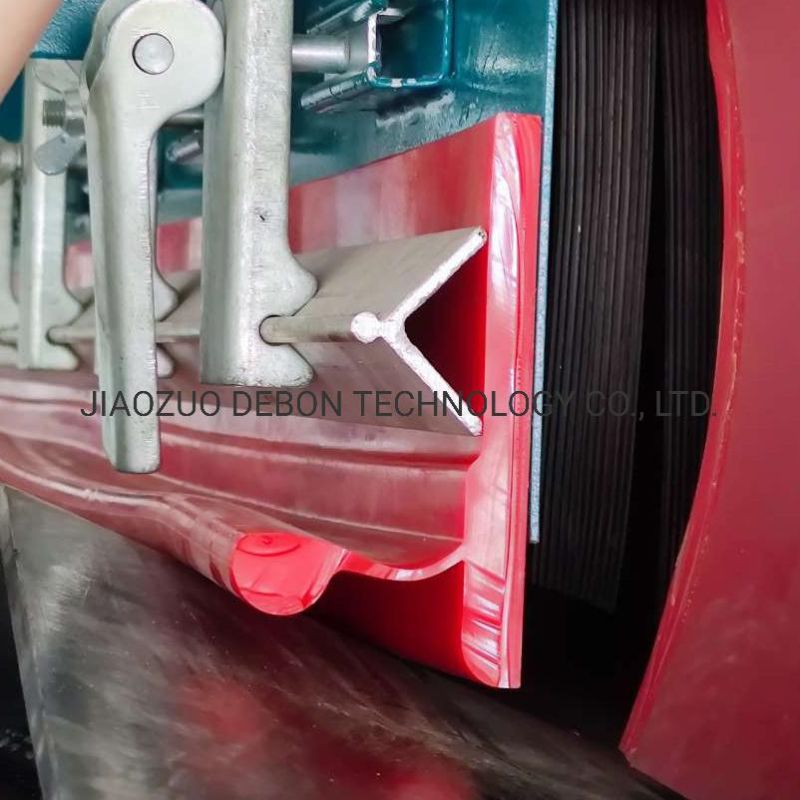

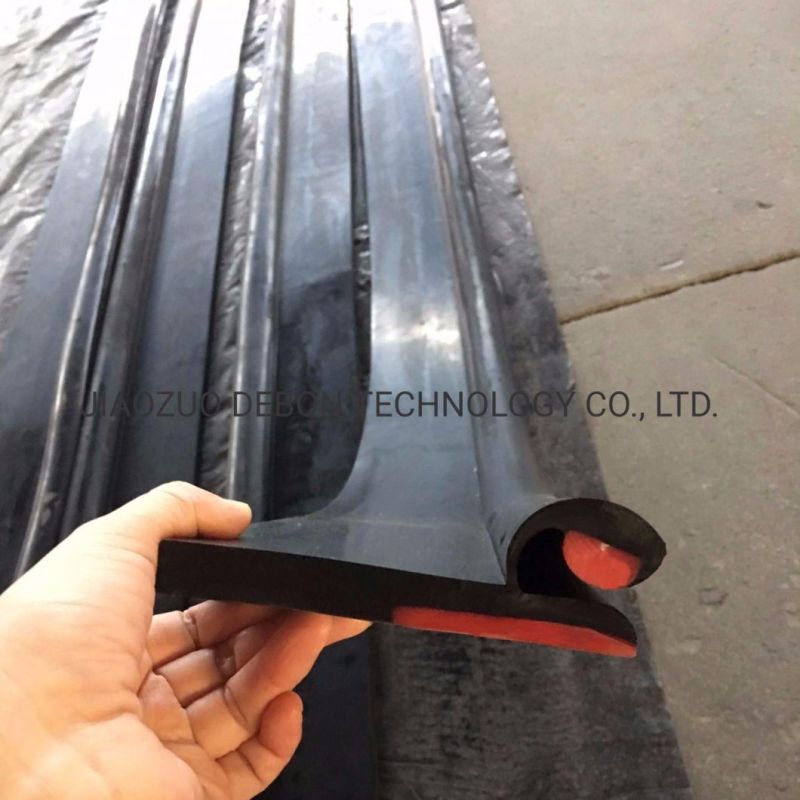

Double lip polyurethane skirting


Main Products:

Main products: various kinds of Polyurethane Sheets,Rubber sheets, Rubber Ceramic Pulley Lagging, Conveyor Belt Cleaners, impact bed / bar, Ceramic Rubber Wear Liner For Conveyor Chute,pipe,bin,hopper and other material handing equipment, custom rubber products and polyurethane products, etc.




Company Info:

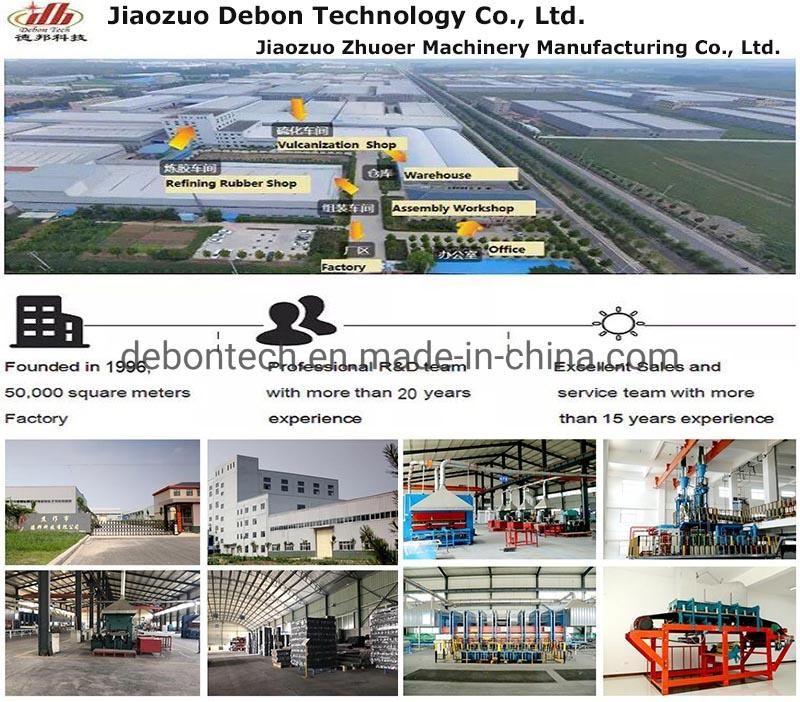

Jiaozuo Debon is a manufacturer with 126 employees, including 35 engineers. We are manufacturer specialized in designing and manufacturing Industrial Conveyor Belt Related Products. Our company is certified to ISO 9001:2008 Quality Management System, and rubber lagging products were certified to "SAFETY CERTIFICATE OF APPROVAL FOR MINING PRODUCTS".

Main Market: Southeast and Eastern Asia , Europe, South America, North America, Middle East, Africa, Oceania.






Dual Seal Pu Rubber Conveyor Skirt Board Rubber
