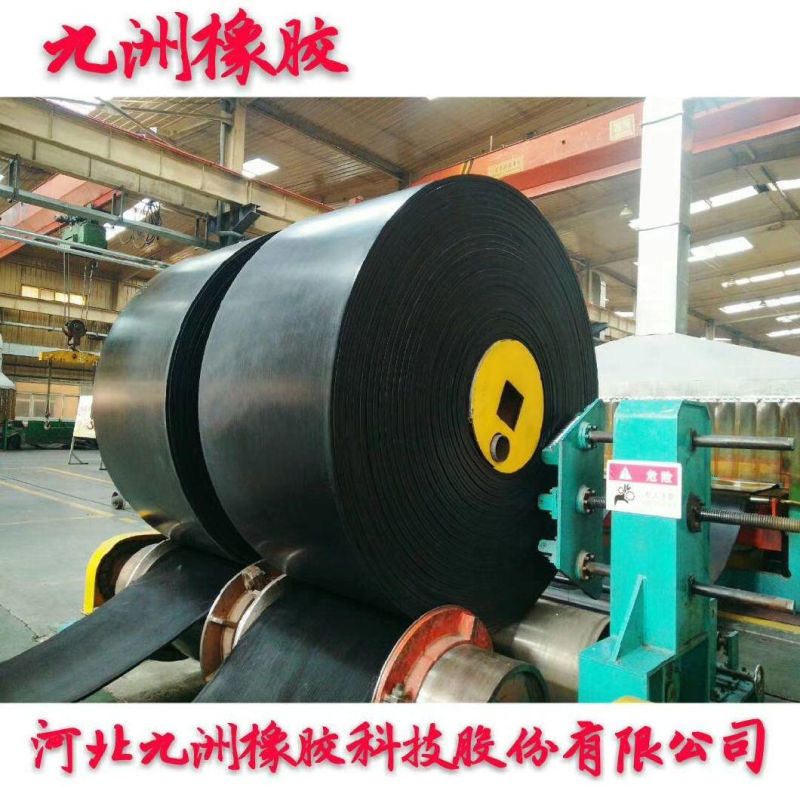

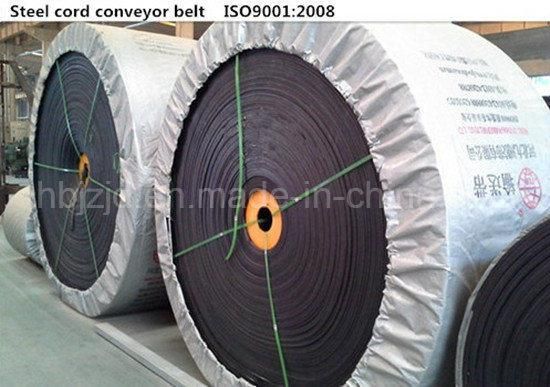

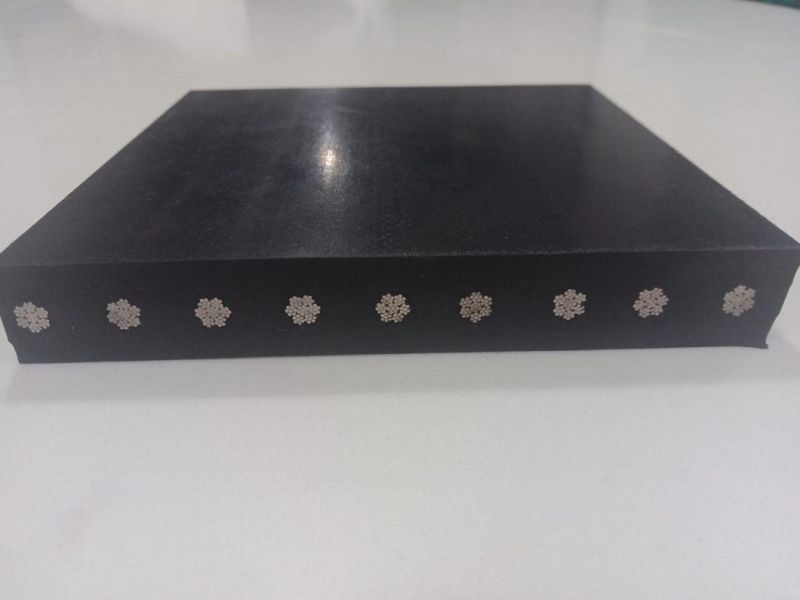

St500~St7500 Steel Cord Rubber Conveyor Belt
Hebei Jiuzhou Rubber Technology Co., Ltd.- Type：Conveyor Belt
- Feature：Wear-resistant, Heat-resistant, Tear-resistant, Flame-resistant, Cold-resistant, Acid,Alkali-Resistant
- Usage：Materials Handling
- Performance：Strong Rubber Conveyor Belt
- Colour：Black
- Width：300~2000mm
Base Info
- Model NO.：ST500~ST7500
- Thickness：3~30mm
- Tensile Strength (MPa)：8~25
- Materials：Cement, Coal Mine, Quarry, Steel, Iron etc

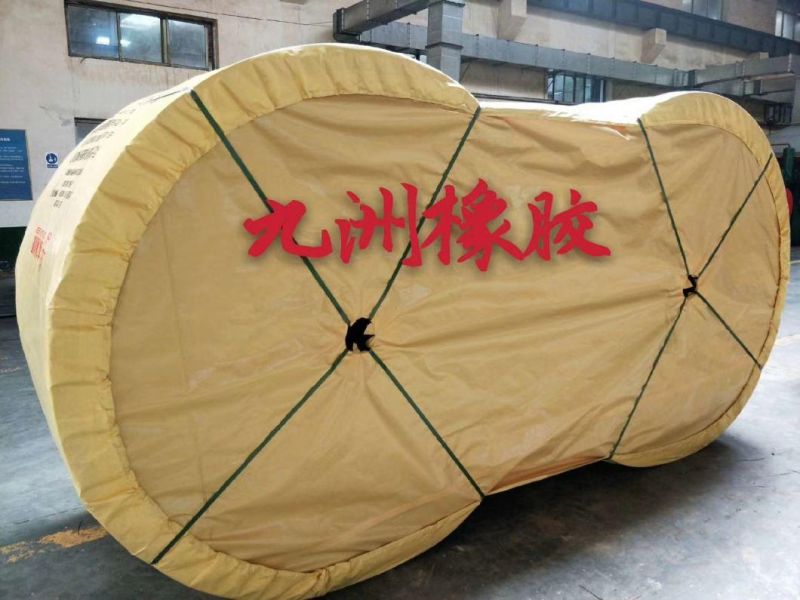

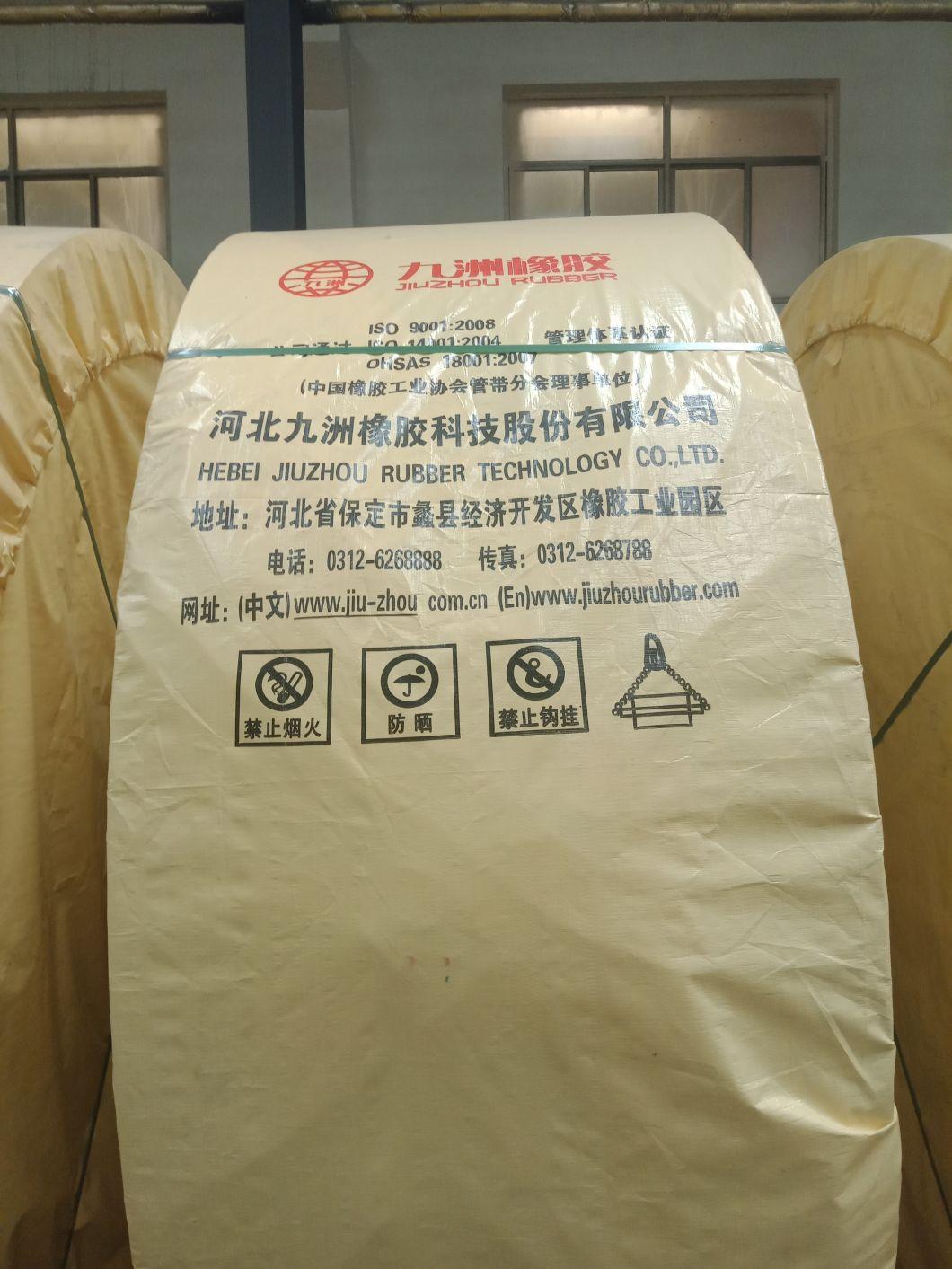

- Transport Package：Standard Packing
- Specification：GB, DIN, RMA, ISO, AS, SABS, BS
- Trademark：JIUZHOU
- Origin：Baoding City, Hebei, China
- HS Code：40101200
- Production Capacity：2000 Meters Per Day
Description
Cord Number 500 ±5 39 34 650 ±7 51 44 800 ±8 64 55 50 64 1000 ±10 81 69 64 81 64 64 64 64 59 55 55 1200 ±10 97 84 77 97 77 77 77 77 71 66 66 1400 ±12 114 98 90 114 90 90 90 90 84 78 78 1600 ±12 131 112 104 131 104 104 104 104 96 90 90 1800 ±14 147 127 117 147 117 117 117 117 109 102 102 2000 ±14 164 141 130 164 130 130 130 130 121 113 113 2200 ±15 181 155 144 181 144 144 144 144 134 125 125 2400 ±15 197 169 157 197 157 157 157 157 146 137 137 2600 ±15 214 184 170 214 170 170 170 170 159 149 149 2800 ±15 231 198 170 214 170 170 170 170 159 149 149 3000 ±15 247 212 197 247 197 197 197 197 184 172 172 3200 ±15 264 227 210 264 210 210 210 210 196 184 184
| Mining Conveyor Belt | Lump Size | Temperatrure of Materials Carried | Belt Surface Temperature |
| Coke | 100~200mm(4~8 inch) | 70~100 ºC | 50~60 ºC |
| Cement | Powder | 100~250 ºC | 80~90 ºC |
| Clinker | 10~30 mm (0.4~1.2 inch) | 100~220 ºC | 100~110 ºC |
| Molding | -- | 200~250 ºC | 80~90 ºC |
| Metal Powder | -- | 170 ºC | 120~130 ºC |
| Raw Material | below 30mm(1.2 inch) | 180~220 ºC | 100~120 ºC |
| Sintered Ore | 25~200 mm(1~8i nch) | 200~400 ºC | 130~150 ºC |
| Return of Sintered Ore | below 10mm(0.4 inch) | 260 ºC | 180~200 ºC |
