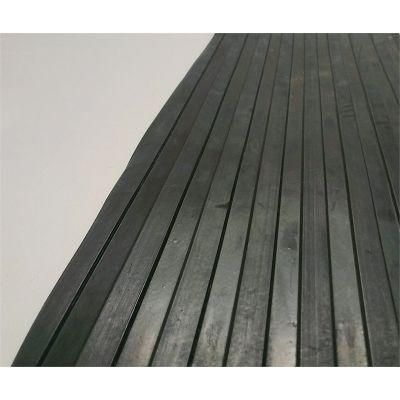

Fabric Nylon Insertion Industrial Rubber Sheet for Gasket
Nanjing Bonzer Rubber & Plastic Co., Ltd.- Material：SBR,Cr,NBR,Silicone,Vition
- Usage：Industrial
- Feature：Wear-resistant, Impact-resistant, Heat-resistant, Corrosion-resistant, Insulating
- Raw Materials：Synthetic Rubber, Pad
- Medium：EPDM
- Performance：Oil-Resistant Rubber Slab
Base Info
- Model NO.：Insertion
- Color：Black Rubber Sheet
- Clearance：Black
- Tensile S：3~20MPa
- Density：1.7~1.2G,M3
- Thickness：1.5~30mm
- Width：Max.2.8m
- Sha：60~70
- Design：Smooth,Fabric
- Cetificate：ISO9001, ISO14001
- Fire Resistance：Yes,No
- Use in：Gasket, Warehouse, etc
- Lead Time：7~10days
- Packing：by Roll or Mat
- Matrial：Solid Rubber
- Speicial Order：Yes
- Back：Smooth or Fabric
- Transport Package：Roll
- Specification：1.5mm~100mm
- Trademark：Bonzer Rubber
- Origin：Xuancheng
- HS Code：4002800000
- Production Capacity：10000tons,Year
Description
Red/Yellow/Blue/Green etc1/32"~2" 36"~80" 6'/30'/50'/100'
Optional Material:
Related Material
COMPANY PROFILE
Bonzer Rubber is one of the most professional production bases of industrial rubber sheet in China. It is a high-tech enterprise that produces special rubber sheet series, industrial rubber sheet series, skid-proof fitness series and other rubber products
The company has strong technical force, a high level of professional research team, long-term cooperation and exchanges with relevant universities and research institutes, and constantly develop new products to meet the needs of different users. And in strict accordance with national standards and user requirements, combined with enterprise ISO 9001, ISO 14001, management system standards to organize production.
The company has more than 300 employees and has the right to import and export by itself. The company's production base covers an area of about 50,000 square meters and has more advanced production technology in China. The main production equipment includes different types of rubber mixers, flat vulcanizer, drum vulcanizer and supporting equipment, more than 20 sets of more advanced research and development and testing equipment, and a large production base with annual production of rubber flat plates of various specifications up to 10,000 tons.
Product including the below series:
Rubber sheet -SBR/CR/NBR/EPDM/Viton/NR
Silicone Rubber Sheet
Cow mat/Horse mat
Anti-fatigue Series
Gym Mat series
Anti-slip Rubber & PVC Mat

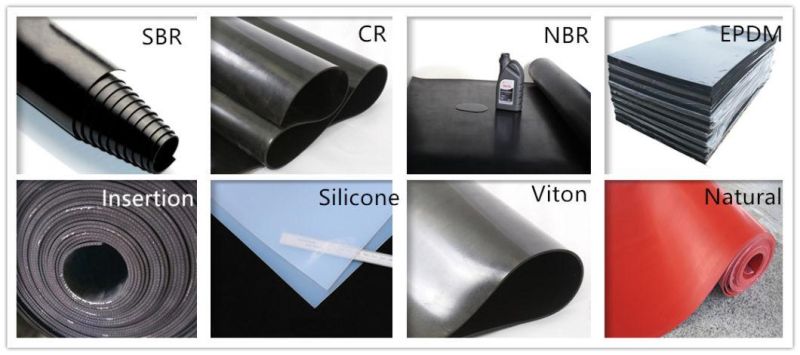

Optional Material:
| Material | Hardness | Gravity (G/cm3) | Tensile | Elongation | Temp- Range |
| Economic Grade SBR | 70±5 SHA | 1.7 ±0.05 | 2.5Mpa | 200% | 0~60 |
| Commercial Grade SBR | 65±5 SHA | 1.5 ±0.05 | 4Mpa | 200% | -25~70ºC |
| Economic Grade CR | 65±5 SHA | 1.45 ±0.05 | 4Mpa | 200% | -20~75ºC |
| Commercial Grade CR | 65±5 SHA | 1.45 ±0.05 | 5Mpa | 250% | -20~80ºC |
| Commercial Grade CR | 50±5 SHA | 1.45 ±0.05 | 5Mpa | 250% | -30~100ºC |
| Economic Grade NBR | 65±5 SHA | 1.45 ±0.05 | 4Mpa | 200% | -25~75ºC |
| Commercial Grade NBR | 65±5 SHA | 1.45 ±0.05 | 5Mpa | 250% | -25~90ºC |
| Economic Grade EPDM | 65±5 SHA | 1.45 ±0.05 | 4Mpa | 200% | -30~90ºC |
| Economic Grade EPDM | 45±5 SHA | 1.3 ±0.05 | 5Mpa | 250% | -40~130ºC |
| FKM | 65±5 SHA | 2 ±0.05 | 6Mpa | 350% | -30~250ºC |
| Silicone | 60±5 | 1.25±0.05 | 6~7MPa | 300% | -60~200ºC |
| Silicone | 70±5 | 1.25±0.05 | 6~7MPa | 250% | -60~200ºC |
