Factory Price Wire Steel Braided Hydraulic Hose Assembly 4sp 4sh R9 R12 R13 R15
Yinchuan Tiger Rubber and Plastic Co., Ltd.- Material：Nr, SBR, NBR, Cr, EPDM etc Rubber
- Capability：for Petroleum, Air, Oil Fuel, Water etc
- Color：Blue Yellow Green Black Red
- Size：1,4, 5,16, 3,8, 1,2, 5,8, 3,4, 1, 1,1,4, 1,1,2, 2
- Working Pressure：50-500 Bar
- Type：R1. R2. R3. R4. R5. R6. R7. R8. R9. R14. R16. R17
Base Info
- Standard：GB,DIN,SAE,En
- Tube：Oil Resistant Synthetic Rubber
- Reinforcement：High Tensile Steel Wire Braid
- Cover：Abrasion and Weather Resistant Synthetic Rubber
- Surface：Smooth or Wrapped
- Transport Package：PP Woven Bag or as Customized
- Specification：5-51mm, 3,16′′ - 2′′
- Trademark：OEM
- Origin：China
- HS Code：4009210000
- Production Capacity：700000 Meters One Month
Description
DNHose I.D Wire O.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight Length inch mm mm mm MPa psi MPa psi mm kg/m meters 5 3/16 4.8 9.5 11.8 25.0 3630 100.0 14280 89 0.19 50/100 6 1/4 6.4 11.1 13.4 22.5 3270 90.0 12840 102 0.21 50/100 8 5/16 7.9 12.7 15.0 21.5 3120 85.0 12280 114 0.24 50/100 10 3/8 9.5 15.1 17.4 18.0 2615 72.0 10280 127 0.33 50/100 13 1/2 12.7 18.3 20.6 16.0 2320 64.0 9180 178 0.41 50/100 16 5/8 15.9 21.4 23.7 13.0 1890 52.0 7420 203 0.45 50/100 19 3/4 19.0 25.4 27.7 10.5 1530 42.0 6000 241 0.58 50/100 25 1 25.4 33.3 35.6 8.8 1280 35.0 5020 305 0.88 50 32 1 1/4 31.8 40.5 43.5 6.3 920 25.0 3600 419 1.23 20 to 40 38 1 1/2 38.1 46.8 50.6 5.0 730 20.0 2860 508 1.51 20 to 40 51 2 50.8 60.2 64.0 4.0 580 16.0 2280 635 1.97 20 to 40
2, SAE 100 R2 AT / DIN EN 853 2SN HTDNHose I.D Wire O.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight Length inch mm mm mm MPa psi MPa psi mm kg/m meters 5 3/16 4.8 11.1 13.4 41.4 6000 16 23720 89 0.32 50/100 6 1/4 6.4 12.7 15.0 40.0 5800 160 22840 102 0.36 50/100 8 5/16 7.9 14.3 16.6 36.0 5250 140 20000 114 0.45 50/100 10 3/8 9.5 16.7 19.0 33.1 4800 132 18840 127 0.54 50/100 13 1/2 12.7 19.8 22.2 27.6 4000 110 15720 178 0.68 50/100 16 5/8 15.9 23 25.4 25.0 3630 100 14280 203 0.8 50/100 19 3/4 19.0 27 29.3 21.5 3120 85 12280 241 0.94 50/100 25 1 25.4 34.9 38.0 16.5 2400 65 9420 305 1.35 50 32 1 1/4 31.8 44.5 48.3 12.5 1820 50 7140 419 2.15 20 to 40 38 1 1/2 38.1 50.8 54.6 9.0 1310 36 5140 508 2.65 20 to 40 51 2 50.8 63.5 67.3 8.0 1160 32 4560 635 3.42 20 to 40
3, DIN EN 856 4SPDNHose I.D Wire O.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight Length inch mm mm mm MPa psi MPa psi mm kg/m meters 10 3/8 9.5 17.5 21.4 44.5 6450 180.0 26000 180 0.78 20 to 40 13 1/2 12.7 20.2 24.0 41.5 6000 166.0 24000 230 0.89 20 to 40 16 5/8 15.9 23.8 28.2 35.0 5000 140.0 20000 250 1.11 20 to 40 19 3/4 19.0 28.2 32.2 35.0 5000 140.0 20000 300 1.59 20 to 40 25 1 25.4 35.5 39.7 28.0 4000 112.0 16000 340 2.02 20 to 40 32 1 1/4 31.8 46.0 50.8 21.0 3000 84.0 12000 460 3.32 20 to 40 38 1 1/2 38.1 52.4 57.7 18.5 3650 74.0 10800 560 3.70 20 to 40 51 2 50.8 65.3 69.6 16.5 2360 66.0 9600 660 5.47 20 to 40
4, DIN EN 856 4SHDNHose I.D Wire O.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight Length inch mm mm mm MPa psi MPa psi mm kg/m meters 19 3/4 19.0 28.4 32.0 42.0 6000 168.0 24000 280 1.61 20 to 40 25 1 25.4 35.2 38.6 38.0 5500 152.0 22000 340 2.00 20 to 40 32 1 1/4 31.8 41.9 45.8 32.5 4700 130.0 18800 460 2.64 20 to 40 38 1 1/2 38.1 48.8 53.3 29.0 4200 116.0 16800 560 3.36 20 to 40 51 2 50.8 63.2 68.1 25.0 3600 100.0 14400 700 4.98 20 to 40
Our Products Range:
1. Hydraulic Hose
Steel wire braided hose, Steel wire spiral hose, Texible braided hose
2. Industrial Hose:
Smooth(Wrapped) Air/Water/Oil/Gas/Lpg hose, Welding hose, Oxygen hose, Acetylene hose,
Lpg hose/Propane hose, Twin hose, Oil/Water suction and discharge hose, Steam hose, Sandblast hose,
Large diameter hose etc.
3. Automotive Hose
Air brake / condition hose, Power steering hose, Fuel oil hose,
4. PVC Hose
5. Hose Fitting / Coupling / Ferrule
6. Hose Machine
Application Field:
For engineering machinery, port machinery, aerospace, car manufacture, machine tool manufacturing, wind power manufacturing, shipbuilding industry, engine, textile machinery, petrochemical, agricultural machinery, mining machine, construction machinery, special vehicle, matall urgical machinery, injuction food machinery, printing machine, railway, hydraulic system, water conservancy construction

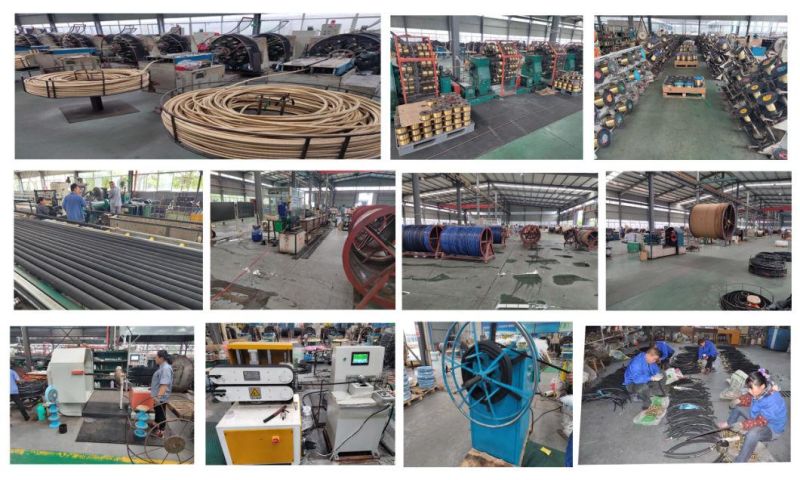

Workshop Show:
≡ FAQ
Q: Do you produce smooth or cloth wrapped cover?
A: Yes, we can produce both cover, which depends on customer's request.
Q: Can you produce product with my own brand?
A: Yes, OEM or ODM is warmly welcome by our company. Hope we both parties will benefit a lot through the cooperation.
Q:Could we get free samples?
A: Yes. We can provide the free sample for you
Q: Does your product have different color hose?
A: Yes, we currently provide black, grey, red, blue and yellow.
Q:Could you crimp hose?
A: Yes, we can crimp hose assembly for our customers
Q: How long does my order take to be delivered?
A: It usually takes 5 to 30 days, which generally depends on the quantity of your order and our storage.
If you are interested in our products or if you have special requirements,
Welcome to Contact Us With Any Enquiries!
