• Model NO.：DB-TCM-I, DB-TCM-II, DB-TCM-III
• Color：Black Rubber Sheet
• Ceramic Shape：Cylindrical,Hexagonal & Rectangular
• Ceramic Size：Variuos Size & Thickness
• Product Material：95+,-1%
• Ceramic Hardness：Mohs9
• Rubber：Nr
• Peel Strength：>800n,Cm
• Steel Mild Plate：Q235A
• Certificate：ISO9001:2008,SGS
• Application：Hopper,Chutes,Bins,Lining Pipe,Side Bar,Deck Plate
• Transport Package：Pallet
• Specification：300x300, 500x500
• Trademark：ZHUOER
• Origin：Jiaozuo, China
• HS Code：6909120000
• Production Capacity：10000 PCS,Month

Basic Info.

Model NO. DB-TCM-I, DB-TCM-II, DB-TCM-III Color Black Rubber Sheet Ceramic Shape Cylindrical,Hexagonal & Rectangular Ceramic Size Variuos Size & Thickness Product Material 95+/-1% Ceramic Hardness Mohs9 Rubber Nr Peel Strength >800n/Cm Steel Mild Plate Q235A Certificate ISO9001:2008,SGS Application Hopper,Chutes,Bins,Lining Pipe,Side Bar,Deck Plate Transport Package Pallet Specification 300x300, 500x500 Trademark ZHUOER Origin Jiaozuo, China HS Code 6909120000 Production Capacity 10000 PCS/Month

Product Description

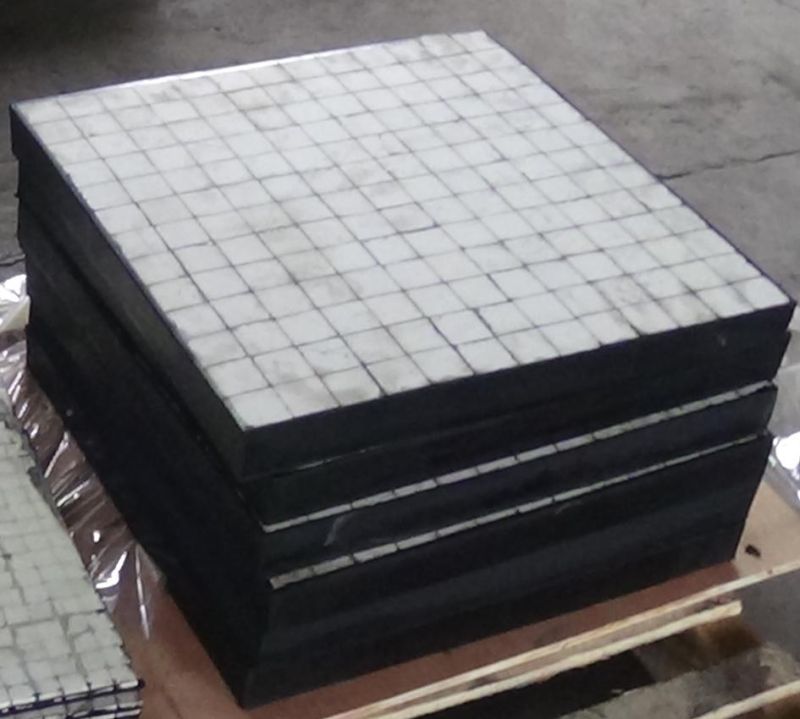

Wear and Abrasion Resistant Rubber Ceramic Tile Mats
Features of  rubber backed ceramic mats:

1. combine energy absorbing rubber and excellent abrasion resistant high alumina ceramic, suitable for high wear and impact applications.

2. custom shapes and sizes to meest your specific requirements, standard liners and non-standard ones are all available.

3. complete wear and abrasion solutions

4. manufacturer with rich experience, good bond between rubber and ceramic, ceramics stay in place until completely worn.

5. wide range of rubber ceramic mats to meet your different requirements.



Product Description:

High wear resistant rubber backed ceramic tile mats are embedding high alumina ceramic into energy absorbing rubber or urethane cushion, and bond both to steel backing plate via hot vulcanizing for easy installation.

Impact-absorbing rubber cushions helps reduce impact energy and prevent ceramic tiles breakage,

Steel backing plate with studs for easy installation.










Application:



High wear resistant rubber ceramic liners are suitable for applications in areas of severe impact and areas of high abrasion.

High alumina ceramic deliver extra abrasion resistance and extend wear life.

High alumina ceramic:

  1. Aluminium Oxide: al2o3>92%

  2.Specific gravity of ceramic        3.6 g/cm³

   3.Hardness(Moh's)                        > 9 t





Applications of rubber ceramic chute ceramic liner:



   * conveyor chutes

   * reflectors and impact plate

   * bins, hoppers

   *conveyor skirt liners

   * stackers and reclaimers



TCM chute wear protection rubber ceramic liner:



We specialize in manufacturing alumina ceramic wear liners, experience makes sure high quality, advanced technology, excellent bonding strength.



Our rubber alumina ceramic liners have been exported to many countries, high quality have been approved.





Abrasion resistant rubber ceramic wear liner selection chart:



Specification (mm)	Thickness of ceramic (mm)	Thickness of rubber (mm)	Thickness of steel backing plate	Total thickness (mm)
300x300x36	Φ21x21	9	6	36
300x300x50	Φ31x31	13	6	50
250x250x36	Φ21x21	9	6	36
250x250x50	Φ31x31	13	6	50
250x250x18(17.5x17.5x8)	7	5	6	18





Special Dimendions and Shapes to order.

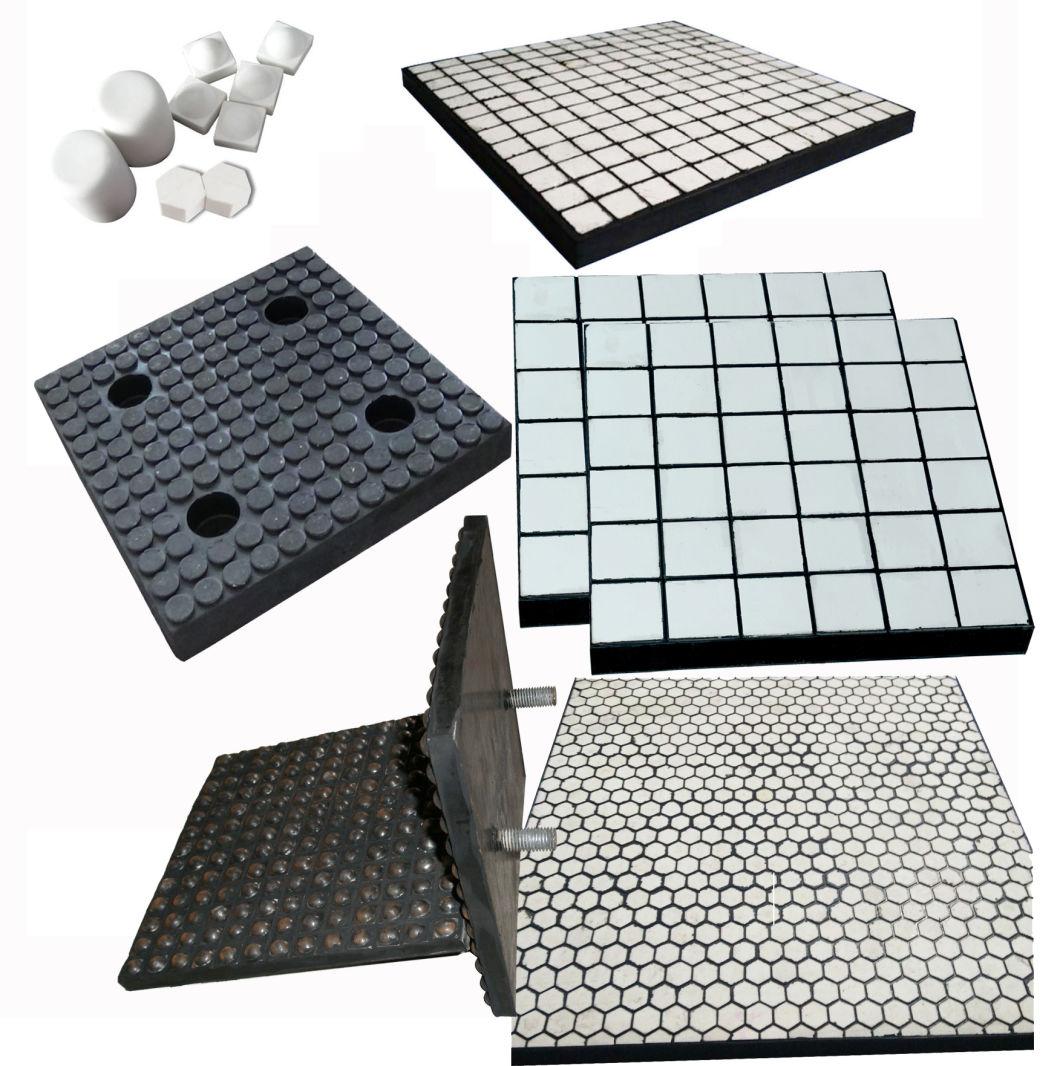

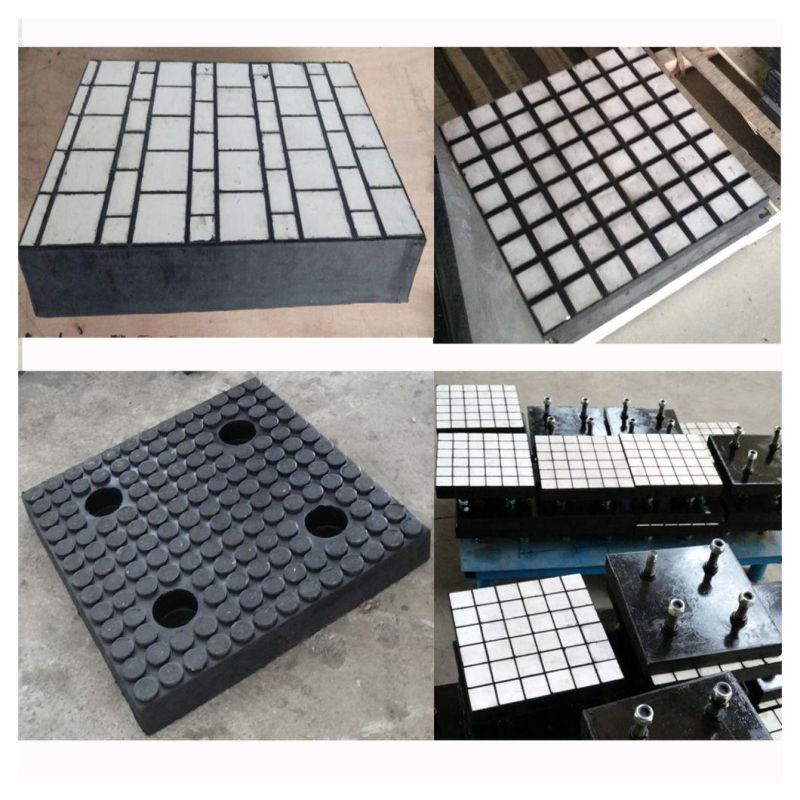

 Abrasion resistant rubber alumina ceramic wear liner with ceramic cylinders, rubber ceramic wear panel

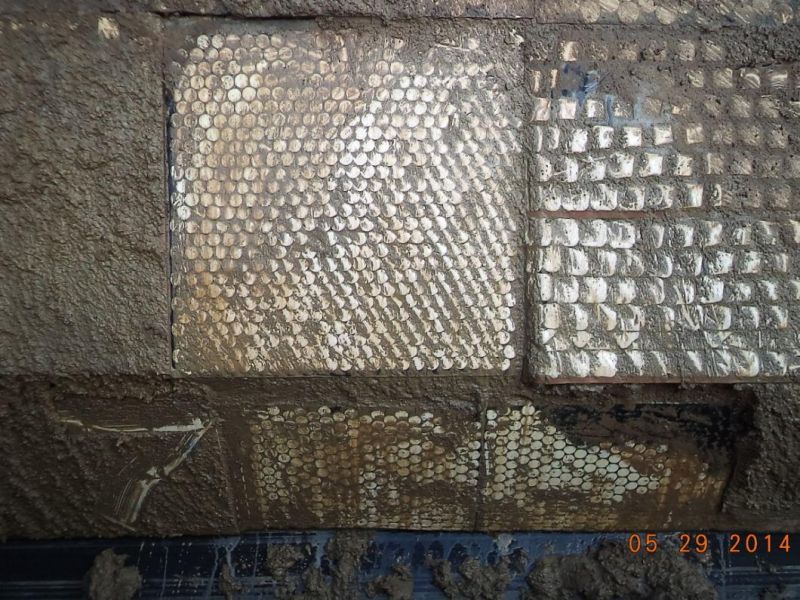

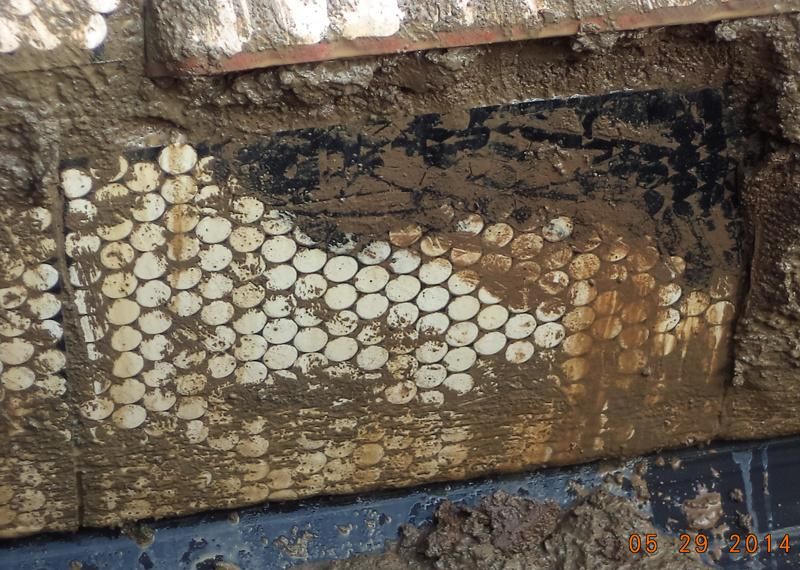

abrasion resistant rubber alumina ceramic liners on site:





Company Introduction:



 We are a manufacturer specialized in designing and manufacturing wear resistant products,ceramic liner, rubber lining, polyurethane lining , conveyor accessories, etc. Our products are widely used in bulk material handling industries including coal mine, steel plant, power generation, cement plant, metallurgy, chemical and other fields.





Export:

Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be approved by our clients.





More information about abrasion resistant rubber alumina ceramic liners, send us inquiry please.

We welcome you to visit our factory all the time.
