• Model NO.：HY-E610
• Sample：Available
• Minimum Order Quantity：200 Kilogram
• Purity：100%
• Certifications：RoHS, MSDS, SGS, ISO9001:2000
• Type：Condensation Silicone Rubber
• Mixing Ratio：100:5
• Pot Life/Working Life：30-40 Minutes
• Transport Package：25kg,Drum, 200kg,Drum
• Specification：SGS. ROHs. MSDS. ISO9001
• Trademark：Hong Ye Silicone rubber
• Origin：China
• HS Code：39100000
• Production Capacity：8 Tons Per Day

Basic Info.

Model NO. HY-E610 Sample Available Minimum Order Quantity 200 Kilogram Purity 100% Certifications RoHS, MSDS, SGS, ISO9001:2000 Type Condensation Silicone Rubber Mixing Ratio 100:5 Pot Life/Working Life 30-40 Minutes Transport Package 25kg/Drum, 200kg/Drum Specification SGS. ROHs. MSDS. ISO9001 Trademark Hong Ye Silicone rubber Origin China HS Code 39100000 Production Capacity 8 Tons Per Day

Product Description

rtv silicone medical rubber for silicone insole pads

Specification:
·1:1 mix ration by weight
·Free of solvents
·Pourable
·Good self leveling characteristics
·No release products
·Fast cure at elevated temperatures

Typical Physical Properties

Product	E 610
Appearance	Translucent
Hardness(shore A)	10
Mix ratio(A:B)	1:1
Viscocity of component A	4500
Viscocity of component B	4500
Mixed Viscocity(mPa.s)	9000
Tensile strength (kgf/cm2)	45±5
Tear-strength  (kN/m)	12±2
Elongation(%)	600
Pot life/working time (mins)	30-40
Curing time/setting time (hrs)	3-4hrs(25ºC) 110-20mins(60ºC)
Shrinkage rate (%)	0.1





Using instructions:
1. Applicable to the injection molding process
2. Mixing component A with B evenly according its mix ratio, it is ready for use after degassing.
3. The curing time is subject to the temperature, short time will be required under high temperature, long time will be required while the product with large thickness.

Notice :
As our E-series silicone is platinum cure silicone , which is very easy to cause
cure inhibition , so please do remember thoroughly clean the model and tool before
operation . Besides , please avoid the liquid E-series silicone contact or mix with the
following material , otherwise the silicone won't be cured :
1. Liquid condensation silicone ( condensation silicone not completely cured or organic
tin compounds )
2 .Sulphur, sulfide and sulfur rubber materials.
3. Amine compounds as well as contains the amine materials.
4 .Pewter solder flux.

SHELF LIFE:
12 months when stored under 24ºC in original unopened packages.

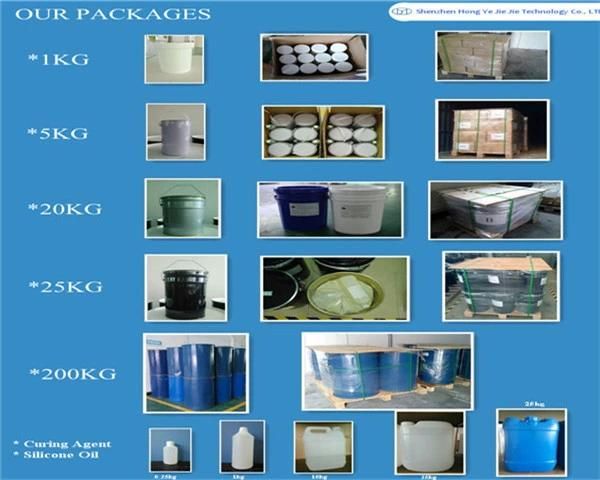

PACKAGE:
1kg/drum, 5kg/drum, 20kg/drum, 25kg/drum, 200kg/drum



 More info on rtv silicone medical rubber for silicone insole pads, pls contact Mickey:
