Corrugated Sidewall Conveyor Belt in China
Shandong Longli Belts Co., Ltd.- Type：Conveyor Belt
- Feature：Wear-resistant, Heat-resistant, Tear-resistant, Flame-resistant, Cold-resistant
- Material：Rubber & Fabric
- Application：Metallurgy, Chemicals, Agriculure
- Supply Ability：10000 Meter Per Month
- Transport Package：International Packing
Base Info
- Model NO.：Corrugated Sidewall
- Specification：ISO, CE OR OEM
- Trademark：SHUOLONG
- Origin：Shandong, China
- HS Code：4010190000
- Production Capacity：20000meter,Month
Description

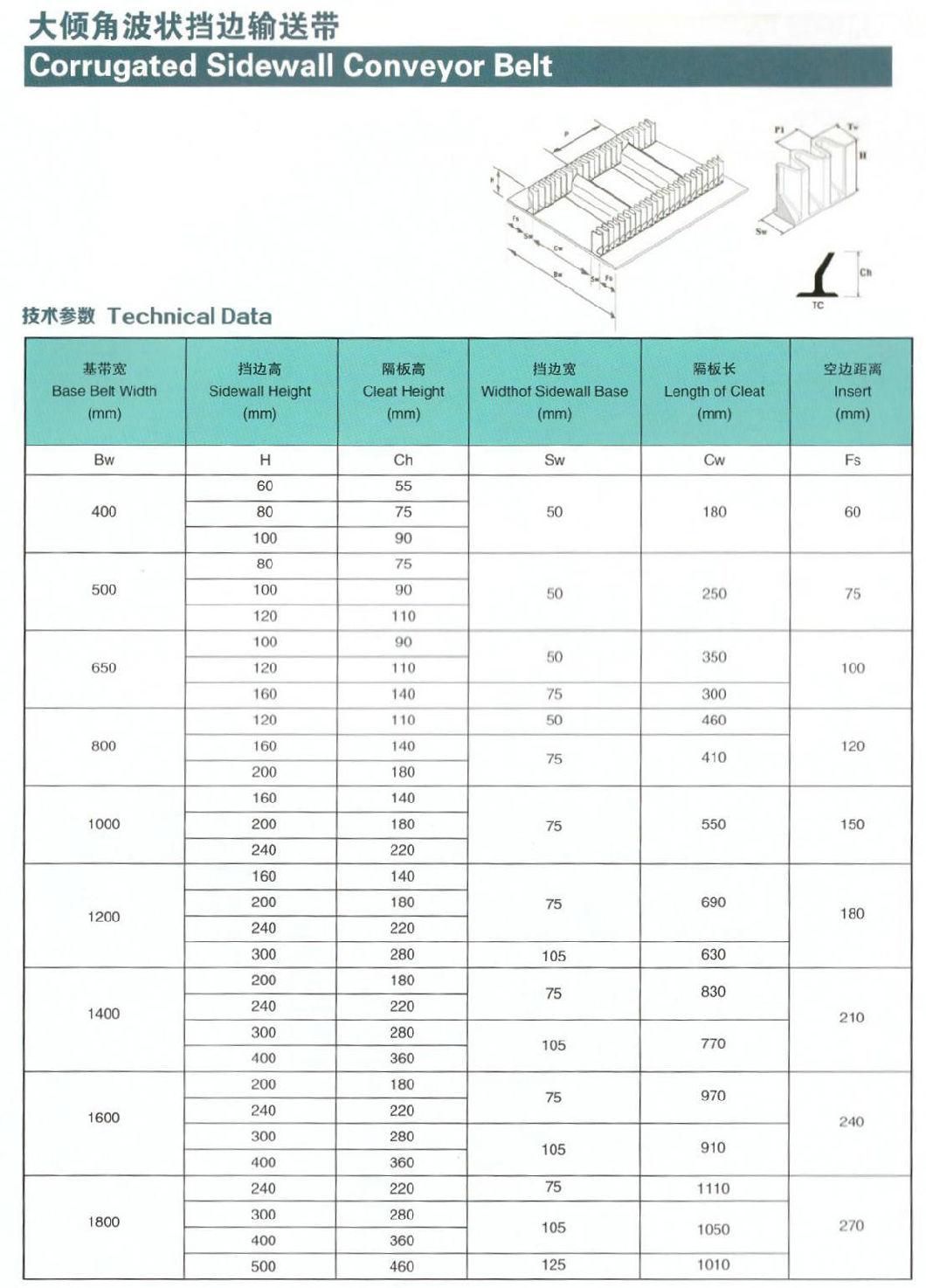

Belt width (mm)Sidewall height (mm)Cleat height (mm)Effective belt width (mm)40060 -80701009012010050060 25080701009012011016014065060 250, 300, 35080701009012011016014020018080060 350, 410, 460807010090120110160140200180240220100060 460, 550, 640, 690,807010090120110160140200180240220300270120060 460, 550, 640, 690807010090120110160140200180240220300270
2.Features:
Good flexibility, groove formation property and cost-effective. It is mainly used to transport powder,small and medium granular or less wearing materials at common temperature.
3.Application:
Applicable to long-distance, high capacity, high-speed delivery of materials under the conditions.

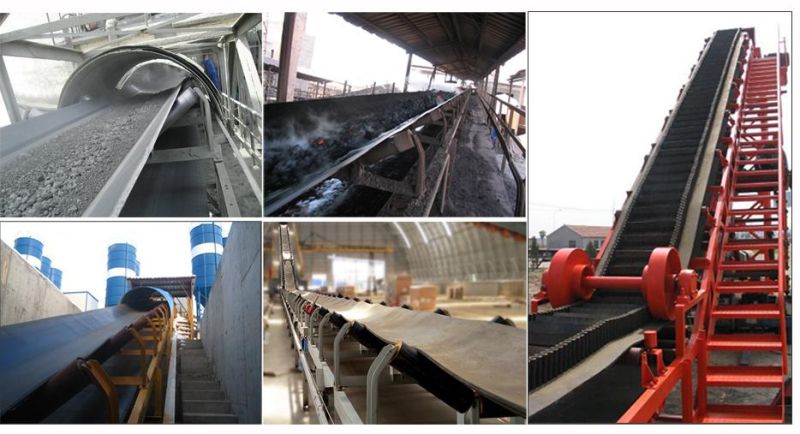

Used in mining, quarries, chemical plants, architectural industry and etc.
2. Sructure
-Sidewall conveyor belt consists of base belt, sidewalls and cleats. There are usually transverse steel wire reinforcement inside top & bottom covers of the base belt.

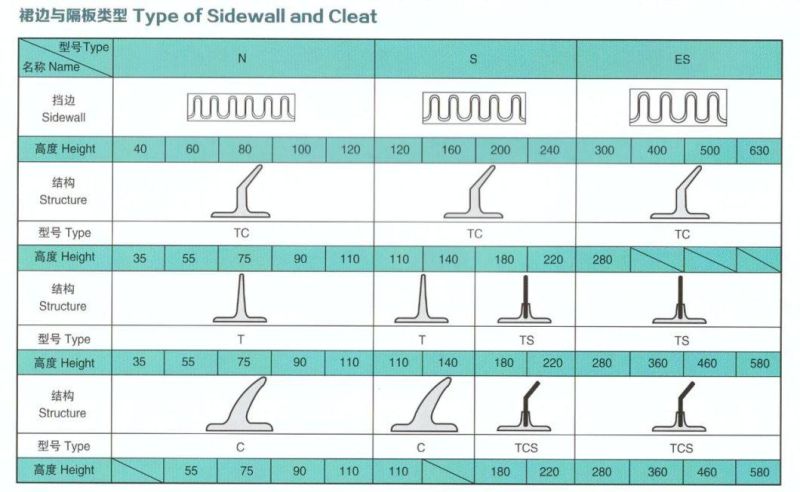

-Cleat types: TC
The cleat is made of enforced fabric, solid, anti-shock to avoid distortion.
"TC" normally used from 0 degree to 90
3. Standard: GB/T7984, HG/T4602, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc
Application
1.Standards:
GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc
2.Features:
Good flexibility, groove formation property and cost-effective. It is mainly used to transport powder,small and medium granular or less wearing materials at common temperature.
3.Application:
Applicable to long-distance, high capacity, high-speed delivery of materials under the conditions.
Used in mining, quarries, chemical plants, architectural industry and etc.
