• Model NO.：TB-654
• Standards：FDA,GB
• Transport Package：Standard
• Specification：FDA, SGS
• Trademark：Kanglong
• Origin：Hebei China
• HS Code：3917390000
• Production Capacity：100000 Meters Per Week

Basic Info.

Model NO. TB-654 Standards FDA/GB Transport Package Standard Specification FDA, SGS Trademark Kanglong Origin Hebei China HS Code 3917390000 Production Capacity 100000 Meters Per Week

Product Description

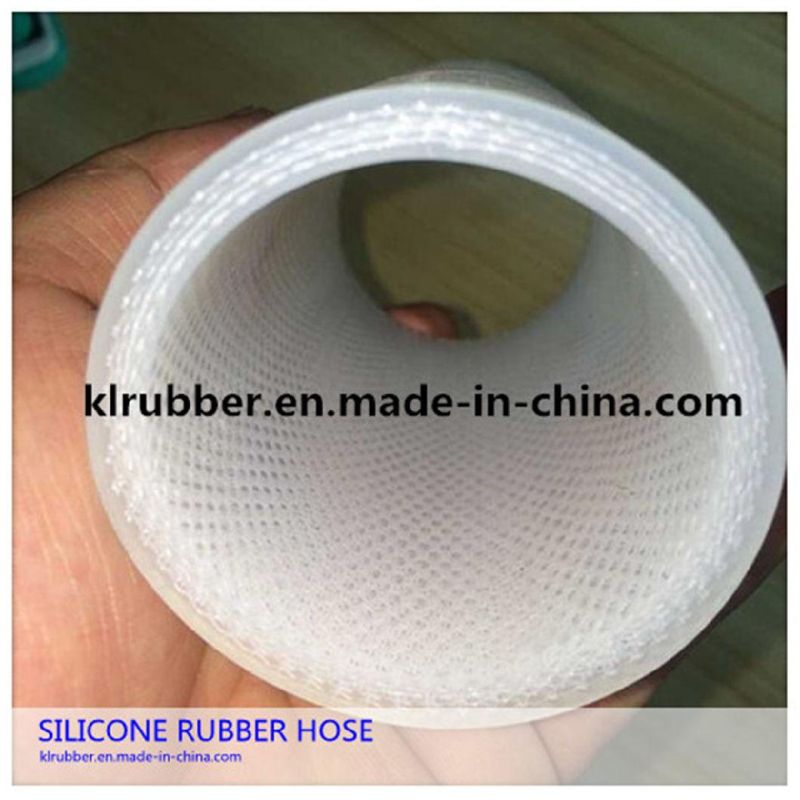

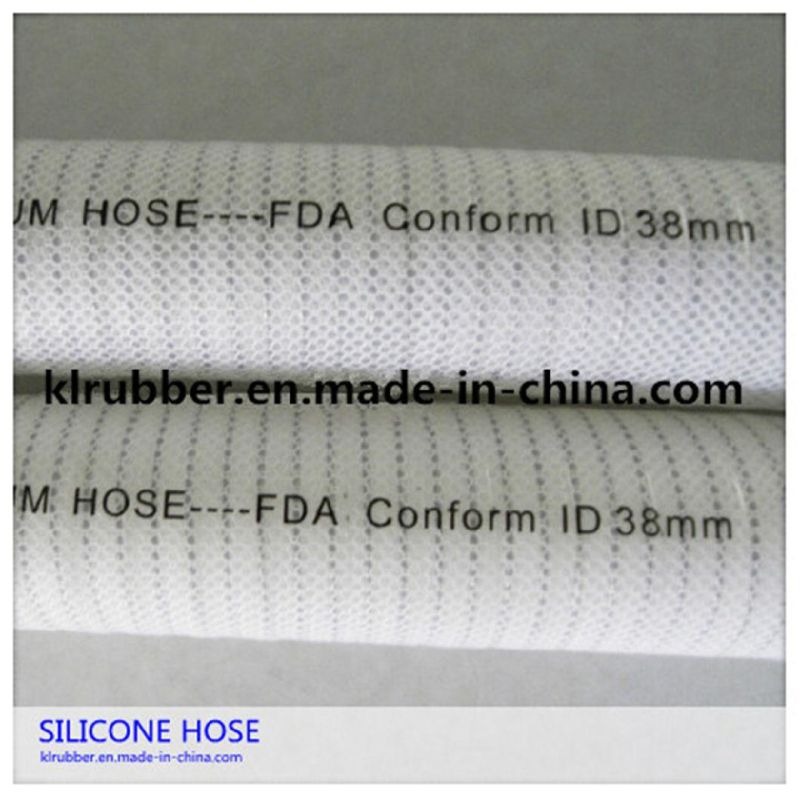

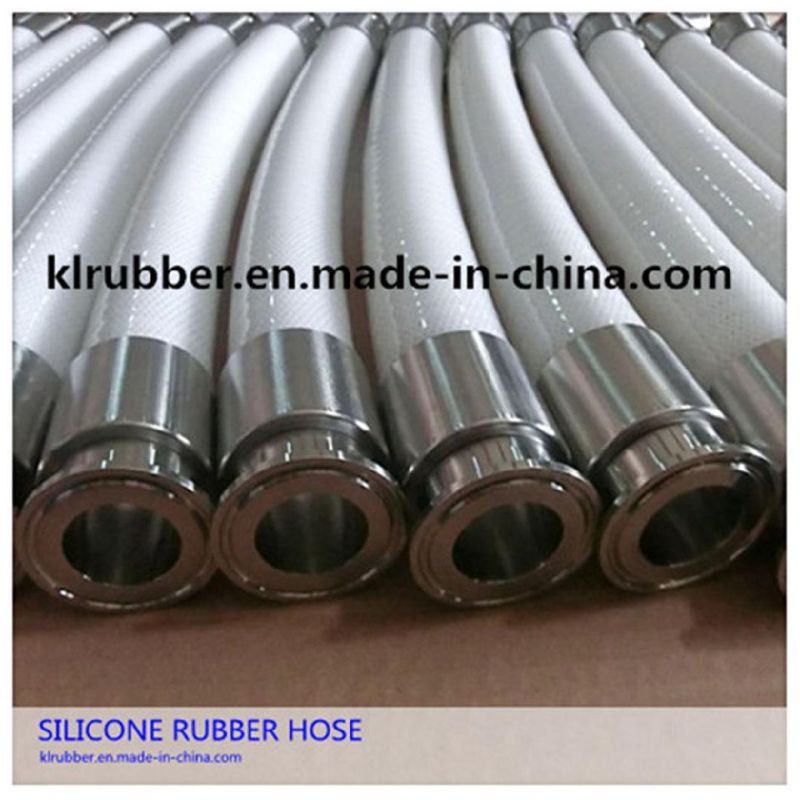

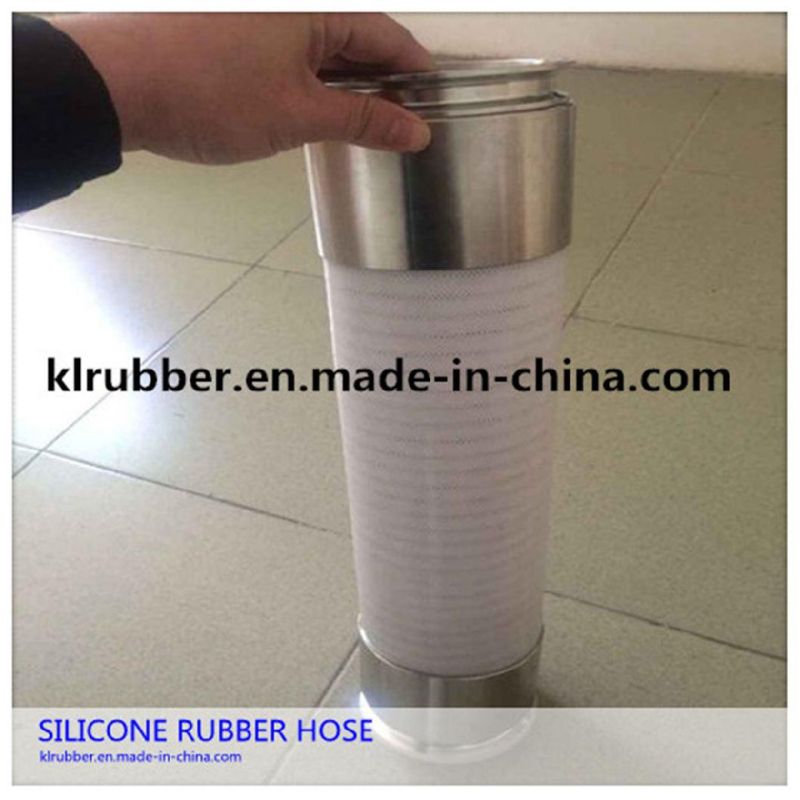

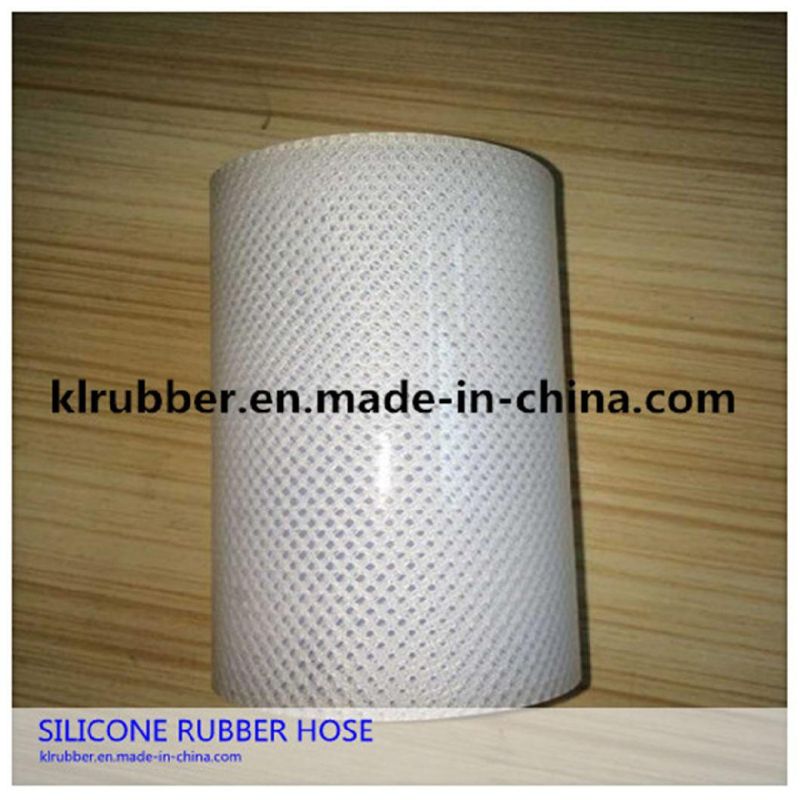

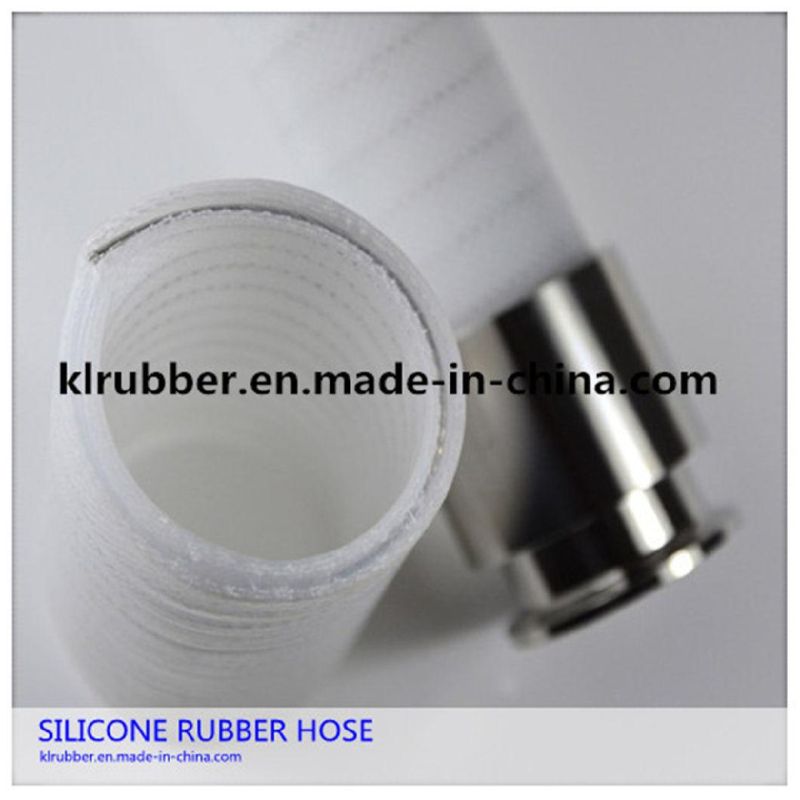

medical grade platinum cured transparent braided rubber silicone tube

Product Description
Flexible silicone hose performance
1.high and low temperature resistance,can be used for a long time under 180 ºC ,under 60 ºC still elastic
2.electric insulation performance:the dielectric properties of the silicone tube is wonderful,especially the dielecric properties of high temperature organic rubber,considerably more than the general dielectric strength within 20-180 ºC is almost not affected by temperature
3.excellent weather resistance,resistant to ozone and ultraviolet light resistance,long-term use does not occur crack in ourdoor.generally considered the silicone tube can be used in outdoor more than 20 years.

Application of flexible silicone hose
Food flexible silicone hose:food machine connecting pipe,baby bottle straws'catheters;water dispensers,coffee pot,water heater,electric rice cooker's the connection pipe,tube;electrical instruments'casing;
Medical flexible silicone hose: medical equipment connection pipe,etc.

Features of flexible silicone hose
1.wonderful flexibility,resistance to deformation
2.high resistance to tear strength
3.high transparency,tasteless,non-toxic.
4.resistanct to high and low temperature,long service life.
5.long time using the same hard,no changes in color,do not spray frost.
6.low in protein binding power.



Material	100% Silicone Raw Material
Color	Semi-transparent or customized
Shore Durometer A	30shoreA-80shoreA
Diameter Size Rank	0.3mm-80mm or customers'drawing
Tolerance of size	0.05mm-0.1mm
Temperature Resistance	-40°C---200°C (normal)   -60°C---280°C (special)
Appearance of the Tube	Wall Thickness of the tube is even ,smooth surface,no cracks, no air bubble,no impurity, odourless and non-toxic.
The charge of the sample fee	need discussion. if the sample is available,  It will be sent to you free
Processing method	platinum-cured extrusion or peroxide-cured extrusion
Delivery time	within 7-14days
Package	PVC or customized (cut in length or roll)
application	For transfer of Sterile Liquids in  1 Injection & Vial Filling Machine. 2 Peristaltic Pump.
	For transfer of oral liquids like Syrups, Tonics etc.
	For transfer of Ointments, Creams etc.
	For use in Food & Beverages, Pharmaceutical, Medical,  Surgical& Electrical Industries as a corona discharge.



Specification(mm)	ID (mm)	OD (mm)	Wall (mm)	+/-Tolerance (mm)	Hardness (Shore A)
3*5	3	5	1	0.1	30-80
4*6	4	6	1	0.1	30-80
5*8	5	8	1.5	0.15	30-80
6*9	6	9	1.5	0.15	30-80
8*12	8	12	2	0.2	30-80
10*14	10	14	2	0.15	30-80
12*16	12	16	2	0.15	30-80
16*22	16	22	3	0.2	30-80
25*31	25	31	3	0.3	30-80

Why select our products
1. We are manufacturer, quality is ensured while price is competitive without middleman
2. As expert in silicone field, we own the most skillful and experienced engineers
3. Customization is one of the biggest advantages. Per technical demand can be met.
4. Once order is made, our factory can ensure you the delivery time.
5.Now you can oline order it, You can always find the logistics information.
