Parker Industrial Hose High Temperature Industrial Vacuum Rubber Hose
Hebei Wanlitai Olive Pipe Co., Ltd.- Material：Nitrile Rubber
- Capability：Rubber Oil Hose
- Color：Black
- Working Pressure：10bar
- Burst Pressure：30bar
- Safe Factor：3:1
Base Info
- Model NO.：Olive
- Working Temperature：-40ºC ~ 80ºC
- Outer Diameter：65 ~ 172 mm
- Reinforcement：High Tensile Textile with Helix Steel Wire
- Cover：NBR Cr
- Type：Rubber Hose
- Key Word：Hydraulic Hose
- Length：38m, 50m, 100m or Customized
- Shape：Regular Round
- Feather：Flexible
- I.D.：6mm~32mm
- Inner Rubber：NBR
- En：3.75mm~7mm
- Transport Package：100meters,Roll or Customized
- Specification：3,4 to 6 inches
- Trademark：Olive
- Origin：China
- HS Code：3917210000
- Production Capacity：100000 Tons,Year
Description
Tube
NBR Reinforcement
1 Plies / 2 Plies High tensile texitile cord Cover
NBR,CR Ideal Working Temperature
-20ºC to 80ºC Safety Factor
3:1 Color
Blue/Green Application

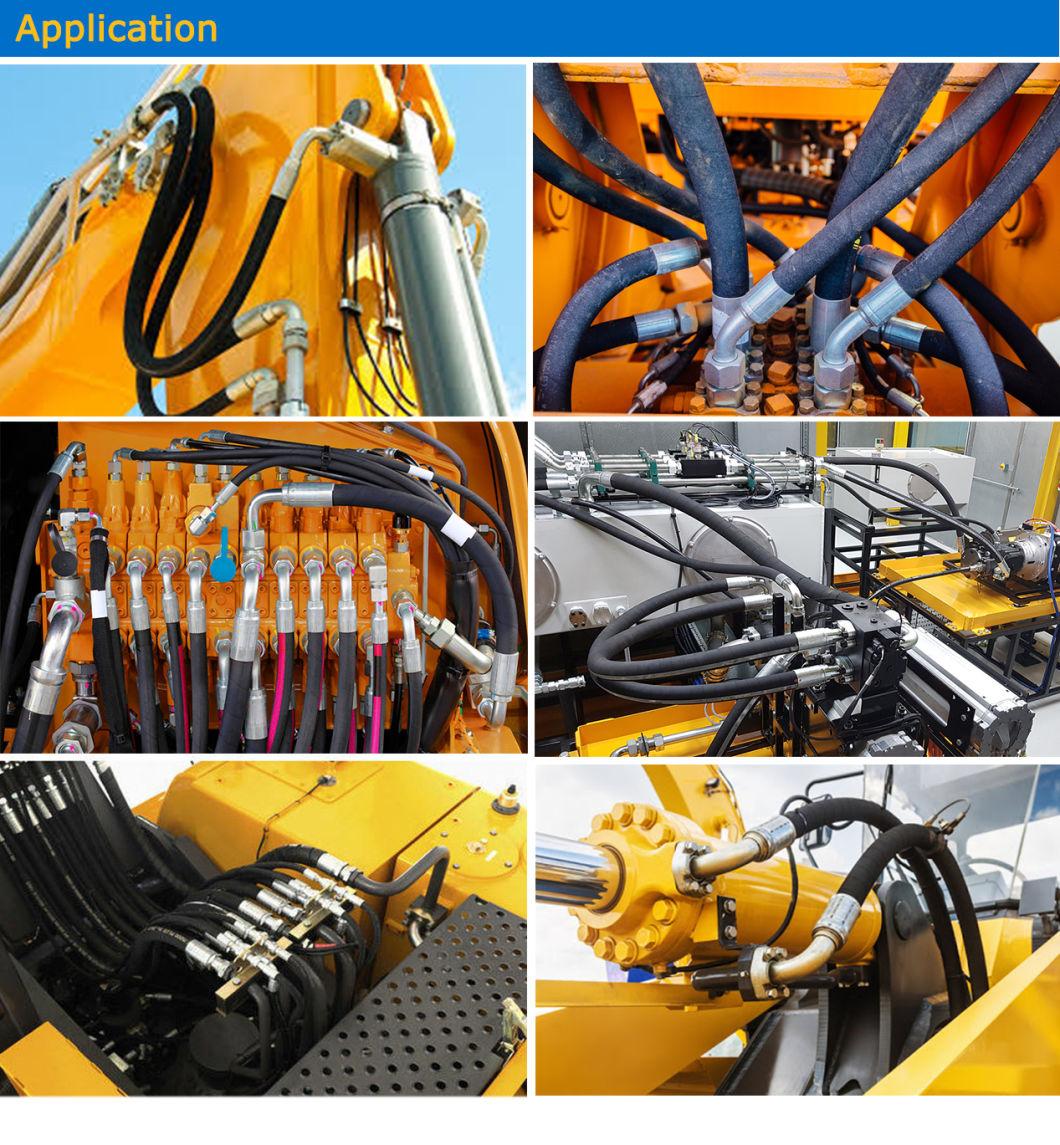

A light weight suction and discharge hose,specially designed for use on hydraulic system,also used for suction and discharge of various petroleum products with maximum 20% aromatic content
1 Ply High wensile textile cord
I.D.
O.D. Wallthickness W.P. B.R. Weight Length inch
mm mm mm psi bar mm kg/m ft m 1/4 6
13.5 3.75 410 28 65 1 0.18 100 5/16 8
15.1 3.55 410 28 75 1 0.22 100 3/8 10
16.7 3.35 410 28 75 1 0.26 100 1/2 13
20.6 3.8 410 28 100 1 0.36 100 5/8 16
23.8 3.9 410 28 125 1 0.48 100 3/4 19
27.8 4.4 410 28 150 1 0.55 100
2 Plies High wensile textile cord
I.D.
O.D. Wallthickness W.P. B.R. Weight Length inch mm
mm mm psi bar mm kg/m ft m 1/4 6
15.1 4.55 1220 84 100 2 0.26 100 5/16 8
18.3 5.15 1130 78 100 2 0.29 100 3/8 10
19.8 4.9 1015 70 125 2 0.43 100 1/2 13
24.6 5.8 885 61 140 2 0.51 100 5/8 16
27.8 5.9 750 52 150 2 0.67 100 3/4 19
32.5 6.75 570 39 205 2 0.9 100 1 25
39.3 7.15 380 26 250 2 1.24 60 1-1/4 32
46.0 7 150 10 1000 14.6 200 61
NOTE: Other parameters are by your requirements.
Custom Service Available
Hebei Wanlitai Olive Plastic Pipe Co.,Ltd, located in Wangdu Economic Development Zone,Baoding City,Hebei Province,China.The transportation is very convenient,near the crossings of 107 National Highway and Beijing-Hongkong-Macau EXpressway. Our company covers an area of 12000 m2,the registered capital is ¥ 100 million.
Our current main rubber hose products are: large-dia marine oil hose(submarine oil/floating,semi-float/dock oil hose);large diameter dredging hose(floating dredging/draining mud dredging hose);industrial rubber hose and food tube(FDA food tube/UHMWAPE rubber composite hose/chemical hose/SAE 100R3 hydraulic hose/SAE 100R6 hydraulic hose/tanker hose/sandblasting hose/mortar and concrete hose/steam hose/fuel oil hose) and so on.All products have obtained BV IS0900A:2015 international quality system certification.Currently in the process of certification:GMPHOM 2009 certification and FDA certification.
1.Q: Are you manufacture or trade company?
A:We are manufacture specialized in PVC pipes and rubber hoses ; Our produces have CE and ISO certification.
2.Q: How can I get the samples?
A:If you need some samples to test, we can make as per your request .You should pay for the transportation freight of samples and our samples cost, while the samples cost can be refundable after you place the order if the amount meets our requirement.
3.Q:How much the transportation freight of samples?
A:The freight depends on the weight and packing size and your area.
4.Q:How long can I expect to get the sample?
A:The samples will be ready for delivery within one week. The samples will be sent via express and arrive in 4-7 days.
5.Q:Can we have our Logo or company name to be printed on your products or package?
A:Sure.Your Logo can be put on your products by Hot Stamping,Printing,Embossing,UV Coating,Silk-screen Printing or Sticker.
6.Q:How to order?
A: Please send us your purchase order by Email or you can ask us to send you a proforma invoice for your order. We need to know the following information for your order:
1) Product information-Quantity, Specification (Size, Material, Technological and Packing requirements etc.)
2) Delivery time required.
3) Shipping information-Company name, Street address, Phone &Fax number, Destination sea port.
4) Forwarder's contact details if there's any in China.
