DN6-DN32 2wire Braided 2sn Rubber Hose Hydraulic Pressure Hose
HEBEI YOULU FLUID TECHNOLOGY CO., LTD.- Material：Nitrile Rubber
- Capability：Rubber Oil Hose
- Color：Black
- Model：1sn 2sn 4sp 4sh R15 R16 R17
- Length：20m, 40m, 60m or as Your Request
- Hose I.D.：3,16′′~3"
Base Info
- Model NO.：SAE 100R2
- Max Work Pressure：3630psi (25MPa)
- Minimum Bursting Pressure：14500psi (100MPa)
- Minimum Bending Radius：90mm
- Weight：0.19~2.35kg,M
- Transport Package：Shipping
- Specification：1,4′′,1,2′′,3,4′′,1′′,1-1,4′′,1-1,2′′,1-3,4′′,2′′
- Trademark：UGW
- Origin：China
Description
Min B.PMin.B.R Weight in mm Mpa psi Mpa psi mm Kg/m 2SN-3 3/16 14.1 41.5 6019 165 23930 90 0.27 2SN-4 1/4 15.7 40.0 5801 160 23204 100 0.34 2SN-5 5/16 17.3 35.0 5076 140 20304 115 0.39 2SN-6 3/8 19.7 33.0 4786 132 19144 130 0.49 2SN-8 1/2 23.0 27.5 3989 110 15956 180 0.59 2SN-10 5/8 26.2 25.0 3625 100 14500 200 0.71 2SN-12 3/4 30.1 21.5 3118 86 12472 240 0.89 2SN-16 1 38.9 16.5 2393 65 9430 300 1.37 2SN-20 1 1/4 49.5 12.5 1813 50 7252 420 2.27 2SN-24 1 1/2 55.9 9.0 1305 36 5220 500 2.44 2SN-32 2 68.6 8.0 1160 32 4640 630 3.00

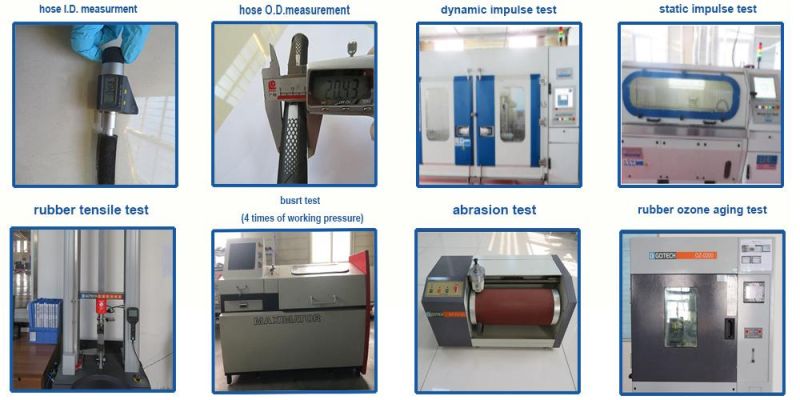

Quality Control:

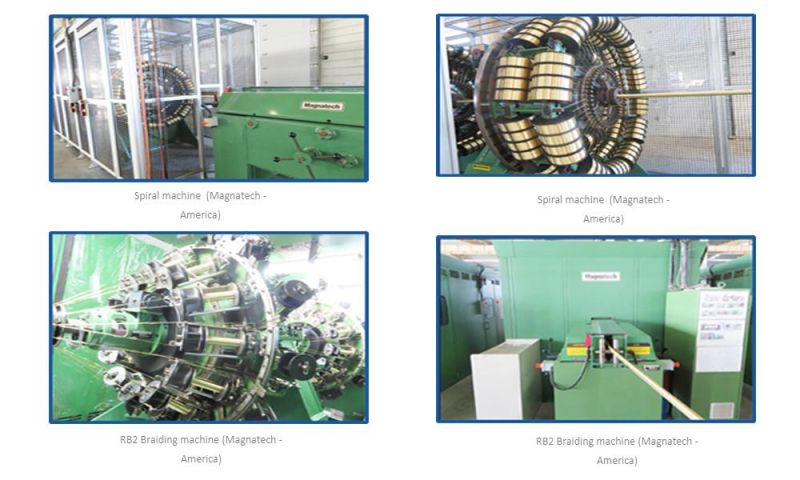

Our Equipment:
Our Packaging:
Application:
FAQ:
Q1.Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2.What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q3.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q4.How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Quality Control:
Our Equipment:
Our Packaging:

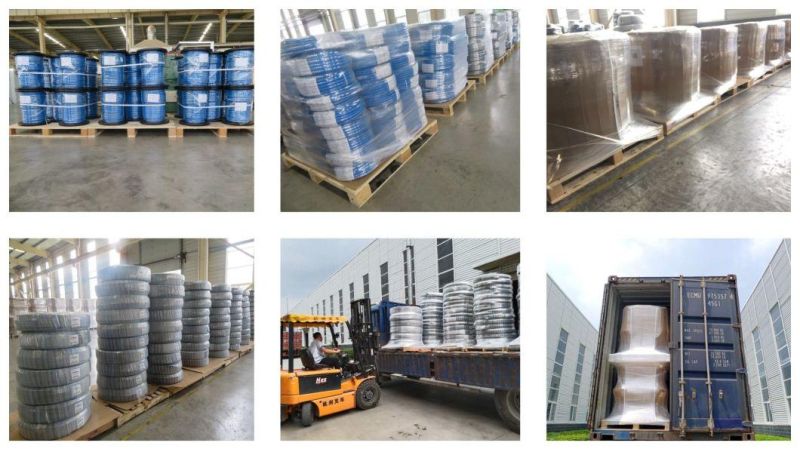

Packing of all size 1/4 to 2 inch hydraulic hose
1. Woven Belt 20meters/roll, 50meters/roll, 100meters/roll
2. Wooden box or wooden frame (common for hose assembly packed)
3. Special packing is available according to customers' requirements.
Application:
FAQ:
Q1.Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2.What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q3.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q4.How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
