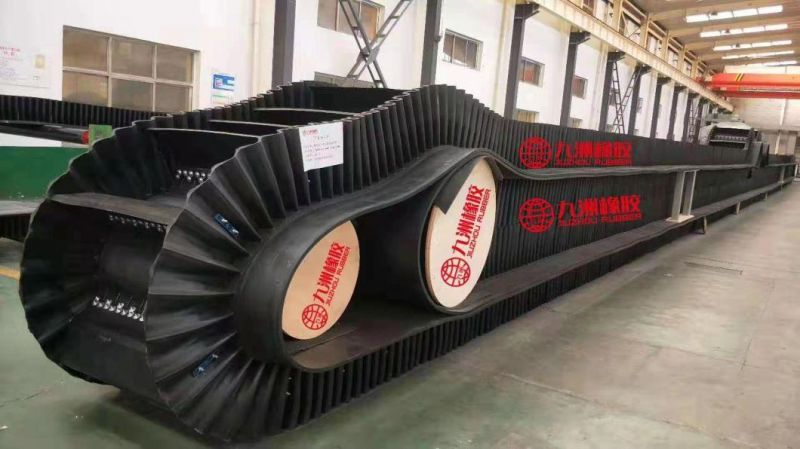

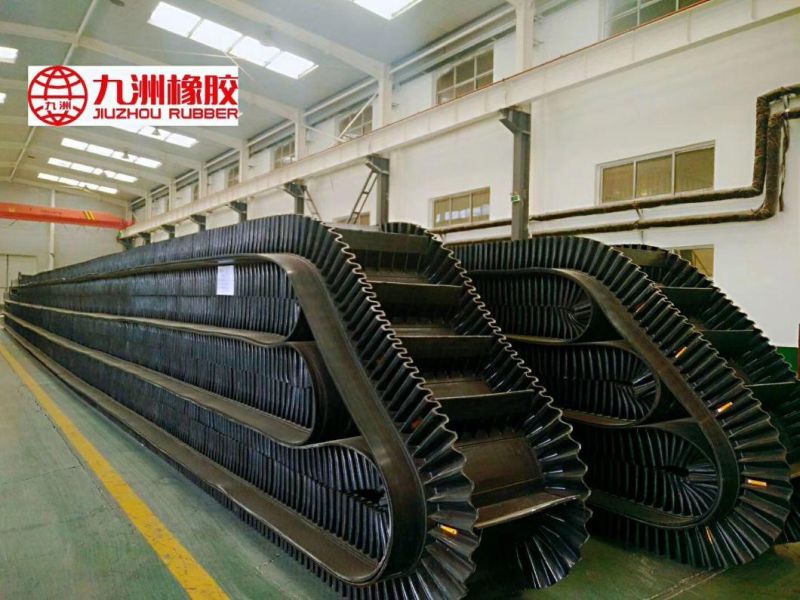

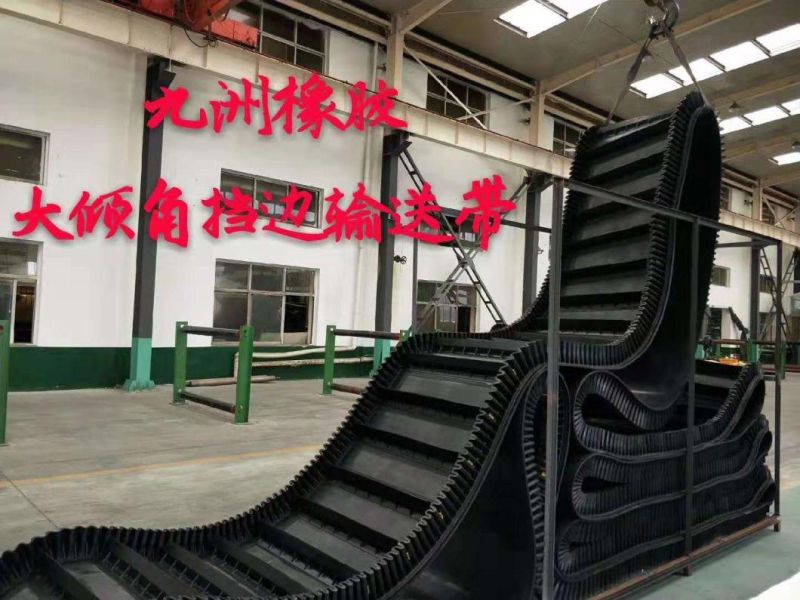

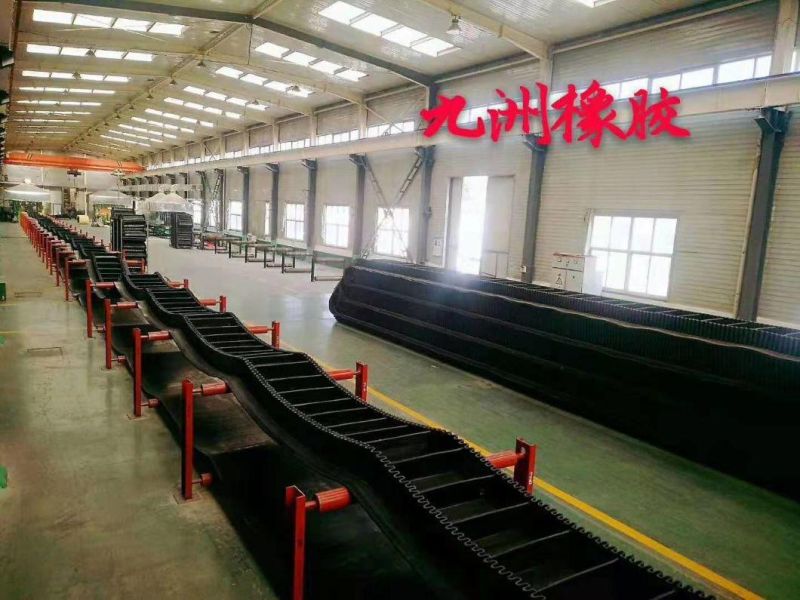

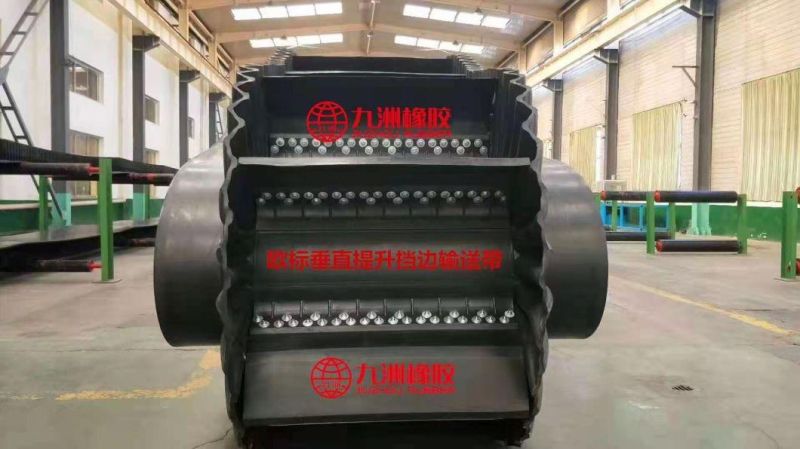

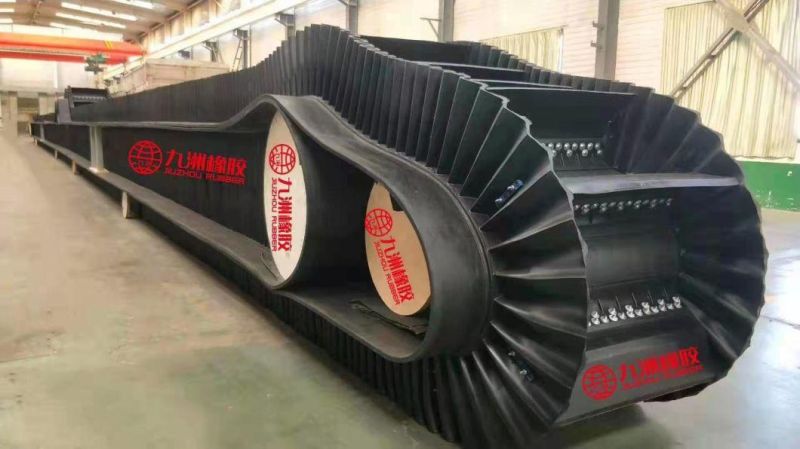

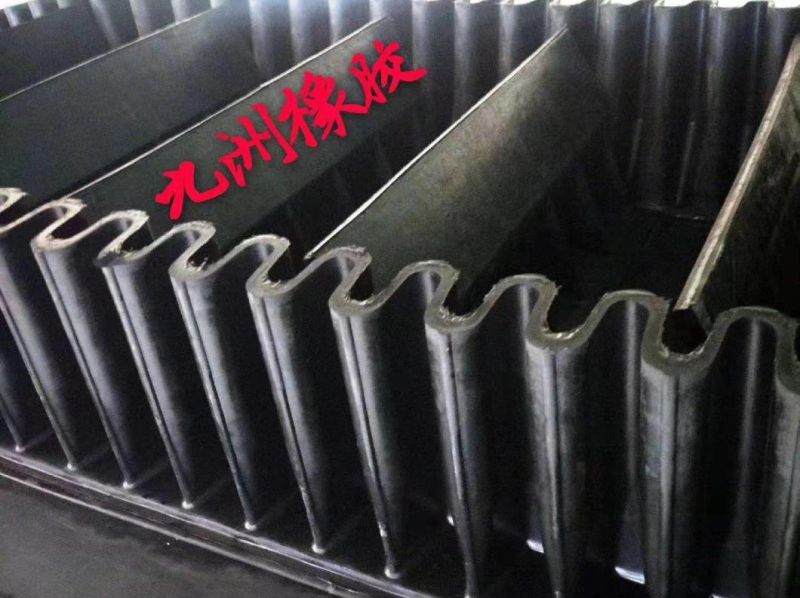

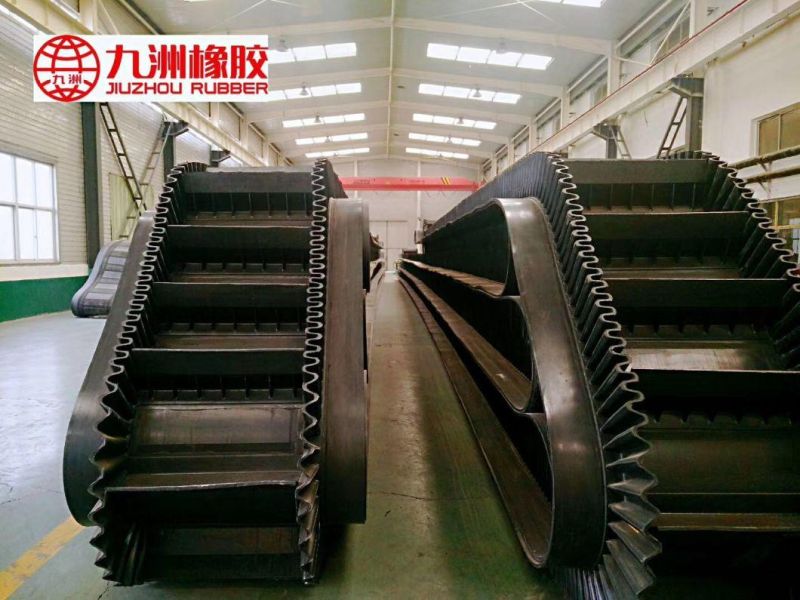

Inclined Sidewall Corrugated Rubber Conveyor Belt

Hebei Jiuzhou Rubber Technology Co., Ltd.
  • Type：Conveyor Belt
  • Feature：Wear-resistant, Heat-resistant, Tear-resistant, Flame-resistant, Cold-resistant, Sidewall
  • Usage：Materials Handling
  • Performance：Strong Rubber Conveyor Belt
  • Colour：Black
  • Width：300~2000mm

Base Info

  • Model NO.：EP100~EP400, NN100~NN400 etc
  • Thickness：3~30mm
  • Transport Package：Standard Packing
  • Specification：GB, DIN, RMA, ISO, AS, SABS, BS
  • Trademark：JIUZHOU
  • Origin：Baoding City, Hebei, China
  • HS Code：40101200
  • Production Capacity：1000 Meters Per Day

Description


ItemsWK 60WK 80WK 120WK 160S 160S 200S 240S 300Height of sidewall HW mm6080120160160200240300Bottom width of sidewall BF mm5065828575759090Wave of sidewall BW mm3646526265658484Pitch of sidewall wave TW mm5060707065657070Weight of sidewall kg/m11.383.044.44.656.28.310.85Length of wave in Straight m/m0.670.922.033.22.73.64.86.3DIA. Of roller DI mm40050060080080090010001200Sidewall pinch roller Dia. Min D2 mm280340360480480600420600Height of cleat HQ mm5575110145145180220280Bottom width of cleat FB mm6575 TCTCTCTCTC8070120145145200200200Length of cleat in flat m/m0.61.021.713     0.6711.832.372.33.3956.6Applicable angle of different cleatT - 45 TC - 60 TC - 90 TC TCS - 90Size of Inset60-300
