• Model NO.：3A5007
• Color：Black Rubber Sheet
• Transport Package：Packing in Rolls and Pallets
• Specification：Standard Size
• Trademark：3A Rubber
• Origin：China
• HS Code：40082100
• Production Capacity：100000kgs,Month

Basic Info.

Model NO. 3A5007 Color Black Rubber Sheet Transport Package Packing in Rolls and Pallets Specification Standard Size Trademark 3A Rubber Origin China HS Code 40082100 Production Capacity 100000kgs/Month

Product Description

FKM Sheet, FKM Sheeting, FKM Rolls, FKM Gasket, FKM Rubber Sheet (3A5009)

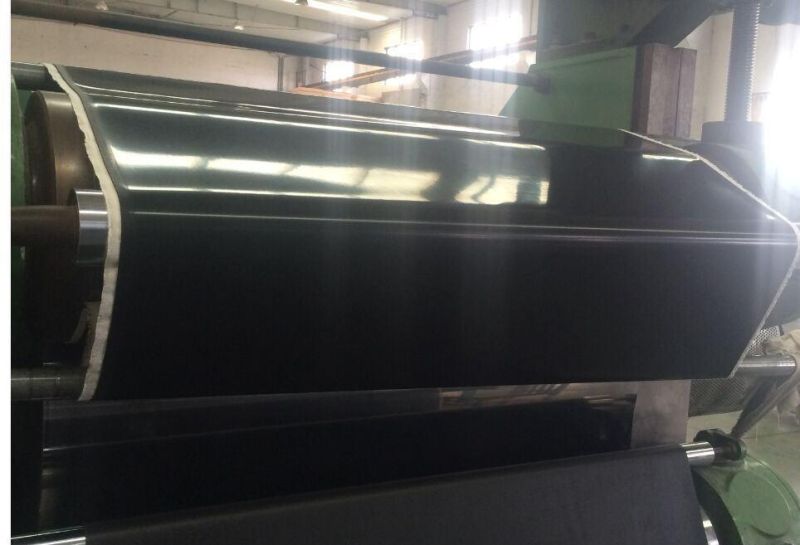

Description: the fluorubber sheet, FKM sheet are made by drum vulcanizer(ROTOCURE) or plate vulcanizer with high quality fluorubber. The fluorubber(FKM) is a flouroelastomer created for today most demanding applications. It has very excellent resistance to acids, hot water, low pressure steam, chlorinated solvents, aliphatic and aromatic hydrocarbons, petroleum oils, fuels, ozone and weather, lubricants, animal and vegetable oils. With very wide service temperature range of -30 to +250 celsius. The fluorubber are well known for its high performance rubber with excellent resistance to hydrocarbons, chemicals, oil and heat. It also has outstanding resistance to compression, especially at elevated temperature. This rubber sheet is widely used in oil industry, aviation field, automotive industry, aerospace and other aggressive environments. 0.5-6mm thickness made by drum vulcanizer(ROTOCURE) with shiny surface, 7-100mm thickness made by plate vulcanizer for higher thickness. With many high characters such as high heat aging resistance, high temperature resistant, ozone resistant, oil resistant, vacuum resistant, acid & alkali resistant, chemic cautery resistant. It could work in air, oil, acid or alkali and all kinds of other chemic solution which contains 100% cautery material at the temperature of -30°C - +250°C(moment 320°C maximum). Appearance of product this type feels gleaming and flattening. Allowable variation of thickness is tiny and all physical indexes are excellent. With outstanding performances of high temperature resistant, oil-proof, strong acid and alkali proof the product could withstand hard environment's test. Multi hardness fluorin rubber plate with 2m ultimate thickness and 0.5mm ultimate thinness could meet the requirement of all industries. Apply to punch all kinds of seals, gaskets at military, spaceflight, automotive, chemical industry, aerospace, fluid power, power train systems, safety and handling, fuel systems, appliances and other high-tech request. Allowed buyers offer particular technical demand such as insulation, textile insertion, metal mesh insertion and mat surface, we could make it according to contract signified.



Specifications:

material: virgin fluorubber

quality: industrial grade, FDA grade with postcure

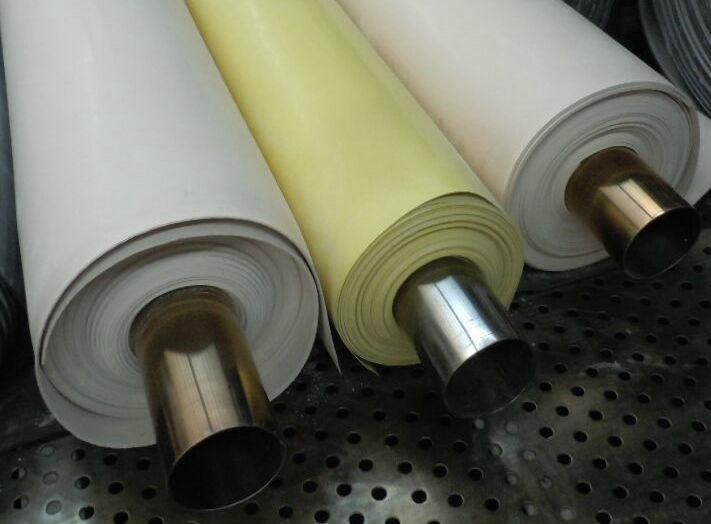

color: black, brown, red, green, yellow, white etc.

surface: smooth/smooth, smooth/impression fabric, double impression fabric

Insertion: reinforce and insert 1-3 PLY fiberglass fabric, aramid fabric or wire mesh SS201, SS304, SS316

tensile strength: 5-12Mpa

hardness: 60, 70+/-5Shore A

elongation: 200%

density: 1.9-2.1g/cm³

working temperature: -40°C - +250°C(moment 320°C maximum)

thickness: 0.5-100.0mm

width: 0.1-2.0m

length: 0.1-20m

OEM & customized size are agreed

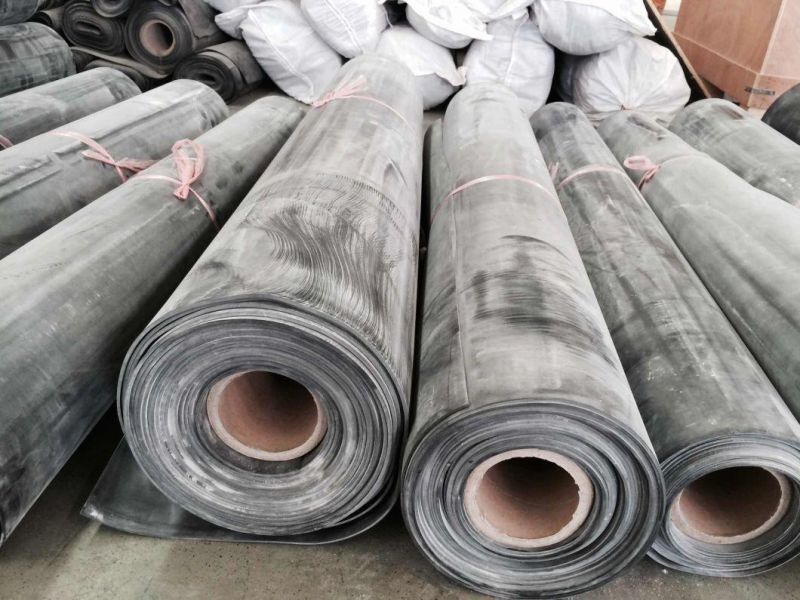

packing in rolls and pallets

***when you enquiry, pls confirm the size and quantity***

Also supply FKM cord, FKM hose, FKM gasket, FKM ring etc.
