• Model NO.：3,16"
• Sizes：3,16"~3,8"
• Reinforcement：High-Tensile Fiber Braided
• Cover：NBR, SBR, EPDM
• W.P：20bar
• B.P：60bar
• Temperature：-10c~90c
• Length：50m, 100m
• Inner Size：4.8mm
• Transport Package：Well Packed by OPP Film, Poly Stripes.
• Specification：3,16"
• Trademark：Passion
• Origin：Zhejiang China
• HS Code：40093100
• Production Capacity：400000 Meters,Month

Overview Product Description

Construction: Tube: SBR, NBR synthetic rubber.
            Reinforcement: High tensile polyester fiber braided.
            Cover:SBR, NBR, EPDM synthetic rubber.
Temperature: -30ºC to +90ºC
Color: Orange or Black etc
Application: Mainly used for gas stove, circulation of liquefied fuel gas or gaseous fuel, LPG
Standard length: 50m, 100m.

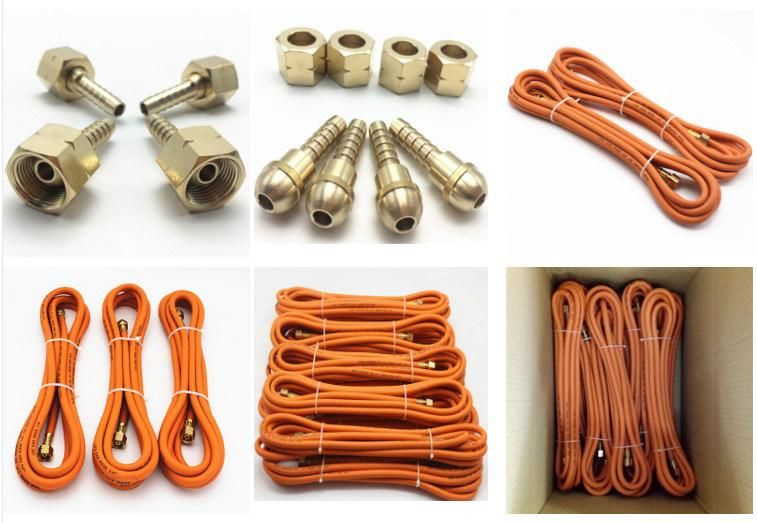

Detailed Photos

Fitting Type:

3/8" Female left-hand brass fittings.


If you need other sizes and fittings, please feel free to contact us.

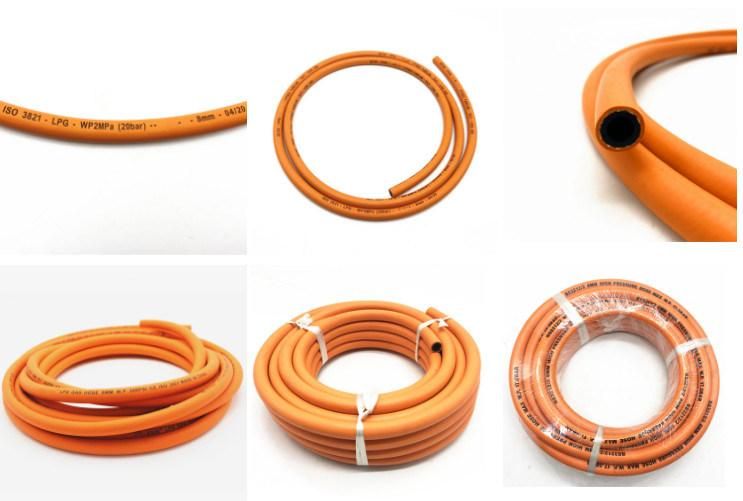

Product Photos:




Product Parameters
Item codeInner DiameterOuter DiameterWorking PressureBurst PressureLengthMeasurementWeightinchmmmmbarpsibarpsimcbm/rollkg/m 3/16"511.520300609001000.0280.15 1/4"61320300609001000.0310.17 5/16"81520300609001000.03530.216 3/8"101720300609001000.04420.24 1/2"12.72220300609001000.07560.428 5/8"16252030060900500.03290.40 3/4"19292030060900500.05720.60 1"25362030060900500.0990.84 1-1/4"32431015030450500.1701.20 1-1/2"38501015030450500.1901.39 2"51651015030450500.4101.80Certifications

Paishun has various types of certificates, such as ISO9001, CE, RoHS, etc.

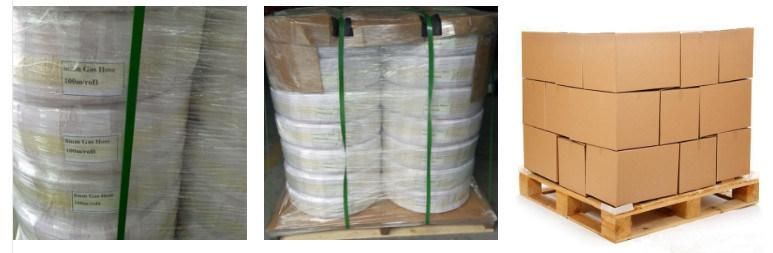

Packaging & Shipping

Packing & Delivery:


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Paishun is a leading rubber hose manufacturer in east China for over 13 years, with professional and permanent technical service and support for you.

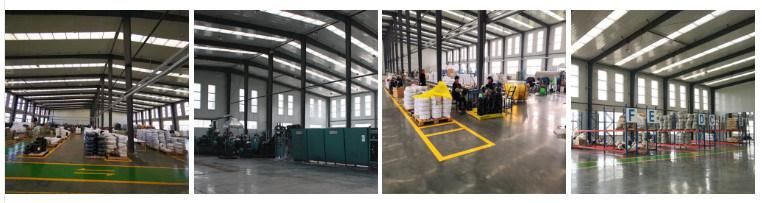

We own complete production lines of rubber mixing process, cold feeding material extrusion process, micro wave vulcanization process, and high speed braiding process, etc.


FAQ

1.Q:Are you a factory or trading company?
A:We are a factory for over 13 years.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Hangzhou City, Zhejiang Province, China, about 1.5 hours train from Shanghai.
All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:How can I get some samples?
A: We are honored to offer you samples.

4.Q:How does your factory do regarding quality control?
A. Quality is priority. PASSION always attach great importance to quality controlling from the beginning to end. Our factory has gained CE, ISO, SGS etc.

Exhibition:
