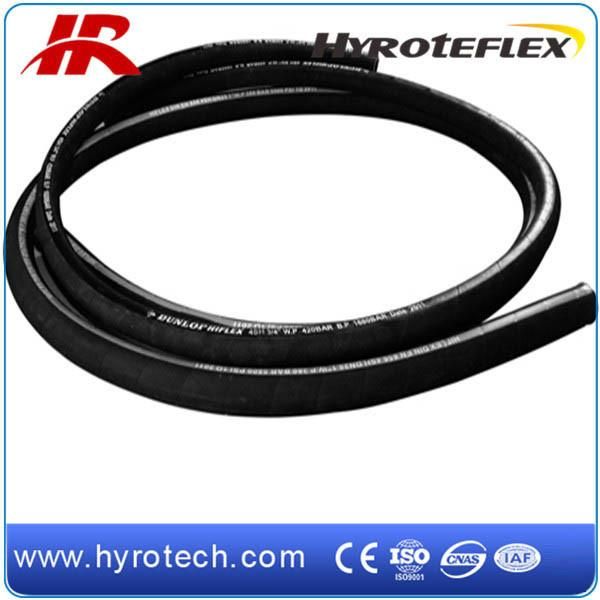

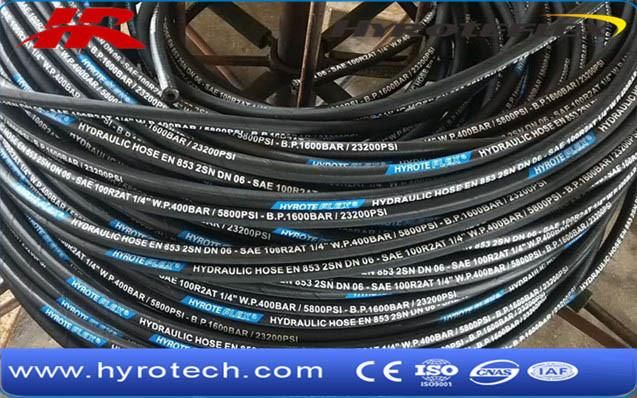

Hydraulic Hose/ High Pressure Hose

Qingdao Hyrotech Rubber & Plastic Products Co., Ltd.
  • Material：Nitrile Rubber
  • Capability：Rubber Oil Hose
  • Color：Black
  • Size：5mm to 76mm
  • Product Type：SAE 100r2at ,DIN En 853 2sn
  • Lenght：20meters to 100meters

Base Info

  • Model NO.：6mm to 51mm (1SN, 2SN&R1, R2)
  • Tube：Oil Resistant Synthetic Rubber
  • Reinforcement：Two High Tensile Steel Wire Braid
  • Cover：Abrasion and Weather Resistant Synthetic Rubber
  • Temperature Range：-40c to 100c
  • Colour：Balck or Other Colours
  • Bursting Pressure：4 Times Than Working Pressure
  • Certificate：ISO 9001-2008
  • Transport Package：Plastic Film or Plastic Woven Bag
  • Specification：R1,R2,R3,R4,R5,R6,R7,R8,R9,R12,R13,R14,R15,R16,R17
  • Trademark：Hyrotech or Hyroflex
  • Origin：China
  • HS Code：4009210000
  • Production Capacity：10000000meters,Year

Description

DN  Hose I.DWire O.D  Hose O.D  Working PressureBurst PressureMinimum Bend RadiusWeightLengthinchmmmm  mmMPapsiMPapsimmkg/mmetres53/164.811.113.441.4600016523720890.3250/10061/46.412.715.040.05800160228401020.3650/10085/167.914.316.636.05250140200001140.4550/100103/89.516.719.033.14800132188401270.5450/100131/212.719.822.227.64000110157201780.6850/100165/815.92325.425.03630100142802030.850/100193/419.02729.321.5312085122802410.9450/10025125.434.938.016.524006594203051.35503211/431.844.548.312.518205071404192.1520/403811/238.150.854.69.013103651405082.6520/4051250.863.867.38.011603245606353.4220/40
