• Model NO.：3A1003
• Surface：Smooth
• Tensile Strength：9.88MPa
• Hardness：60-70shore a
• Elongation：720%
• Density：1.25g,cm3
• Size：as Per The Buyer′s Order
• Transport Package：Packing in Rolls and Cartons
• Specification：Custom Size
• Trademark：3A Rubber
• Origin：China
• HS Code：3920999000
• Production Capacity：10000kgs,Month

Basic Info.

Model NO. 3A1003 Surface Smooth Tensile Strength 9.88MPa Hardness 60-70shore a Elongation 720% Density 1.25g/cm3 Size as Per The Buyer′s Order Transport Package Packing in Rolls and Cartons Specification Custom Size Trademark 3A Rubber Origin China HS Code 3920999000 Production Capacity 10000kgs/Month

Product Description

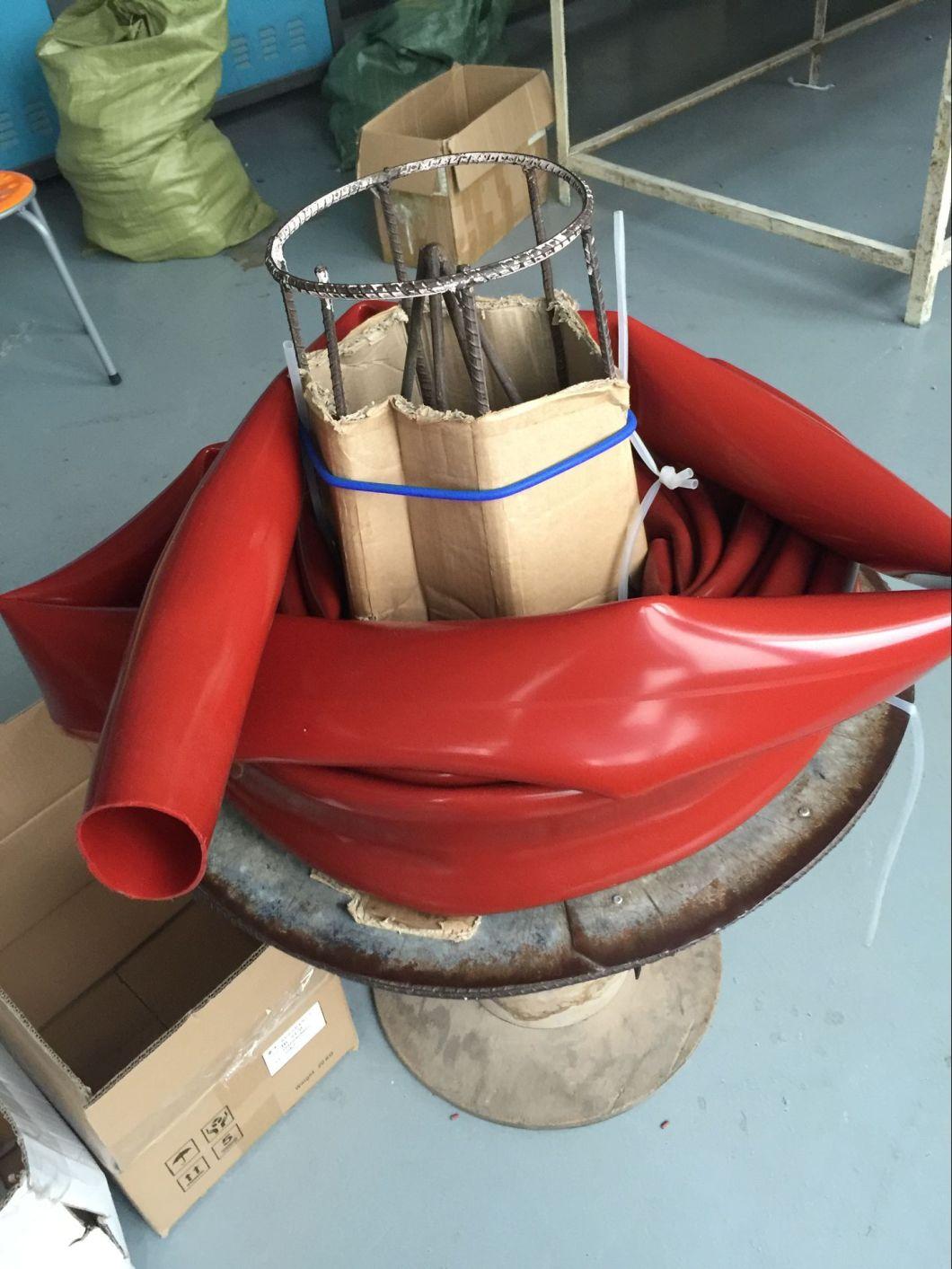

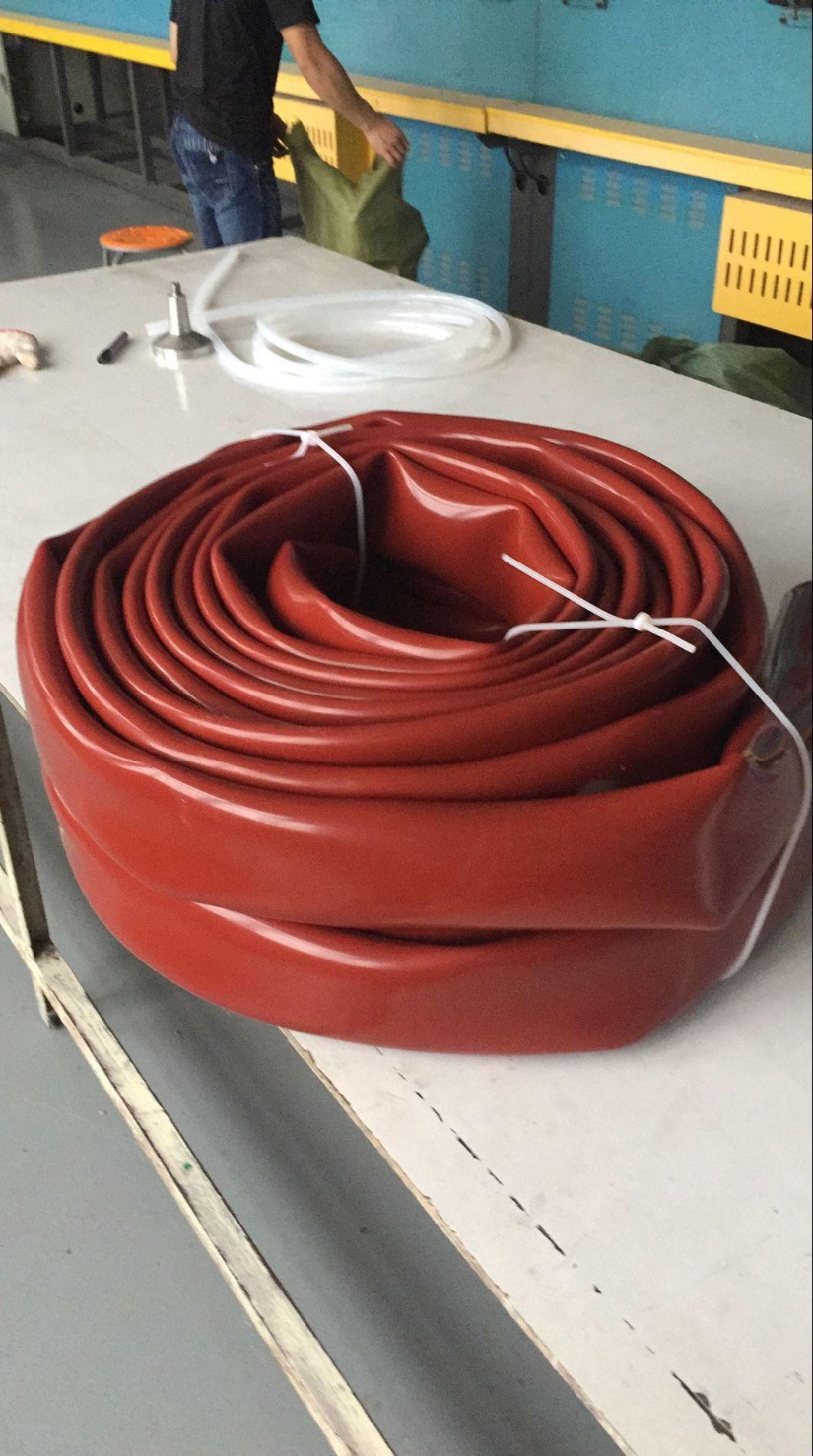

High Tear Resistant Super Large Silicone Tube, Silicone Pipe, Silicone Sleeve for Corona Rollers (3A1003)

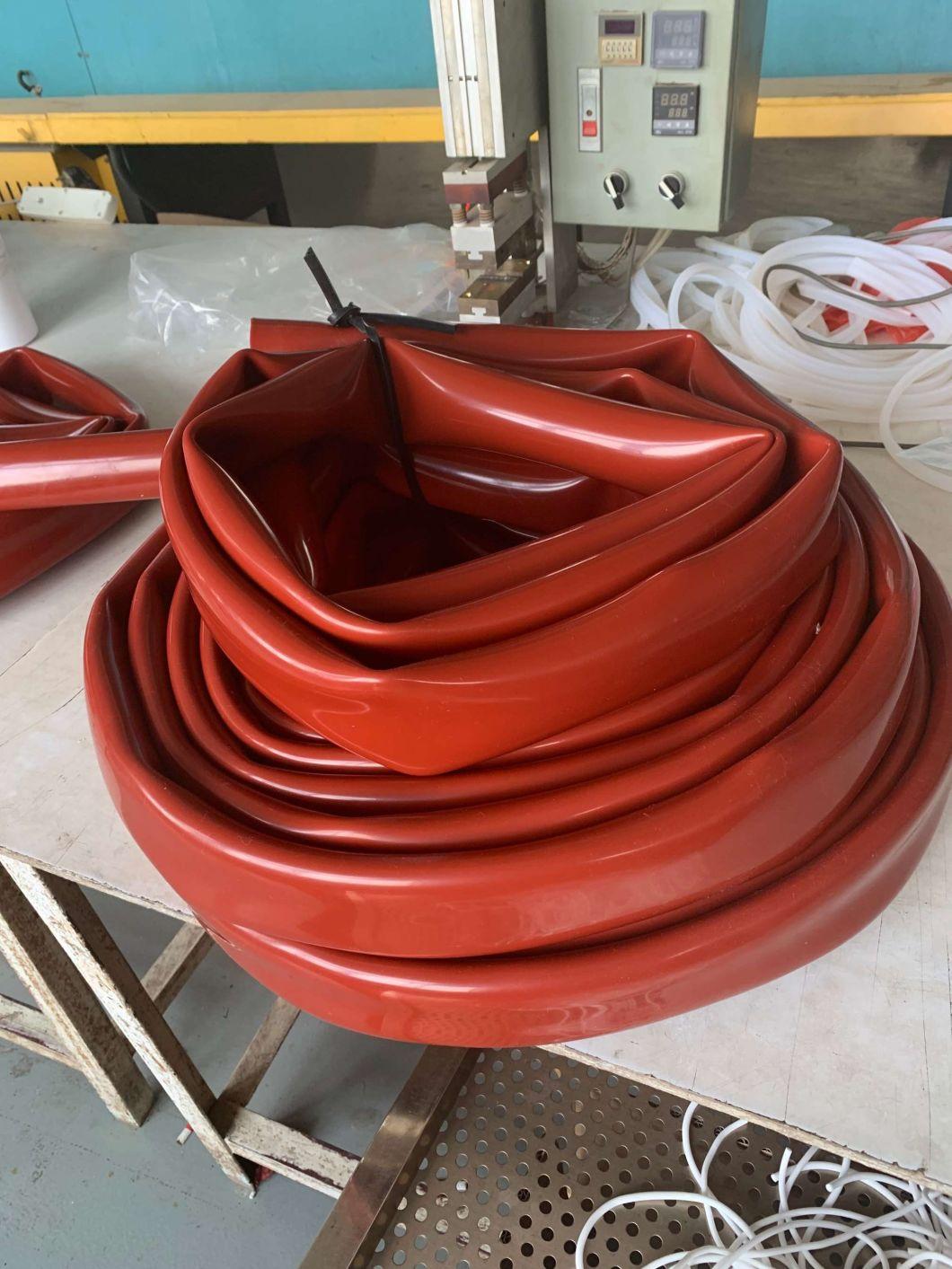

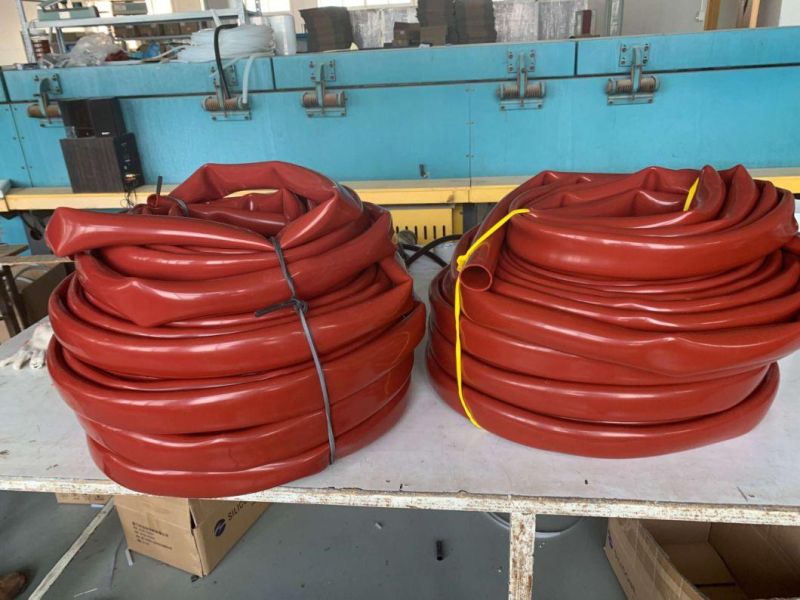

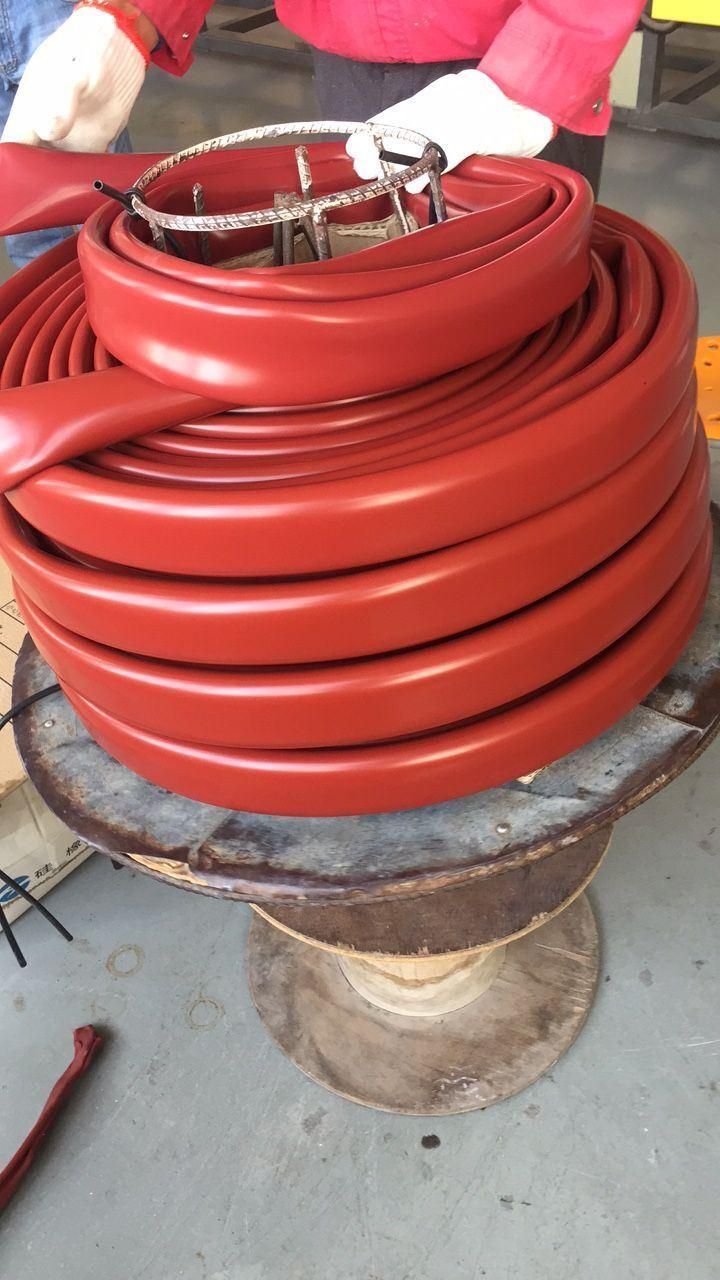

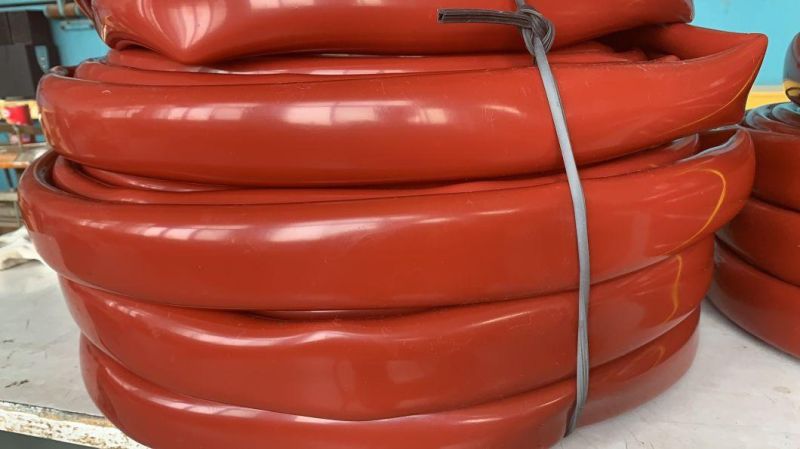

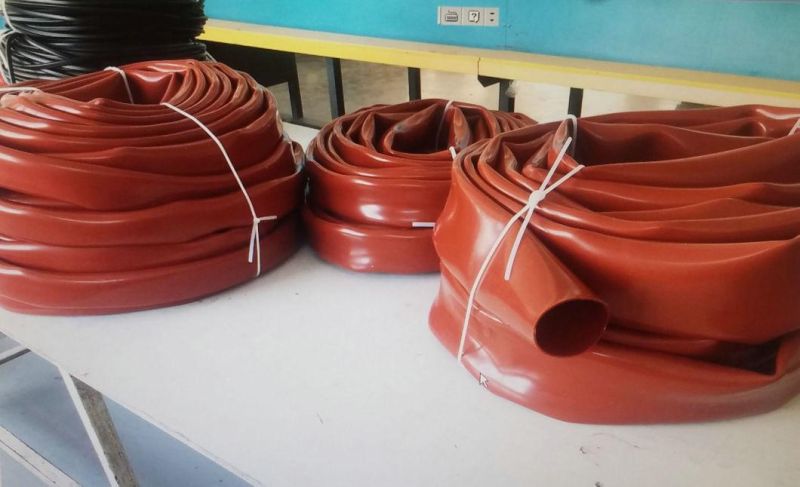

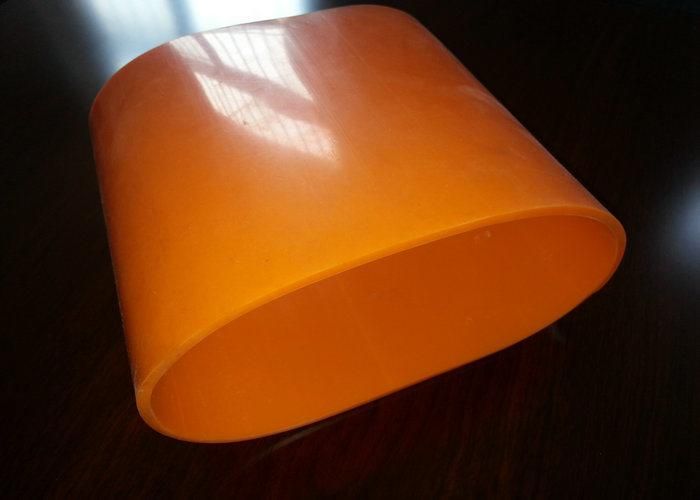

Silicone tube, silicone sleeve for corona roller:

Description: the corona silicone tube, silicone sleeve are made with high quality import fume silicone material which can resistant high voltage and inflaming retarding and special for corona machine. The high voltage corona sparkle is well-proportioned, it is easy to print color on plastic film with surface activation and millipore after corona treatment. Resistant 25KV at 1mm wall thickness. Apply for the roller sleeve, high-voltage terminal, protective sleeve, flexing tubing for all kinds of corona machine.



Specifications:

material: 100% virgin fume silicone material

color: orange, dark red, translucent, black etc.

tensile strength: 9.8Mpa

hardness: 60-70shore A

elongation: 700%

density: 1.25g/cm3

working temperature: -60°C - +250°C

resistant: 18-25KV/mm

wall thickness: 2.0, 3.0, 4.0, 6.0mm

standard size:

Ø32mm x Ø38mm x 2-20m

Ø32mm x Ø40mm x 2-20m

Ø34mm x Ø42mm x 2-20m

Ø46mm x Ø54mm x 2-20m

Ø50mm x Ø58mm x 2-20m

Ø55mm x Ø62mm x 2-20m

Ø60mm x Ø66mm x 2-20m

Ø60mm x Ø68mm x 2-20m

Ø63mm x Ø71mm x 2-20m

Ø67mm x Ø75mm x 2-20m

Ø75mm x Ø83mm x 2-20m

Ø80mm x Ø88mm x 2-20m

Ø90mm x Ø98mm x 2-20m

Ø98mm x Ø102mm x 2-20m

Ø106mm x Ø114mm x 2-20m

Ø140mm x Ø150mm x 2-20m

Ø145mm x Ø153mm x 2-20m

Ø162mm x Ø172mm x 2-20m

OEM & customized size are agreed

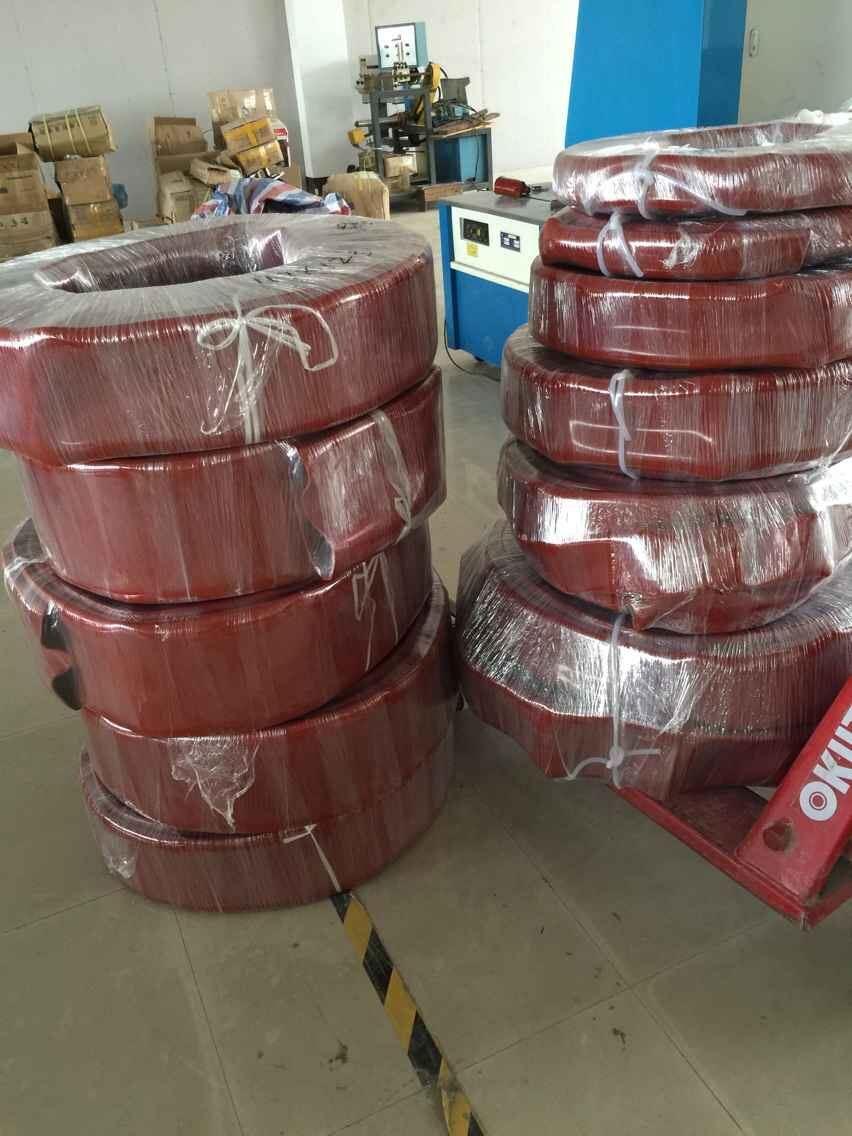

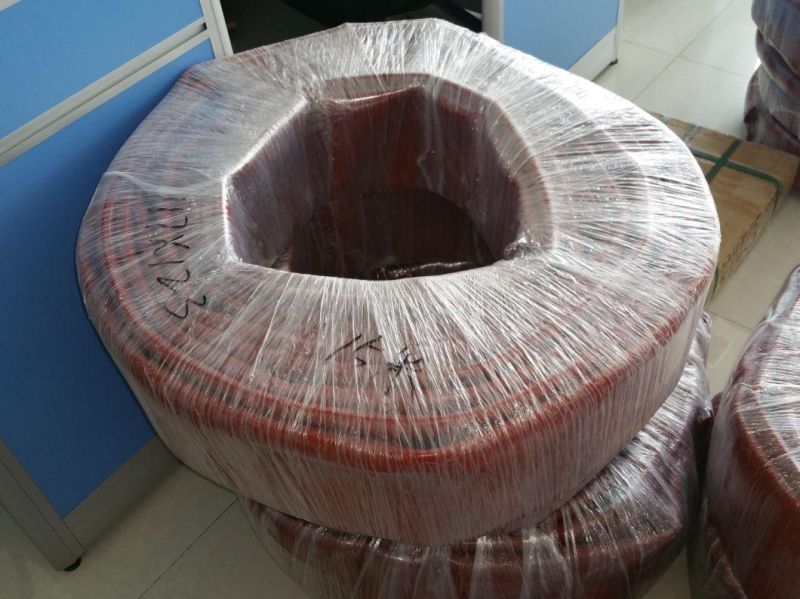

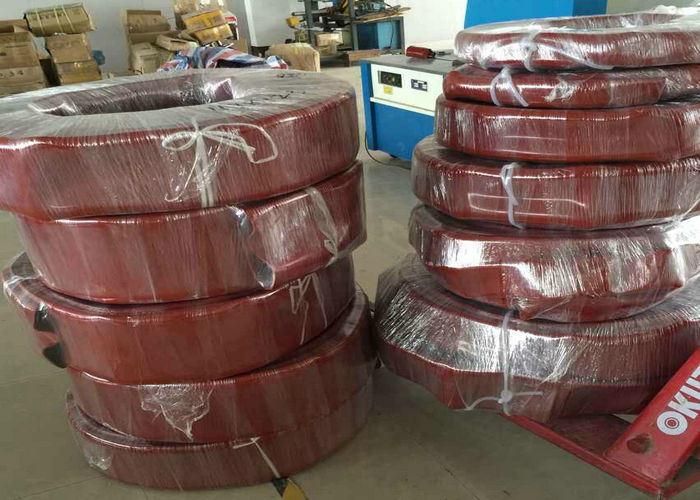

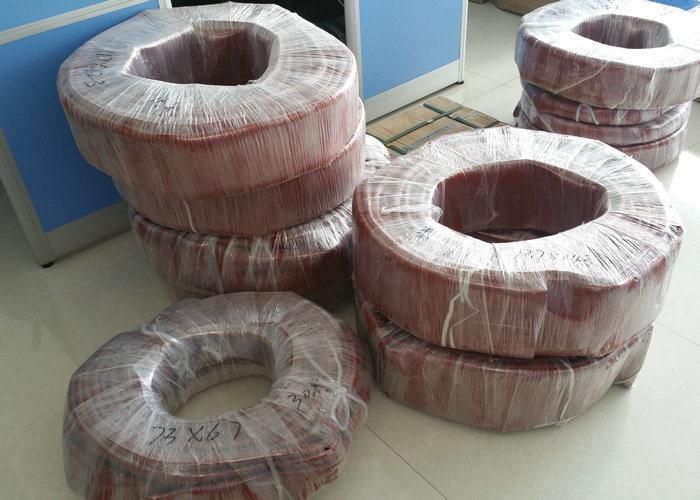

packing in bags and crates

***when you enquiry, pls confirm the color, quality, hardness, size, quantity***
