• Model NO.：cc56, cc60
• Standards：GB,T7984-2001, DIN22102, Bs490, As1332, Rma, Jisk6
• Scope：Belt Conveyor, Screw Conveyor and So on
• Condition：New
• The Strength Specification：100n,Mm 125n,Mm 150n,Mm 200n,Mm 250n,Mm 300n,Mm 40
• Belt Width：400-2200mm
• Transport Package：PVC Water Proof Cloth or Customized
• Specification：DIN; AS; RMA; SABS; BS; JISK
• Trademark：Huayue
• Origin：Baoding City Hebei Province China
• HS Code：4010120000
• Production Capacity：5000meters,Day

Basic Info.

Model NO. cc56, cc60 Standards GB/T7984-2001, DIN22102, Bs490, As1332, Rma, Jisk6 Scope Belt Conveyor, Screw Conveyor and So on Condition New The Strength Specification 100n/Mm 125n/Mm 150n/Mm 200n/Mm 250n/Mm 300n/Mm 40 Belt Width 400-2200mm Transport Package PVC Water Proof Cloth or Customized Specification DIN; AS; RMA; SABS; BS; JISK Trademark Huayue Origin Baoding City Hebei Province China HS Code 4010120000 Production Capacity 5000meters/Day

Product Description

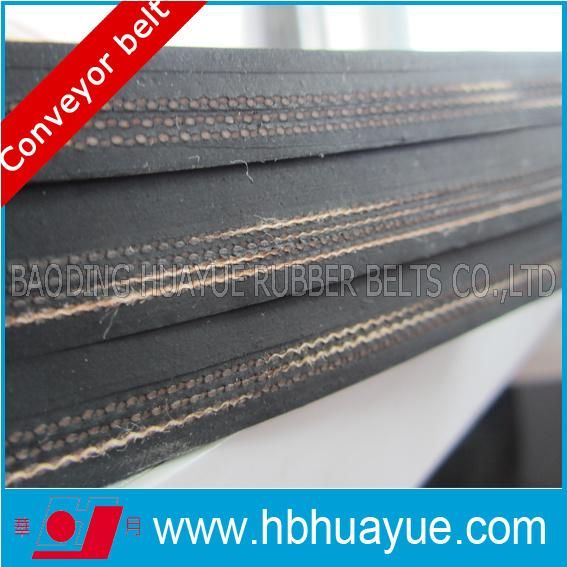

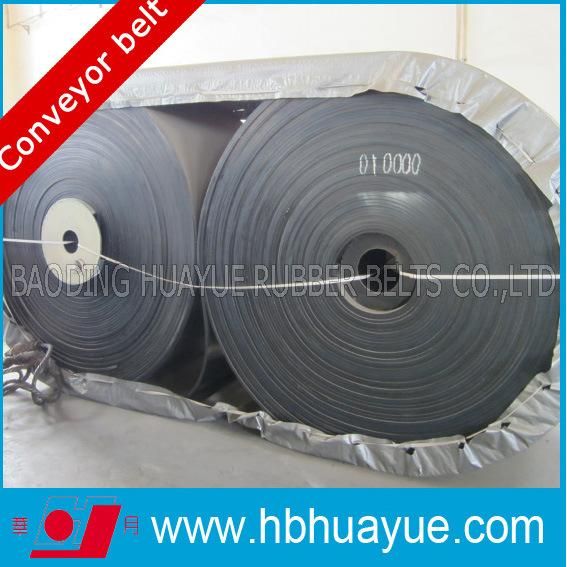

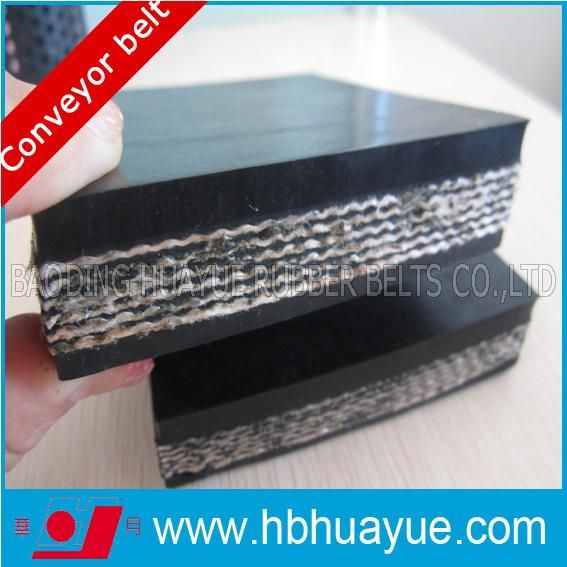

cotton conveyor belt for coal mine

Standards:

GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc.

physical and mechanical properties of covering layer

Rank of overburden performance        H                      D                       L

Tensile strength(Mpa)≥                          24.0                 18.0                 15.0

Elongation at break(%)≥                       450                   400                  350

Abrasion value(mm3)≤                            120                   100                 200

tensile property of total thickness:
1. tha longitudinal tensile strength of the conveyor belt is not lower than the following nominal value:160  200  250  315  400  500  600  630  800N/mm

2. the total thickness elongation rate of the belt should not less than 10%, the reference force elongation rate of total thickness of the belt should no more than 4%.

3. straightness: no more than 25mm.

Welcome to inquiry us.
