• Model NO.：1-6m high
• Thickness：8-50mm
• Fabric：Ee, Ep, Nn
• Width：0.8-6m
• Material：SBR, EPDM, Nr, Neoprene
• Transport Package：Pallet
• Specification：EE, EP, NN
• Trademark：SR
• Origin：Shandong, China
• HS Code：40101200
• Production Capacity：100000m,Y

Basic Info.

Model NO. 1-6m high Thickness 8-50mm Fabric Ee, Ep, Nn Width 0.8-6m Material SBR, EPDM, Nr, Neoprene Transport Package Pallet Specification EE, EP, NN Trademark SR Origin Shandong, China HS Code 40101200 Production Capacity 100000m/Y

Product Description

Company Profile

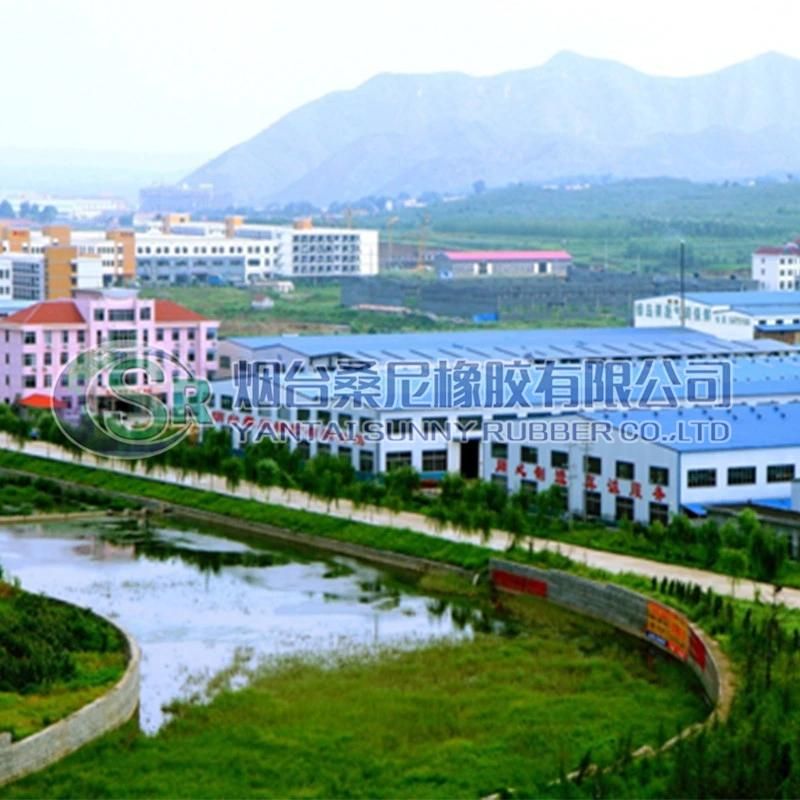

Yantai Sunny Rubber Co., Ltd established in 2005, located in Economic Development Area of Qixia City, Shandong Province. It is high-tech enterprise. Main products are pneumatically operated spillway gate, rubber dam, filter belt, conveyor belt, etc.
The workshop is 22,000 square meters, equipment 200 sets, worker 230. It owns 11 patents for invention, 18 patents for utility. With the full capacity of design, production, installation and after sales, more than 100 spillway gates were built by Sunny in domestic, for power plant impounding and river management. Our product also export to Italy, Thailand, Philippines, South Africa, Argentina etc.

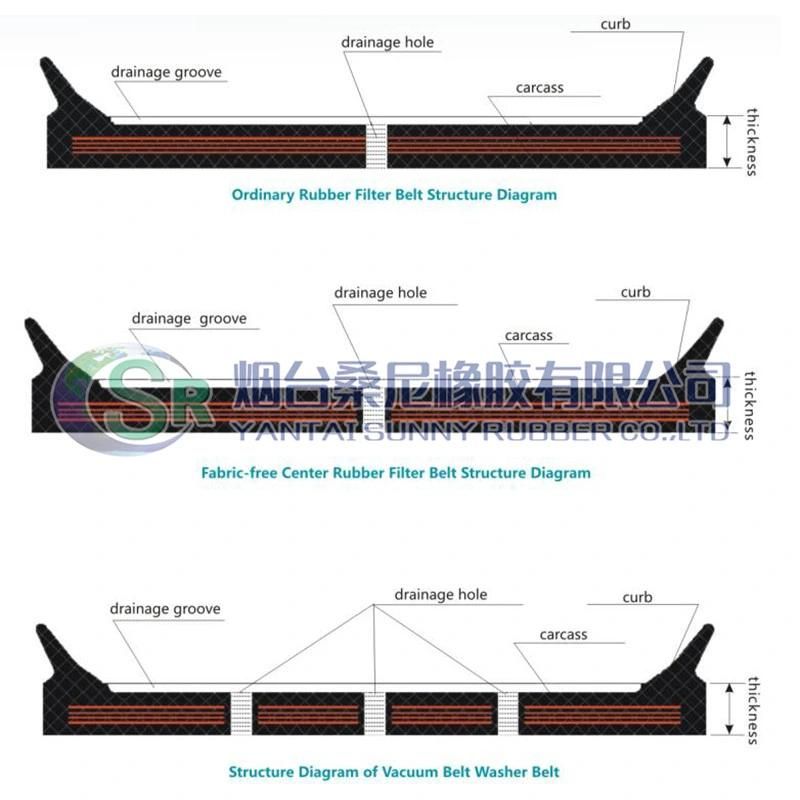

Rubber Filter Belt

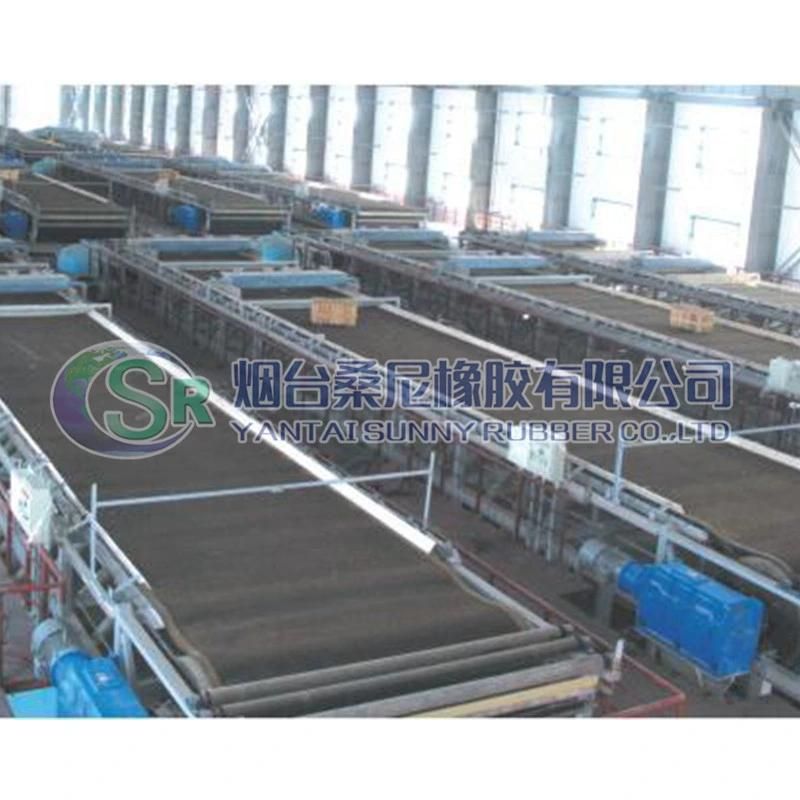

Rubber filter belt is also called rubber drainage belt(vacuum belt), it is key part of vacuum belt filter(HVBF or VBF). The Carcass material of belt is PE/EE, which has excellent qualities like high strength, anti-acid/alkali/petrol/low and high temperature, and the most outstanding feature is low elongation rate under specified load, this can make sure the fabric is not easy to deform.
   According to different working conditions, rubber cover material can use different formulas then to meet different needs. Belt shaping and vulcanization are done in a single operation without the need for an additional splicing step, significantly enhancing belt straightness performance stability.
  Grooves are cutted or molded into top cover of rubber filter belt, and in the  specific middle, there will be drainage holes. When working with vacuum pump, filtrate can go to vacuum box through these holes. The drainage hole part is fabric-free, so that corrosive liquid will not contact fabric to cause delamination, this will prolong the service of a rubber filter belt.








Super Wide Rubbber Filter Belt
With the development of the vacuum belt filter industry, more and more filters need 4m and wider belts. Sunny has the largest vulcanizing machine in China, which can produce belt wide to 6m, meet the market requirement and help customers to save cost.
