En856 4sh 4sp High Pressure Hydraulic Hose for Excavator Mining
Hengyu Group Hydraulic Fluid Technology Hebei Co., Ltd.- Material：Nitrile Rubber
- Capability：Rubber Oil Hose
- Color：Black
- Product Name：En856 4sh 4sp High Pressure Hydraulic Rubber Hose
- Reinforcement：4 Spirals of High Tensile Steel Wires
- Cover：Abrasion Weather Resistant Synthetic Rubber
Base Info
- Model NO.：EN856 4SH 4SP
- Inner Tube：Oil Resistant Synthetic NBR Rubber
- Working Temperature：-40DC to +100DC
- Standard：En856 ISO3862-1
- Application：Engineering, Oil, Mining
- Certificate：ISO9001:2008, API
- Transport Package：Plastic or Woven Bags Packages
- Specification：3,8" to 2" or larger
- Trademark：HENGYU
- Origin：Hebei China
- HS Code：4009210000
- Production Capacity：30, 000 Meters Per Day
Description
kg/mmm mm mm mm mm mm 19 3/4" 18.6 19.8 27.6 29.2 31.4 33.0 420 6090 1680 24360 280 1.55 25 1" 25.0 26.4 34.4 36.0 37.5 39.9 380 5510 1520 22040 340 2.00 31.5 1.1/4" 31.4 33.0 40.9 42.9 43.9 47.1 325 4714 1300 18855 460 2.46 38 1.1/2" 37.7 39.3 47.8 49.8 51.9 55.1 290 4205 1160 16820 560 3.36 51 2" 50.4 52.0 62.2 64.2 66.5 69.7 250 3650 1000 15600 700 4.98
Some Related Reference Standard for you:
1. Wire braided rubber hydraulic hoses:
(1). SAE 100R1AT / EN853 1SN / EN857 1SC.
(2). SAE 100R2AT / EN853 2SN / EN857 2SC.
(3). SAE 100R16.
(4). SAE 100R17.
2. Wire spiralled rubber hydraulic hoses:
(1). SAE 100R9 / EN856 4SP.
(2). SAE 100R10 / EN856 4SH.
(3). SAE 100R13.
(4). SAE 100R15.
(5). SAE 100R12.
3. Fibre / Textile / Cord braided rubber hoses:
(1). SAE 100R7 / EN855 R7.
(2). SAE 100R8 / EN855 R8.
(3). SAE 100R3.
(4). SAE 100R6.
Packaging and Shipping:
The general package of hydraulic rubber hose is plastic or woven bag with pallet under the hose (it is available or not as per customers' requests), which can be seen below. We, however, can also provide special package according to customer's requests.
Company Information:
Who we are: HENGYU:
We are the leading manufacturer specialize in designing and manufacturing different kinds of hydraulic & high-pressure rubber hose and fittings in China with the experience of more than 20 years.
What we do: HENGYU:
We manufacturer hydraulic hoses and connectors according to the ISO9001:2008, ISO/TS 29001 and API Q1. We help our customer develop special and quality goods for their needs.
What are our advantages:

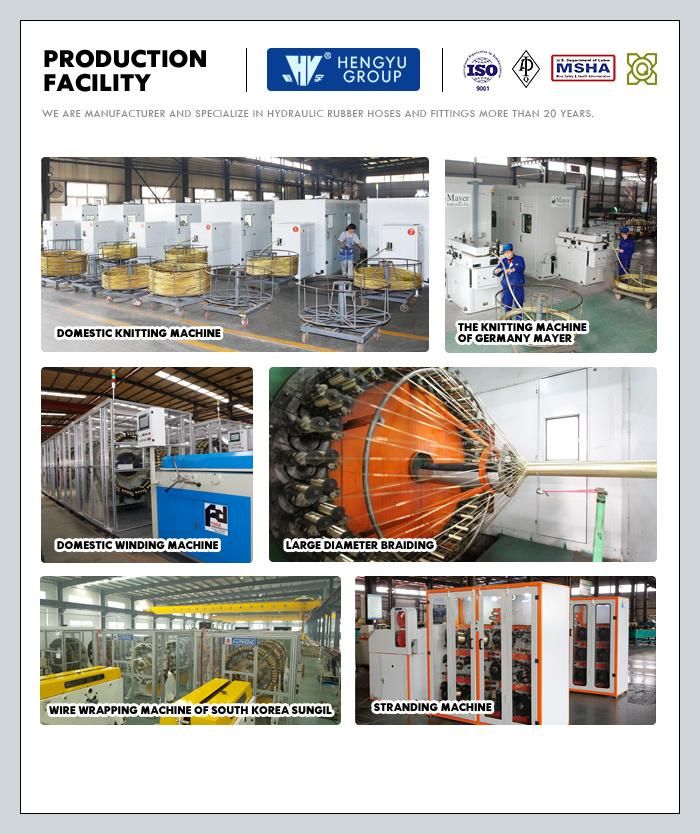

1. MAYER--Knitting machine of Germany
2. SUNGIL--Wire wrapping machine of South Korea

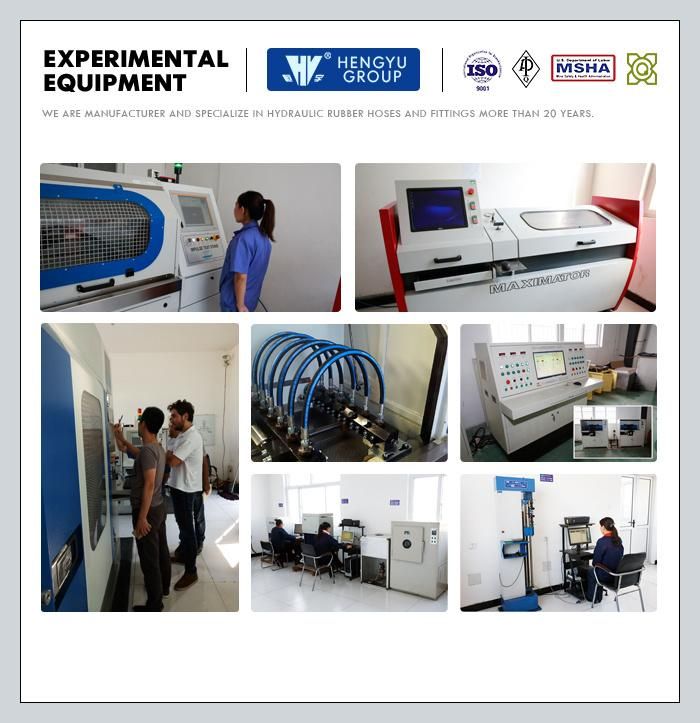

3. MAXIMATOR--Burst-testing machine of Germany
4. BIMAL--Impulse-testing machine of Italy
Our certificates:
1. API Q1 certificate.
2. API 7K.
3. ISO9001:2008
4. MSHA approval.
Contact:
TOM FENG
Tel.: +86-22-58283351
Fax: +86-22-58283352
Mobile: +86-13662185644
