• Model NO.：Hydraulic Brake Hose SAE J1401
• Max Length：50-200m,Roll
• Straightness：Always Straight and Never Curling
• Superiority：Continuous Vulcanization
• Material of Skeleton：Polyester
• Sample：Sample Is Available
• MOQ：500m
• Certificate：ISO9001
• Transport Package：Well Be Packed in Plastic Film ,Woven Bag.
• Specification：ROHS, CE, SGS certificate
• Trademark：OEM or HIGH-QUA
• Origin：Zhejiang
• HS Code：4009410000
• Production Capacity：50000m Per Week

Basic Info.

Model NO. Hydraulic Brake Hose SAE J1401 Max Length 50-200m/Roll Straightness Always Straight and Never Curling Superiority Continuous Vulcanization Material of Skeleton Polyester Sample Sample Is Available MOQ 500m Certificate ISO9001 Transport Package Well Be Packed in Plastic Film /Woven Bag. Specification ROHS, CE, SGS certificate Trademark OEM or HIGH-QUA Origin Zhejiang HS Code 4009410000 Production Capacity 50000m Per Week

Product Description

Manufacturer Superior Quality Hydraulic Brake Hose SAE J1401



Product Features of sae j1401 hydraulic brake hose

Application: for the transportation of watery acid andalkali and other acid alkli agent.Applied for vehicle air brake system.
The application includes the flexible connection between frame and axle, tractor and trailer and between trailers, as well as unprotected air circuit with air pressure coming to 1.0Mpa when the air circuit is possibly to be drageed or bumped.
It's fobidden to use this type of hose when the temperature inside and outside hose falls outside the range -40° C ~ 100° C.

Material construction: EPDM tube and cover with fiber braid reinforcement ( EPDM tube + ployester fiber spiral line + EPDM cover)

Color: Black

Temperature: -10ºC-150ºC

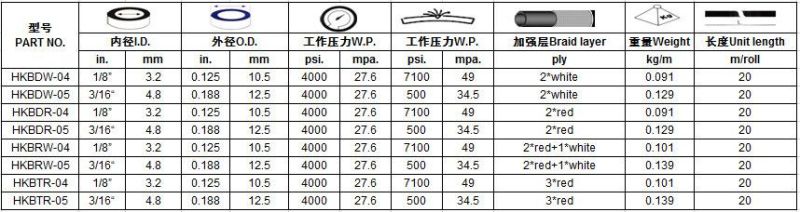

Specification of sae j1401 hydraulic brake hose

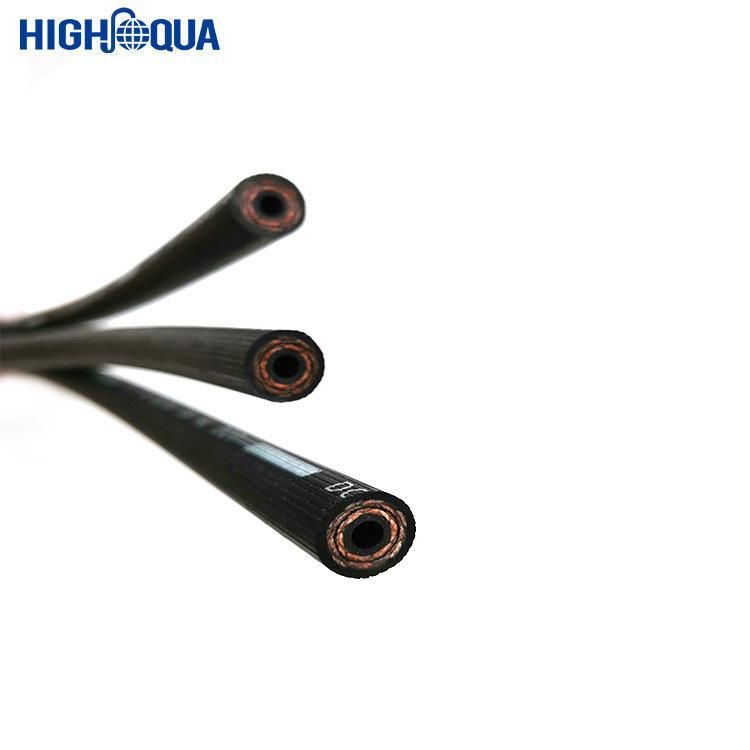

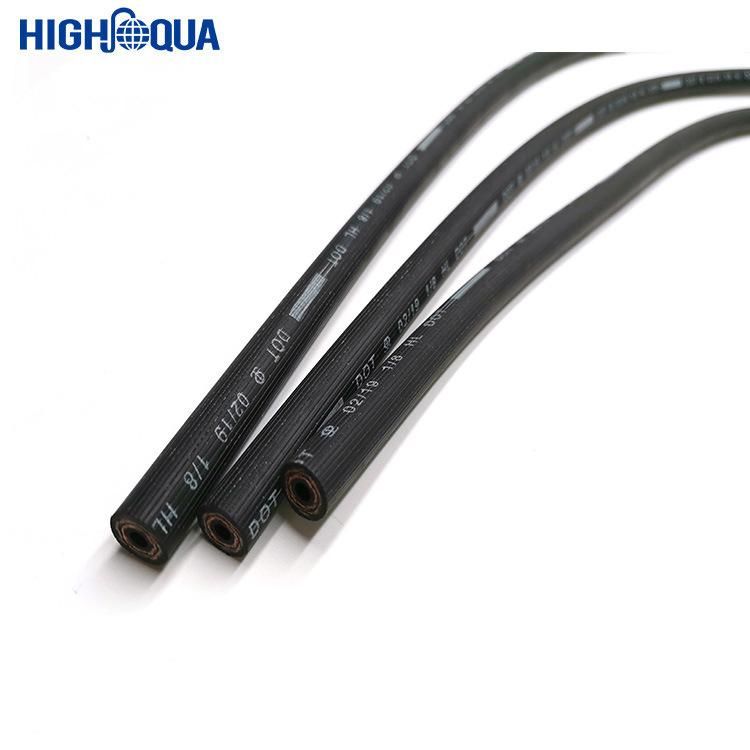

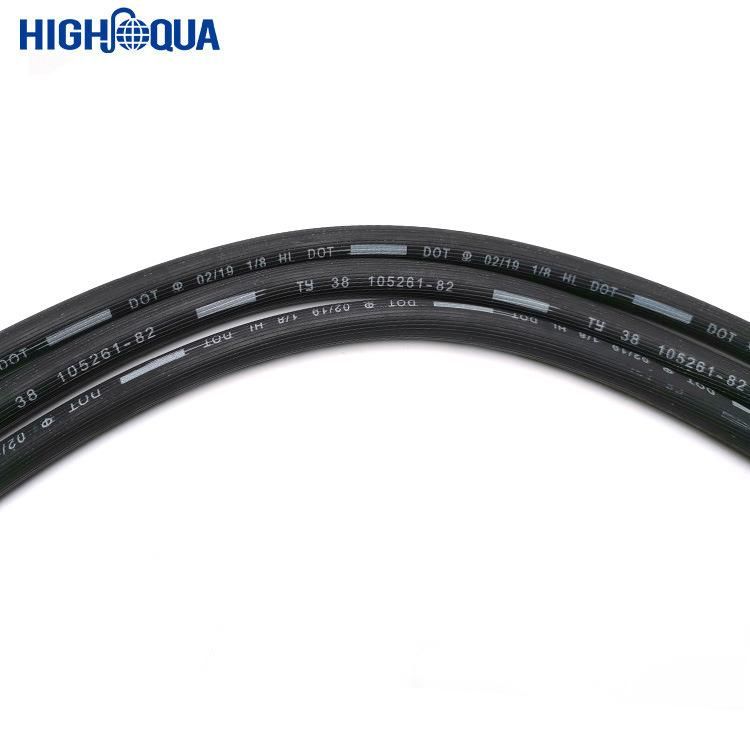

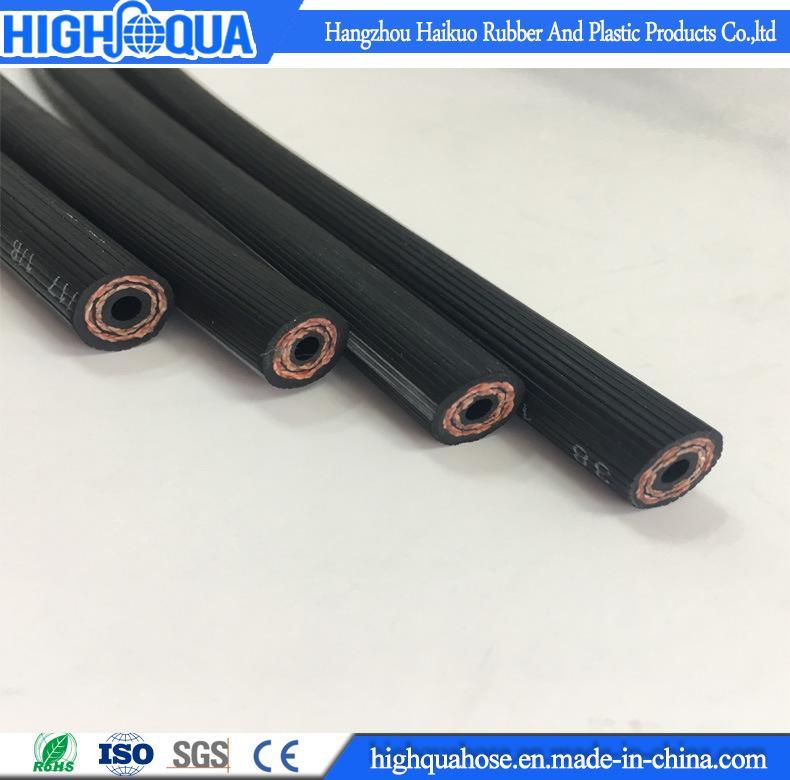

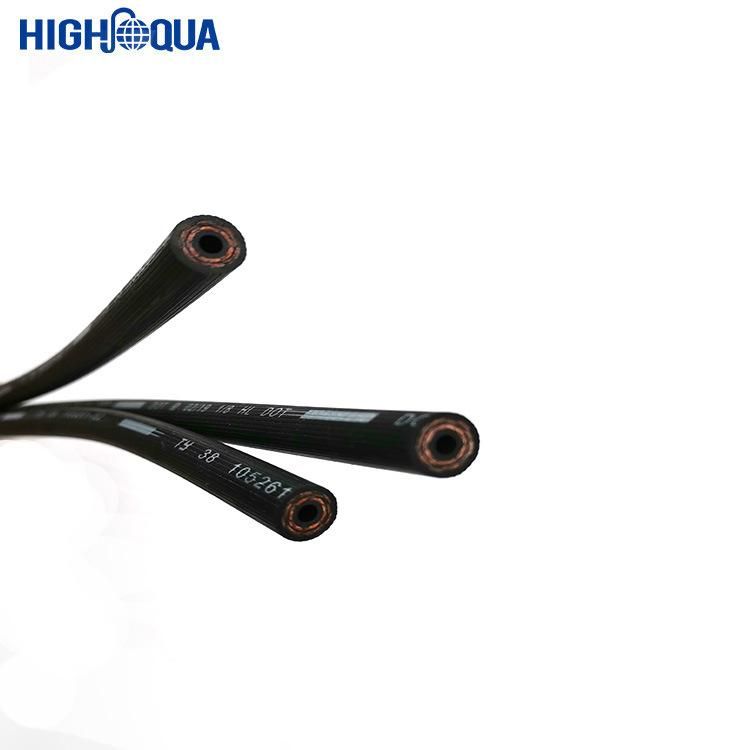

Pictures of SAE J1401

>>>Free Samples are available!
