High Abrasion Resistance Rubber PU Skirting Board Rubber High Efficiency Polyurethane Poly Skirting Board
Xingtai Rongda Imp. & Exp. Co., Ltd.- Material：Nr , Nr + PU
- Application：Machinery, Industrial Component, Electronic Product, Vehicle, Household Appliance, Mine
- Effect：Fixture&Sealing
- Cross-Section Shape：Y-Rings
- Hardness：85±5 Shore
- Certificate：ISO9001:2000
Base Info
- Model NO.：Y T I
- Thickness：10-30mm
- Color：Balck and Red
- Type：Y & T
- Transport Package：Pallet
- Specification：19mm x 190mm
- Trademark：RD
- Origin：China
- HS Code：1305960520
- Production Capacity：100000m,Month
Description
Basic Info.
Model NO. Y T I Thickness 10-30mm Color Balck and Red Type Y & T Transport Package Pallet Specification 19mm x 190mm Trademark RD Origin China HS Code 1305960520 Production Capacity 100000m/MonthProduct Description
Rubber pu sheet in belt sides skirt board for conveyorRubber Skirting Board is used mainly in the mining industry as a side skirt on conveyor belt system.
Natural skirting rubber / skirting board is a black natural rubber designed for use as a conveyor skirting or similar application. ( Note: Skirting rubber can also be supplied in shorter lengths and can be cut to custom width strips as required. )
Conveyor system polyurethane skirt rubber board has a double layer of skirting rubber compound from polyurethane and rubber. The inner wear resistant of polyurethane exceeds the wear life of traditional rubber on skirting, whilst outer anti-dust integral molding can adapt to belt vibration and maintain the correct pressure to effectively seal the belt.
Dust Seal Rubber Skrting Board For Belt Conveyor
1. Dual sealing
2. Polyurethane layer: Superior wear resistant
3. Non damage the belt
4. Easy installation and replacement

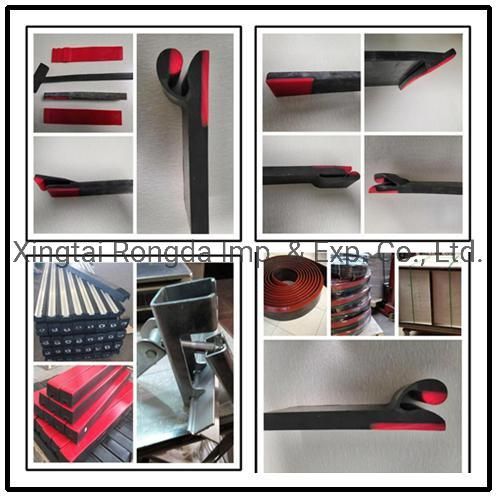

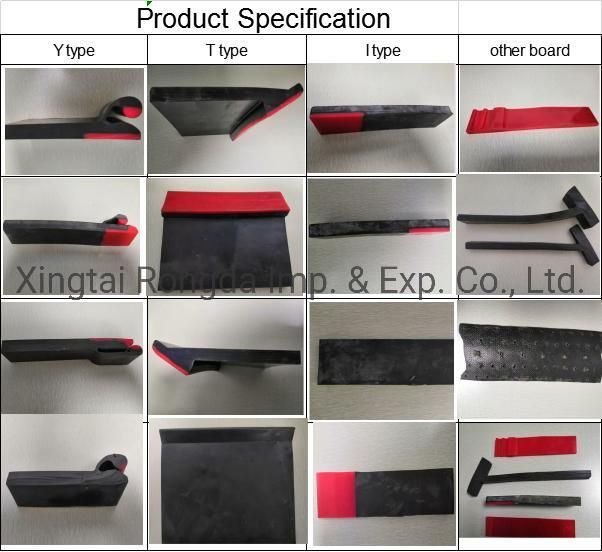

5. T type, Y type and I type ,flat type for choose
6. Short deliver time
7. Custom service / OEM service
Technical Data
| Material | Natural Rubber + Polyurethane |
| Polyurethane Layer | Yes |
| Model Number | T /Y/E/F/Flat or customized |
| Thickness | 3-30mm |
| Width | 100-450mm |
| Length/roll | 25m/30m or customized |
| Elongation at break | 300% |
| Working temperature | -30°C-- 70°C |
| Polyurethane Hardness | 75-80 shore A |
| Rubber Hardness | 55-60 shore A |
| Tensile strength | 2.5-6.0Mpa |
| System No | Thichness.mm | Widthness.mm | Material | Length.M |
| RD-QY4S-15 | 15 | 280/190/180/170/150/120 | NR+PU | 25M/ROLLER OR OEM |
| RD-QY4S-16 | 16 | 300/250/220/200/190/180/170 | NR+PU | 25M/ROLLER OR OEM |
| RD-QY4S-19 | 19 | 300/190 | NR+PU | 25M/ROLLER OR OEM |
| RD-QT60--15 | 15 | 150 | NR+PU | 25M/ROLLER OR OEM |
| RD-QT60--16 | 16 | 300/250 | NR+PU | 25M/ROLLER OR OEM |
| RD-QT60--18 | 18 | 300 | NR+PU | 25M/ROLLER OR OEM |
| RD-QI008-8 | 8 | 300/250 | NR+PU | 25M/ROLLER OR OEM |
| RD-QI0010 | 10 | 300/250/200 | NR+PU | 25M/ROLLER OR OEM |
| RD-QI0012 | 12 | 300/250 | NR+PU | 25M/ROLLER OR OEM |
| RD-QI0015 | 15 | 300/200/180/150/120 | NR+PU | 25M/ROLLER OR OEM |
| RD-QF1006 | 10-06 | 200 | PU | 25M/ROLLER OR OEM |
| RD-QE | OEM | OEM | NR OR PU | 25M/ROLLER OR OEM |

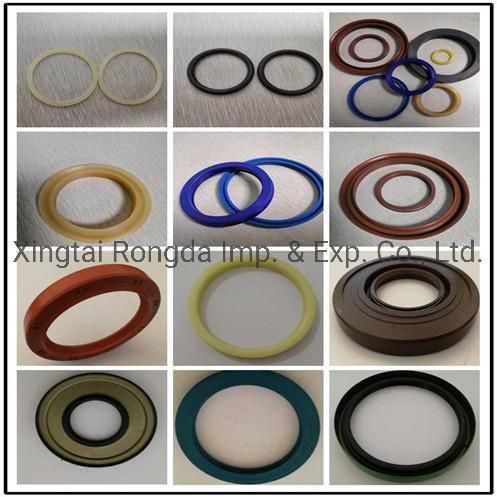

Packing and other rubber product:
Welcome inquiry me when you are in need.
