Air Rubber Hose for Jack Hammer/Rock Drill/Air Compressor
Hangzhou Paishun Rubber and Plastic Co., Ltd.- Material：Nr and SBR
- Capability：Rubber Air Hose
- Color：Black, Blue, Red, Orange
- Inner Tube：Nr,SBR,NBR,EPDM
- Reinforcement：High Tensile Polyester Fiber Braided
- Cover Tube：SBR&EPDM&NBR
Base Info
- Model NO.：5,16"~2"
- Temperature：-30 Degree +80 Degree C
- Surface：Smooth, Groove Surface
- Length：50m,100m
- Working Pressure：20bar
- Burst Pressure：60bar
- Inner Diameter：3,16"~2"
- Resistant：UV, Abrasion, Aging Resistant
- Application：Jack Hammer,Rock Drill,Air Compressor
- Transport Package：Well Packed by Striped or OPP Fims
- Specification：3,16" to 2"
- Trademark：Passion or as per customer′s request
- Origin：Zhejiang, China
- HS Code：40093100
- Production Capacity：400, 000m Each Month
Description
Overview
Product Description
Cover: NR & SBR synthetic rubber.
Temperature: -30ºC - +80ºC
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Application: Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
Standard length: 50m, 100m.
Product Parameters
Inner Diameter Outer Diameter Working Pressure Burst Pressure Length Measurement Weight inch mm mm bar psi bar psi m cbm/roll kg/m 3/16" 5 11.5 20 300 60 900 100 0.02 0.15 1/4" 6 13 20 300 60 900 100 0.025 0.17 5/16" 8 15 20 300 60 900 100 0.03 0.22 3/8" 10 17 20 300 60 900 100 0.04 0.26 1/2" 13 21 20 300 60 900 100 0.07 0.4 5/8" 16 24 20 300 60 900 50 0.06 0.45 3/4" 19 29 20 300 60 900 50 0.07 0.7 1" (1b) 25 36 12 180 36 540 50 0.09 0.85 1" (2b) 25 37 20 300 60 900 50 0.1 0.95 1-1/4" 32 44 10 150 30 450 50 0.16 1.4 1-1/2" 38 51 10 150 30 450 50 0.20 1.7 2" 51 65 10 150 30 450 20 0.20 2.2

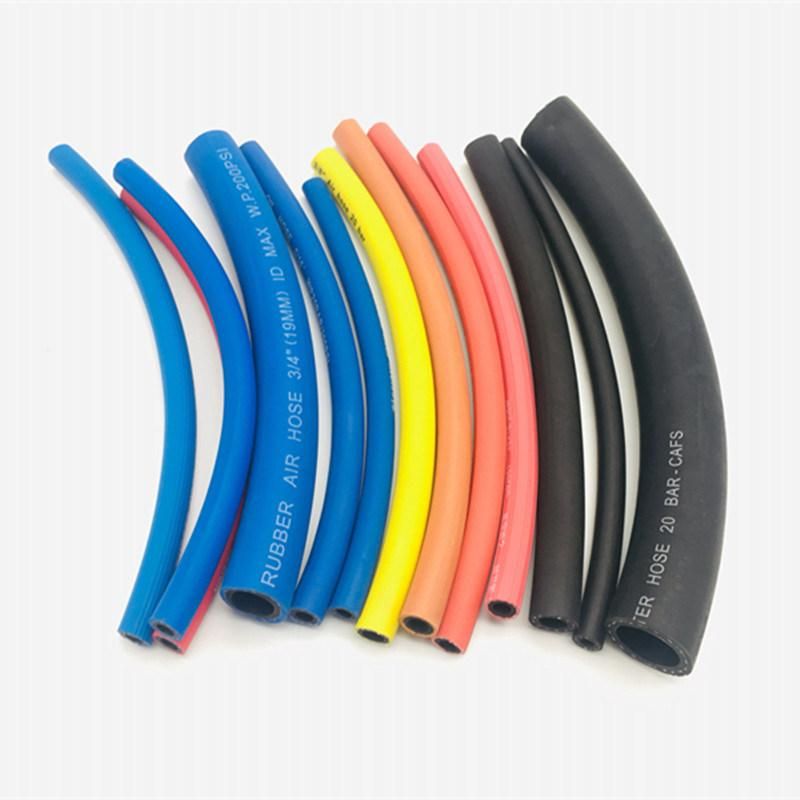

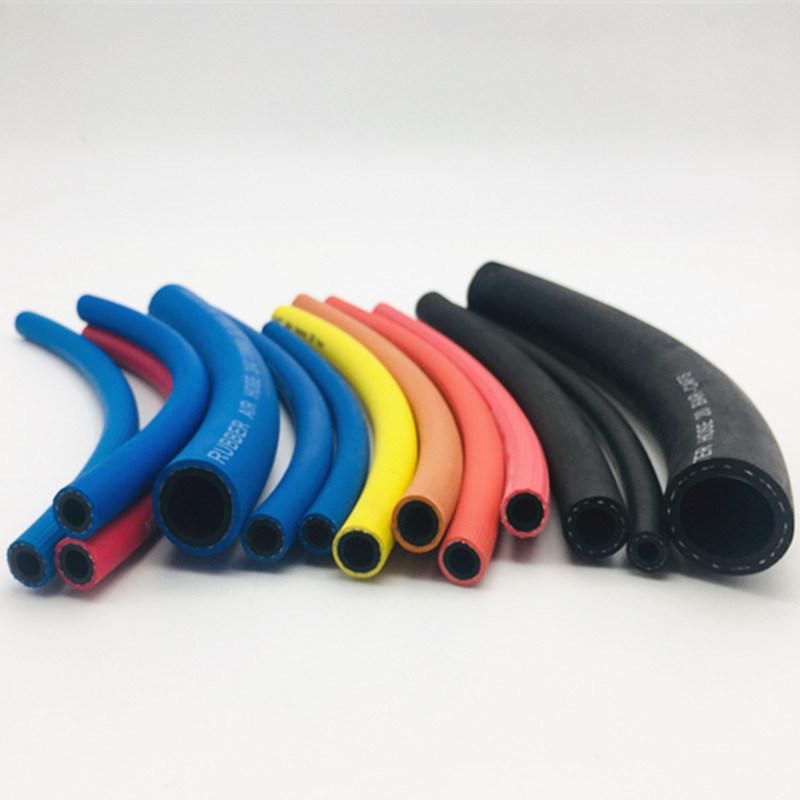

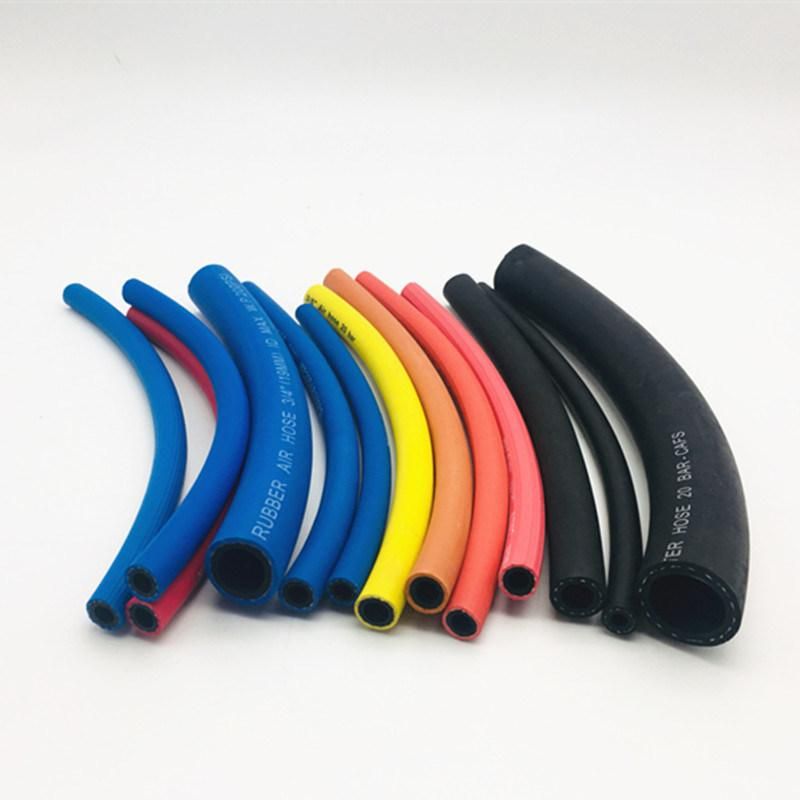

Detailed Photos
Company Profile
Hangzhou Paishun Hose Technology Co., Ltd. is located in Suqian Industrial Zone, the native place of Lord Xiang Yu of Western Chu County before the Qin Dynasty. Its plant zone is a pleasant place with easy access by different ways of transport, 70KM to Lianyungang Sea Port, 60KM to Xuzhou International Airport.
The factory covers a land of over 3 hectares, and the workshops occupy a surface of 25000 square meters. We own complete production lines of rubber mixing process, cold feeding material extrusion process, micro wave vulcanization process, and high speed braiding process, etc.
We produce mainly the industrial hoses like Air Hose, Water Hose, Oil Hose, Welding Hose, Hydraulic Hose and Assemblies. Paishun, being a rapidly growing enterprise focusing on the professional production of pure rubber hoses and braided rubber hoses, its yearly production capacity reaches 10 million meters.
Our key policy is "enterprise may thrive with the technology, and may last with good quality". So we put much investment in the research team, and in advanced testing laboratory equipments. We now use a series of tensile testing machine, vulcanization testing device, aging testing chest, pressure testing machines to ensure the effective quality control. All these testing machines and related procedures may form a complete quality control system, beginning from the selection of the raw materials till the end step. Thus, we wish our products can satisfy in maximum our customers, and help them to gain more and more market share.

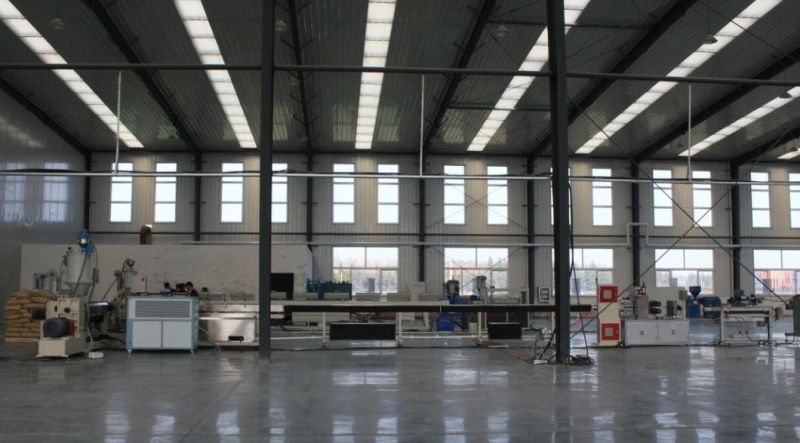

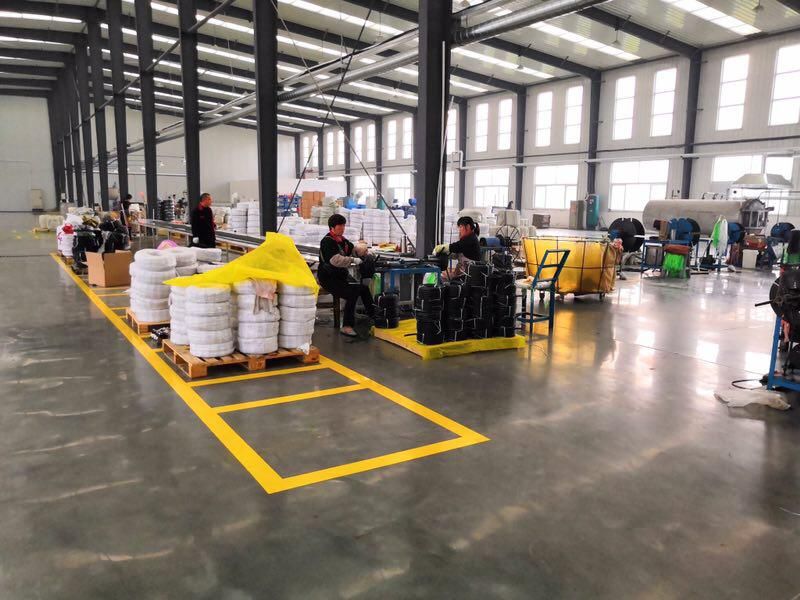

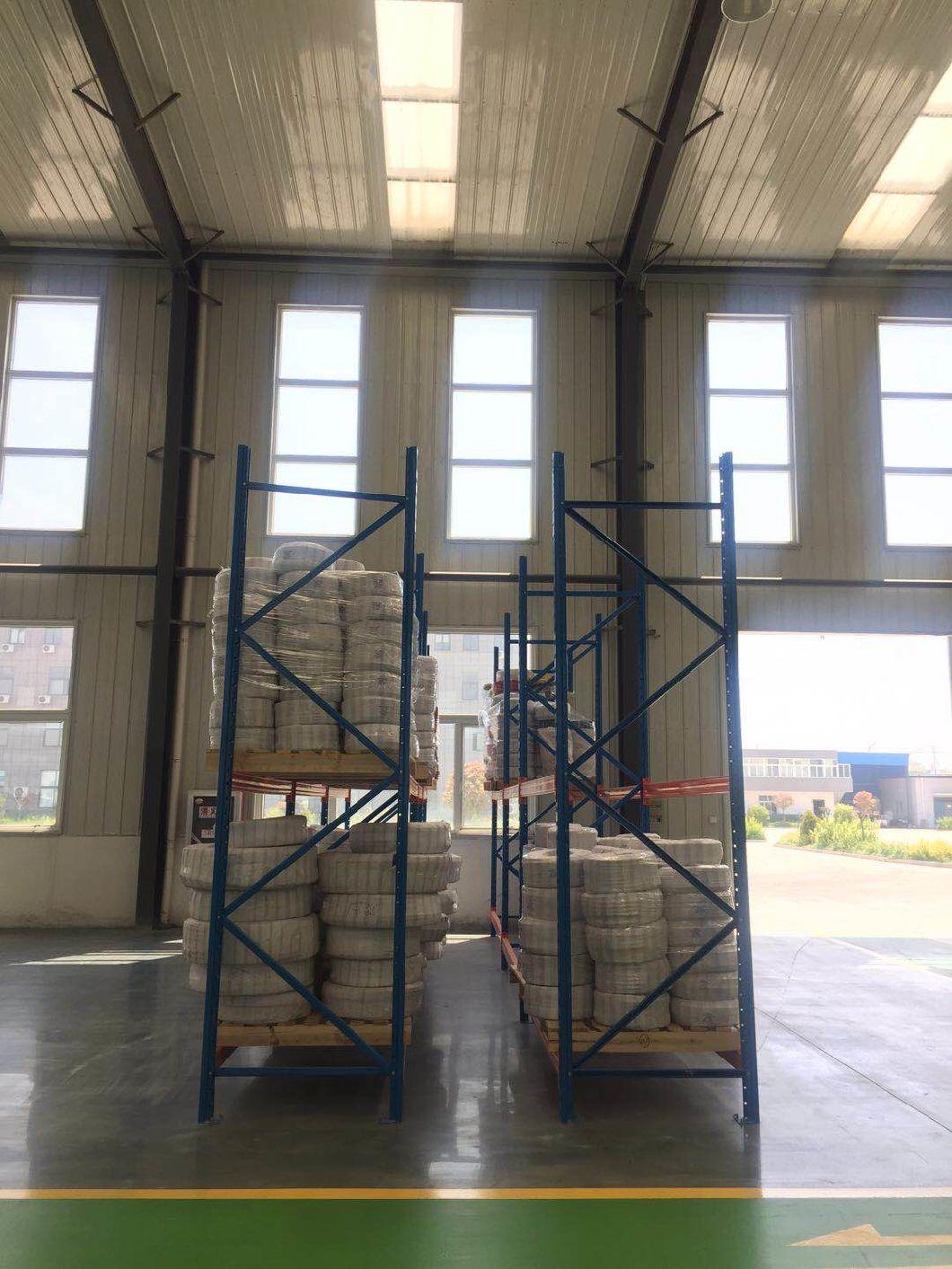

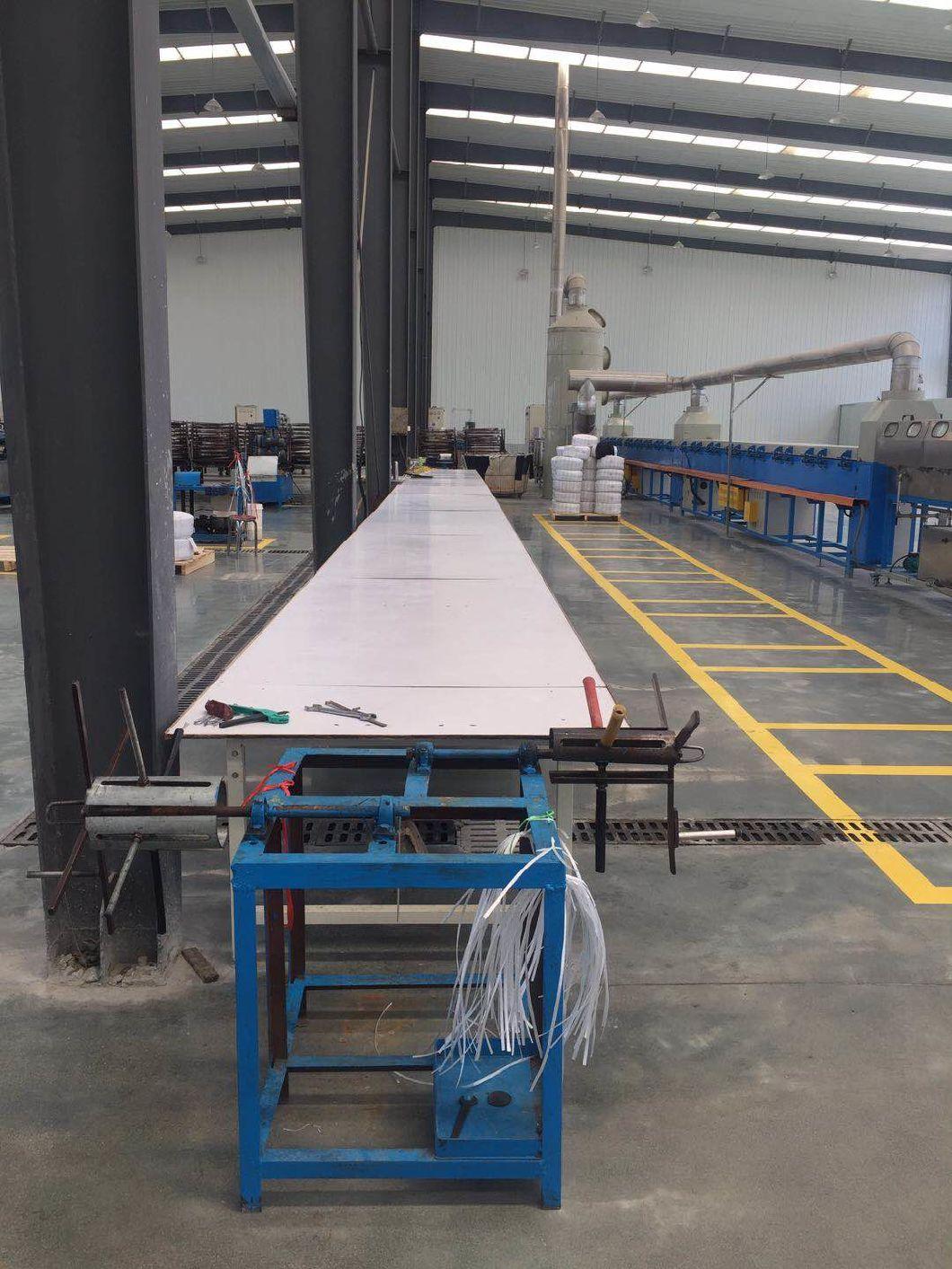

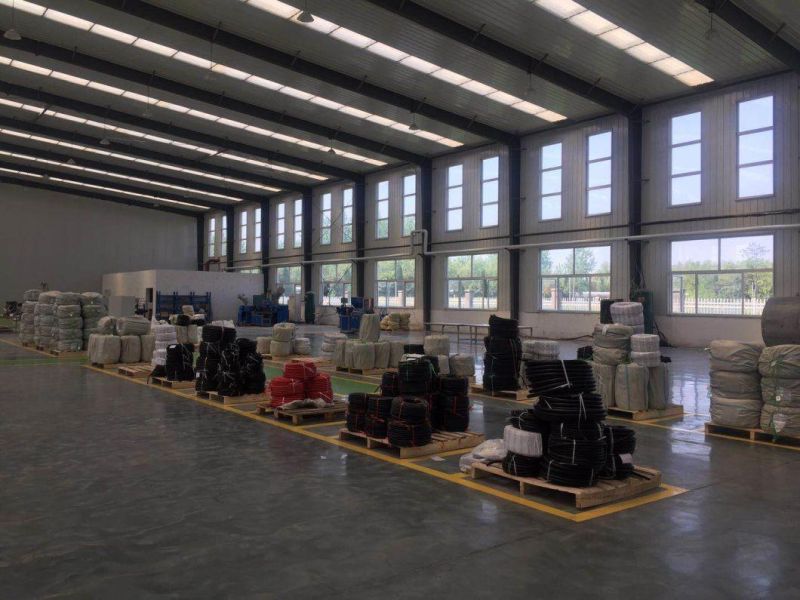

Paishun hose factory
If you have any inquiry, please feel free to contact us. :)
Construction: Tube: NR& SBR synthetic rubber.
Reinforcement: High tensile polyester fiber braided.Cover: NR & SBR synthetic rubber.
Temperature: -30ºC - +80ºC
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Application: Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
Standard length: 50m, 100m.
Product Parameters
Specification:
Detailed Photos
Company ProfileISO9001 Certified hose manufacturer.
Hangzhou Paishun Hose Technology Co., Ltd. is located in Suqian Industrial Zone, the native place of Lord Xiang Yu of Western Chu County before the Qin Dynasty. Its plant zone is a pleasant place with easy access by different ways of transport, 70KM to Lianyungang Sea Port, 60KM to Xuzhou International Airport.
The factory covers a land of over 3 hectares, and the workshops occupy a surface of 25000 square meters. We own complete production lines of rubber mixing process, cold feeding material extrusion process, micro wave vulcanization process, and high speed braiding process, etc.
We produce mainly the industrial hoses like Air Hose, Water Hose, Oil Hose, Welding Hose, Hydraulic Hose and Assemblies. Paishun, being a rapidly growing enterprise focusing on the professional production of pure rubber hoses and braided rubber hoses, its yearly production capacity reaches 10 million meters.
Our key policy is "enterprise may thrive with the technology, and may last with good quality". So we put much investment in the research team, and in advanced testing laboratory equipments. We now use a series of tensile testing machine, vulcanization testing device, aging testing chest, pressure testing machines to ensure the effective quality control. All these testing machines and related procedures may form a complete quality control system, beginning from the selection of the raw materials till the end step. Thus, we wish our products can satisfy in maximum our customers, and help them to gain more and more market share.
Paishun hose factory
If you have any inquiry, please feel free to contact us. :)
