SAE 100r7/En 855 R7 Wire Braid Reinforcement Hydraulic Rubber Hose
Hangzhou Paishun Rubber and Plastic Co., Ltd.- Material：Nylon
- Capability：Rubber Oil Hose
- Color：Black
- Size：1,8"~1"
- Inner Tube：Nylon
- Reinforcement：Synthetic Fiber
Base Info
- Model NO.：SAE 100R7
- Cover Compound：Urethane
- Temperature Range：-40ºC~+100ºC
- Certification：ISO9001 Ce
- W.P：69bar~172bar
- B.P：276bar~689bar
- Transport Package：Well Packed by Poly Stripes or as Request.
- Specification：Nylon
- Trademark：PASSION or OEM
- Origin：Zhejiang China
- HS Code：4009210000
- Production Capacity：200, 000meters,Month
Description
Part
In
Hose Size ID DIN Dash Size
Hose OD
Max.Working Pressure
Min.Burst Pressure
in
mm
mpa
mpa
GR7-02
1/8
3.3 Din Dash Size
0.335
8.5
17.2
68.9
GR7-03
3/16
4.8 Din Dash Size
0.427
10.8
20.7
82.7
GR7-04
1/4
6.4 Din Dash Size
0.51
13
20.7
82.7
GR7-05
5/16
7.9 Din Dash Size
0.594
15.1
17.2
68.9
GR7-06
3/8
9.5 Din Dash Size
0.669
17
15.5
62.1
GR7-08
1//2
12.7 Din Dash Size
0.816
20.7
13.8
55.2
GR7-12
3/4
19 Din Dash Size
1.067
27.1
8.6
34.5
GR7-02
1
25.4 Din Dash Size
1.34
34
6.9
27.6

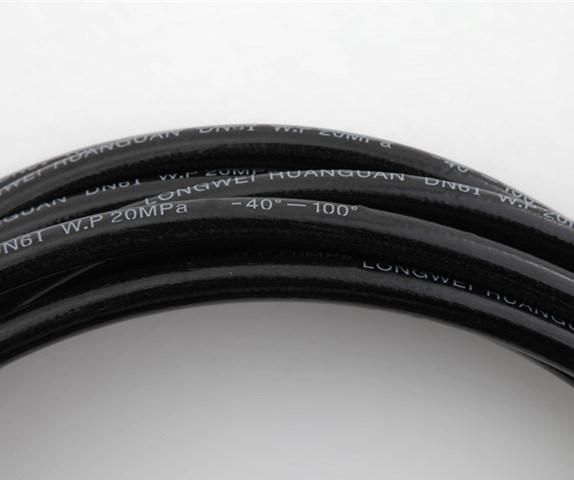

Picture of Product
Packaging
Well packed by poly stripes or as your requirement.
Shipping
We ship the goods by express, by air, by sea or according to your requirement.
Our Services
1. We can provide matching hose connection.
2. We can provide free hose sample.
3. Hydraulic rubber hose is also served.
4. Other sizes can be customized.
5. We can print words on the hose according to your requirement.
6. We can package the goods according to your requirement.
Certifications
