• Model NO.：680S-2500S
• Certificate：ISO9001:2008, Bureau Veritas Certification
• Types：680s ,800s,1000s,1250s,1400s,etc
• Guarantee：1 Year (Wear Parts Excluded)
• The Strength Specifications：9-25MPa
• Condition：New
• Transport Package：PVC Water Proof Cloth or Customized
• Specification：DIN; AS; RMA; SABS; BS; JISK
• Trademark：Huayue
• Origin：Baoding City Hebei Province China
• HS Code：4010120000
• Production Capacity：2500meters,Day

Basic Info.

Model NO. 680S-2500S Certificate ISO9001:2008, Bureau Veritas Certification Types 680s ,800s,1000s,1250s,1400s,etc Guarantee 1 Year (Wear Parts Excluded) The Strength Specifications 9-25MPa Condition New Transport Package PVC Water Proof Cloth or Customized Specification DIN; AS; RMA; SABS; BS; JISK Trademark Huayue Origin Baoding City Hebei Province China HS Code 4010120000 Production Capacity 2500meters/Day

Product Description

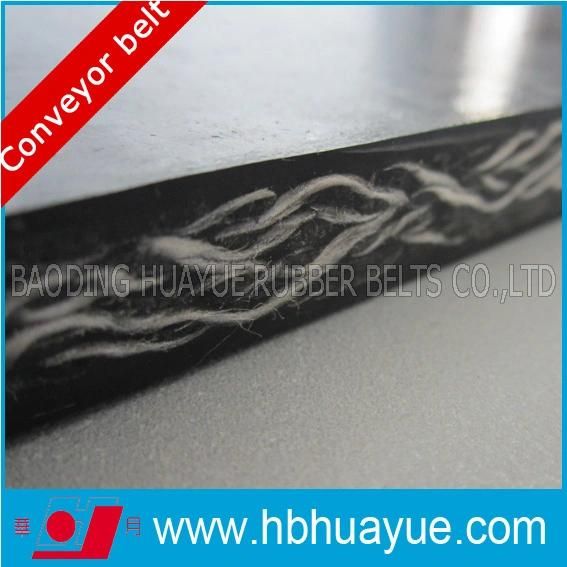

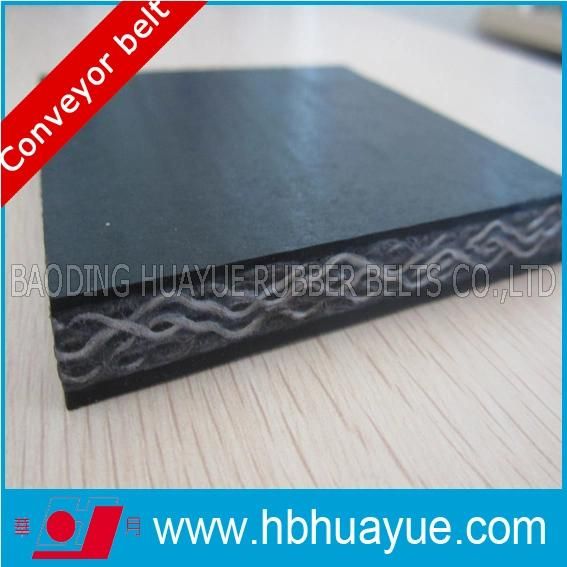

PVC conveyor belt
Usage:
It is mainly applicable for underground well haulage of coal mines, and also the conveyance of materials for metallurgical and chemical industries, The whole core fire retardant conveyor belt is divided in to Type: PVC, PVG.

PVC type conveyer belt's upper and lower layers are PVC coating cover, single-sided tape thickness: ≥1.0mm; PVG type belt's upper and lower layers are nitrile rubber and PVC, single-sided tape thickness: 1.5mm-4.5mm.

PVC type conveyer belt's inclined angle: <16°;

PVG conveyer belt's inclined angle: <20°.

Type and technical parameter of PVC conveyer belt:

Standard type(MT914-2008)       680s     800s    1000s    1250s    1400s    1600s







Degree                                            4th       5th          6th          7th           8th        9th



Breaking strength≥,N/mm
(The Slope <16°)

Longitudinal                                    680      800       1000      1250       1400       1600





Transverse                                      265      280        300        350          350        400



Tensile yield≥,%

Longitudinal                                                                  15

Transverse                                                                     18

Advising Mindiameter
of Transmission Drum                 320         400      500       500          630          1000


Type and technical parameter of PVC conveyer belt:



Standard type(MT914-2008)       680s     800s    1000s    1250s    1400s    1600s







Degree                                            4th       5th          6th          7th           8th        9th



Breaking strength≥,N/mm
(The Slope<20°)

Longitudinal                                    680      800       1000      1250       1400       1600





Transverse                                      265      280        300        350          350        400



Tensile yield≥,%

Longitudinal                                                                  15

Transverse                                                                     18

Advising Mindiameter
of Transmission Drum                 400         500      630        750         750        1000

For more details,please inquiry us!



Polyester conveyor belt, (EP)
Nylon conveyor belt, (NN)
Cotton conveyor belt, (CC)
Sidewall conveyor belt (SW)
Steel Cord conveyor belt ( ST )
Oil Resistance conveyor belt, (OR and MOR)
Hot Resistance conveyor belt, (HR)
Heat Resistance conveyor belt, (HR/ FR)
Endless belts
Conveyor roller, idler
Conveyor Pulley, frame,bracket etc
