5/16" Car Tire Inflator Coil Air Hose with M16X1.5 Metric Thread
Hangzhou Paishun Rubber and Plastic Co., Ltd.- Material：Nr& SBR Synthetic Rubber.
- Capability：Rubber Air Hose
- Color：Black and Red
- Size：1,4", 5,16", 3,8"
- Inner Rubber Material：SBR Synthetic Rubber.
- Outer Rubber Material：SBR Synthetic Rubber.
Base Info
- Model NO.：5,16"
- Reinforcement：High Tensile Polyester Fiber Braided.
- Temperature：-30 C to + 70 C
- Application：Mainly Used for Conveying of Air, Insert Gas, Cons
- Standard Length：8m,10m,12m,15m, 20m
- Working Pressure：300psi
- Burst Pressure：900psi
- Fittings：German or Universal 3 in 1 Quick Coupler and Plug.
- Product Name：5,16" Car Tire Inflator Coil Air Hose with M16X1.5
- Transport Package：Well Packed by Good Quality Cartons or Braided Bag
- Specification：8mm*15mm
- Trademark：PASSION
- Origin：China
- HS Code：4003100000
- Production Capacity：15000PCS,Month
Description
Burst PressureLength Weight inch mm mm bar psi bar psi m/pc kg/pc PAI-04-01 1/4" 6 13 20 300 60 900 10 1.8 PAI-04-02 1/4" 6 13 20 300 60 900 20 3.5 PAI-05-01 5/16" 8 15 20 300 60 900 10 2.3 PAI-05-02 5/16" 8 15 20 300 60 900 20 4.5 PAI-06-01 3/8" 10 17 20 300 60 900 10 2.8 PAI-06-02 3/8" 10 17 20 300 60 900 20 5.4
Specification of fittings:
*German or Universal 3 in 1 quick coupler and plug.
*1/4 bsp female swivel ends (both ends).
* Euro style long bard clip on tyre inflator (one side) +screw on m16 x 1.5mm test point adaptor valve (other side)

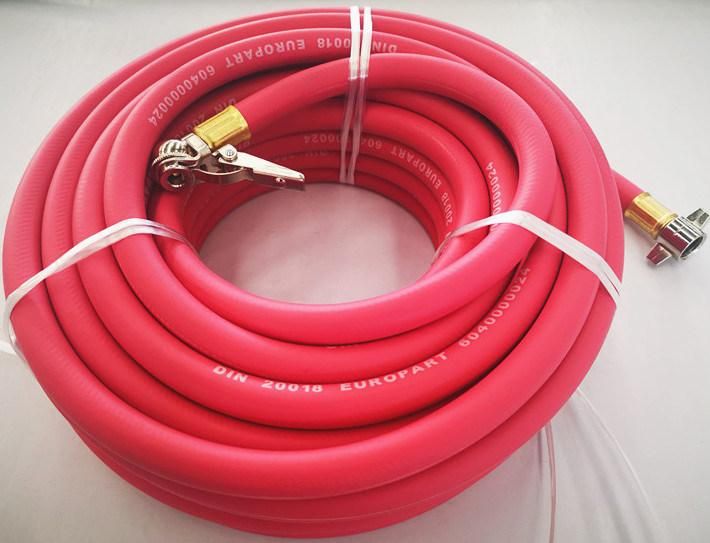

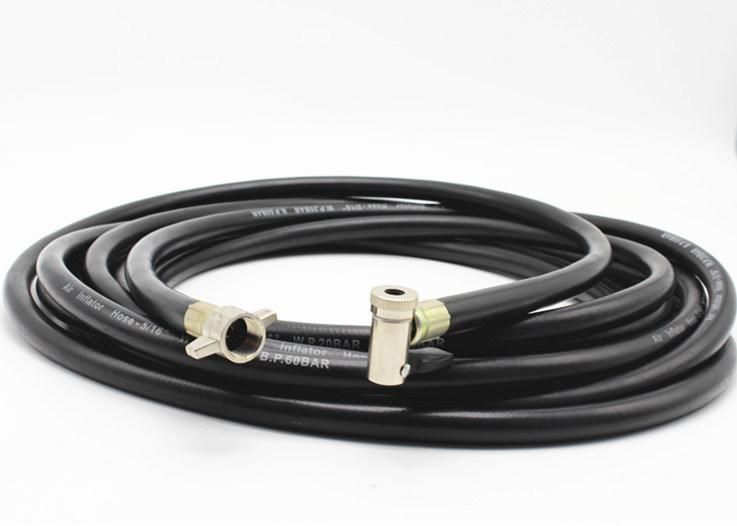

Hose Pictures:

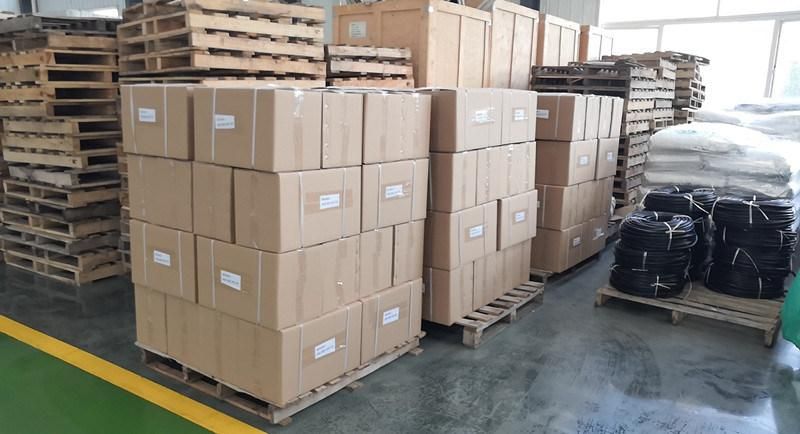

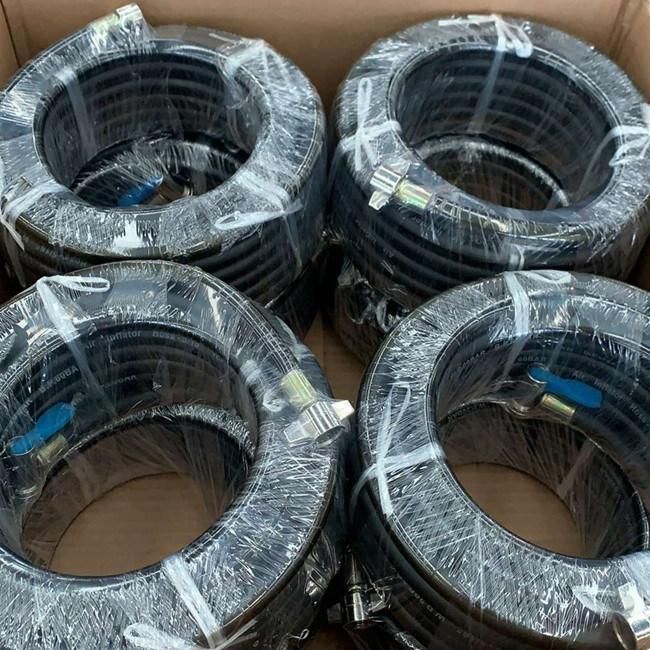

Packages:
Office Staffs:
Workers of morning shift:

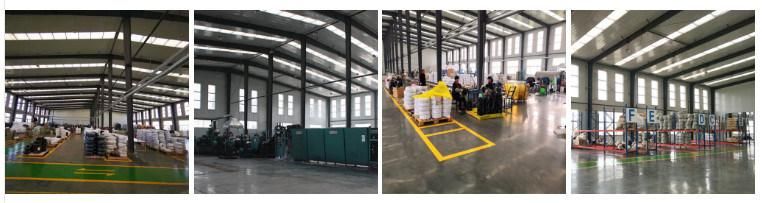

Dust-Free Production Plant:
Paishun is a leading rubber hose manufacturer in east China for over 13 years, with professional and permanent technical service and support for you.
We own complete production lines of rubber mixing process, cold feeding material extrusion process, micro wave vulcanization process, and high speed braiding process, etc.
Certifications:
Paishun has various types of certificates, such as ISO9001, CE, RoHS, etc.
Exhibition:
Main Market:
