• Model NO.：DB-QB150, DB-QB190
• Color：Black,Red
• Product Material：Natural Rubber,Nr or Other Rubber Material
• Sample：Free Sample
• Our Advantage：Factory of Dual Rubber Skrit
• Height：H=150mm, H=190mm
• Roll Length：20 Meter Per Roll
• Type：Conveyor Skirt Rubber, Dual Skirt Rubber
• Certificate：ISO9001:2008
• Use：to Keep Material on Conveyor Belt and Prevent Spil
• Delivery Time：7 Days
• Key Word：Conveyor Skirt Board
• Transport Package：Pallet or Crate
• Specification：ISO9001: 2008, SGS
• Trademark：JZDB
• Origin：Jiaozuo, Henan, China
• HS Code：4008210000
• Production Capacity：2000tons , Year

Basic Info.

Model NO. DB-QB150, DB-QB190 Color Black/Red Product Material Natural Rubber/Nr or Other Rubber Material Sample Free Sample Our Advantage Factory of Dual Rubber Skrit Height H=150mm, H=190mm Roll Length 20 Meter Per Roll Type Conveyor Skirt Rubber, Dual Skirt Rubber Certificate ISO9001:2008 Use to Keep Material on Conveyor Belt and Prevent Spil Delivery Time 7 Days Key Word Conveyor Skirt Board Transport Package Pallet or Crate Specification ISO9001: 2008, SGS Trademark JZDB Origin Jiaozuo, Henan, China HS Code 4008210000 Production Capacity 2000tons / Year

Product Description

Conveyor Rubber Skirt Board Dual Skirt Rubber
Why Choose US:
1. Factory dedicated to producing conveyor skirt board and other conveyor accessories.
2. SG audited supplier.
3. Proven quality in real applications.

Dual seal skirt rubber, double seal rubber skirt, pu rubber skirt board.


Double lips skirt rubber comprises of natural rubber and polyurethane rubber, double layer structure ensures goog containment.



About Conveyor Skirt Board
Conveyor skirt board is installed conveyor loading points to eliminate material spillage and provide a positive dust seal.


Feature and benefits of double rubber skirt board:
1. This sealing system is a low-maintenance design that provides an effective seal without the application of downward force onto the belt.
2. It is recommended that appropriate wear liners be installed on the inside of the chute to protect the sealing system from material side-loading forces.

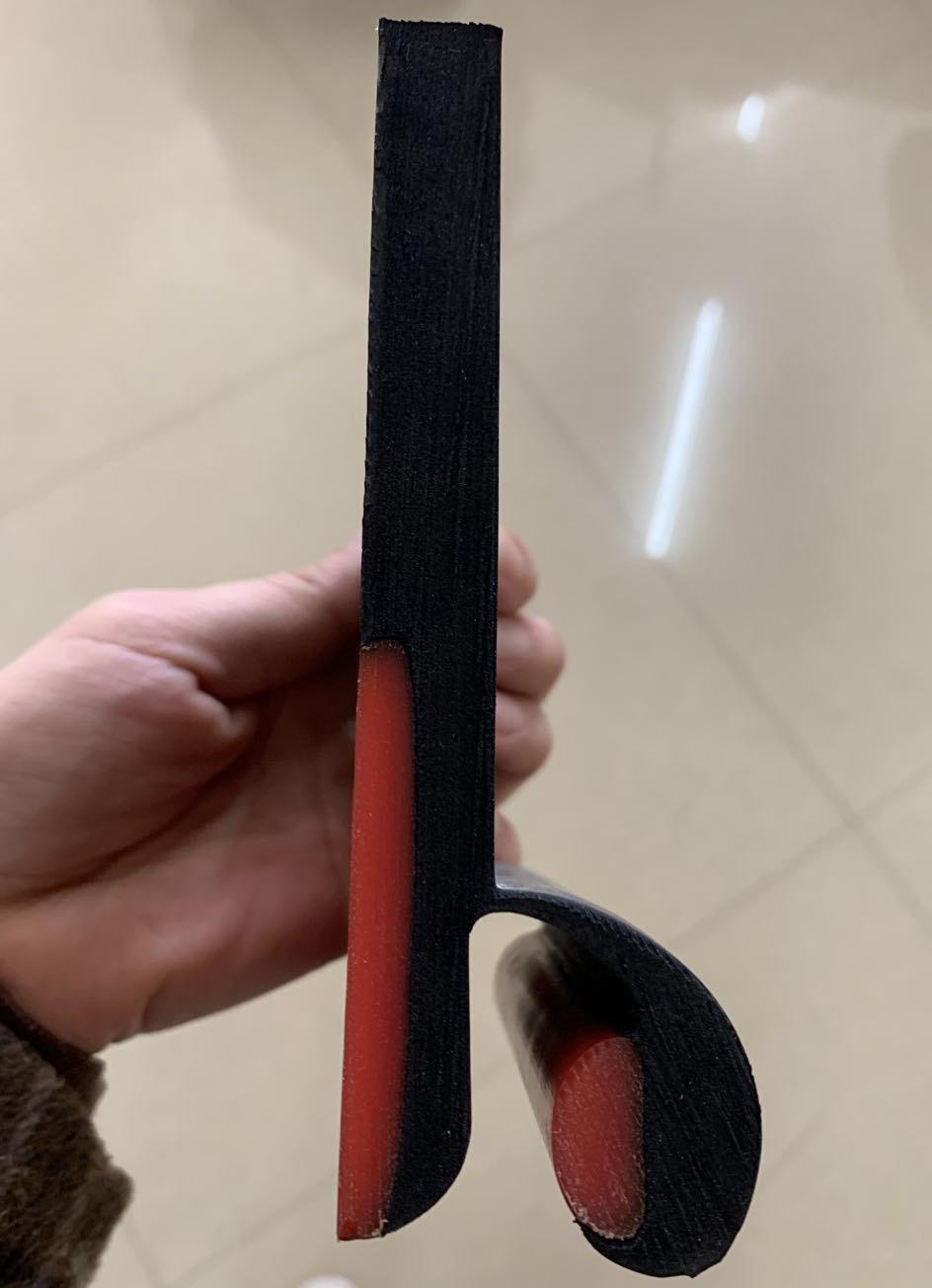

3. It is composed of a single strip of rubber fabricated with an integral "outrigger" strip to form two sealing barriers.
4. This skirting will provide dual sealing effectiveness while allowing the simple installation of single-strip systems.

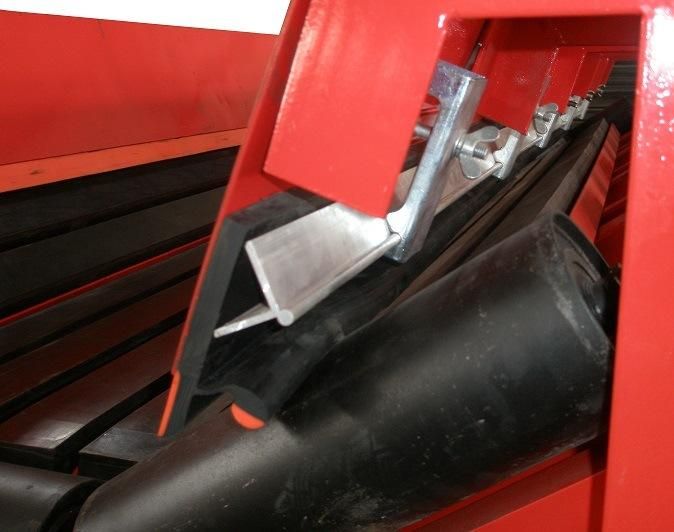

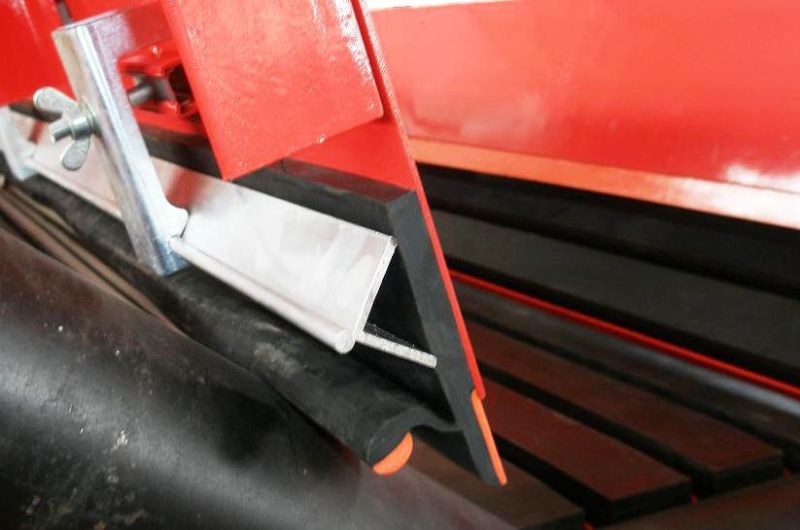

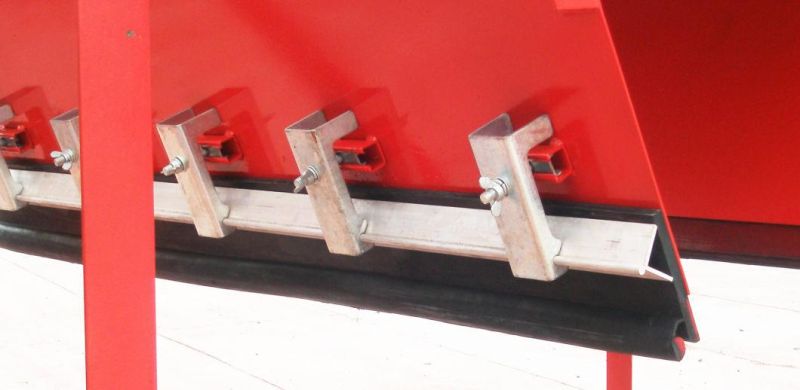

5. The sealing strip is clamped against the metal chute wall above the belt.
6. The strip's primary leg is installed to touch the belt, forming a flexible wall to contain fugitive material. The sealin strip's "outrigger" leg will be installed so it lies on the outside of the belt, away from the material load.

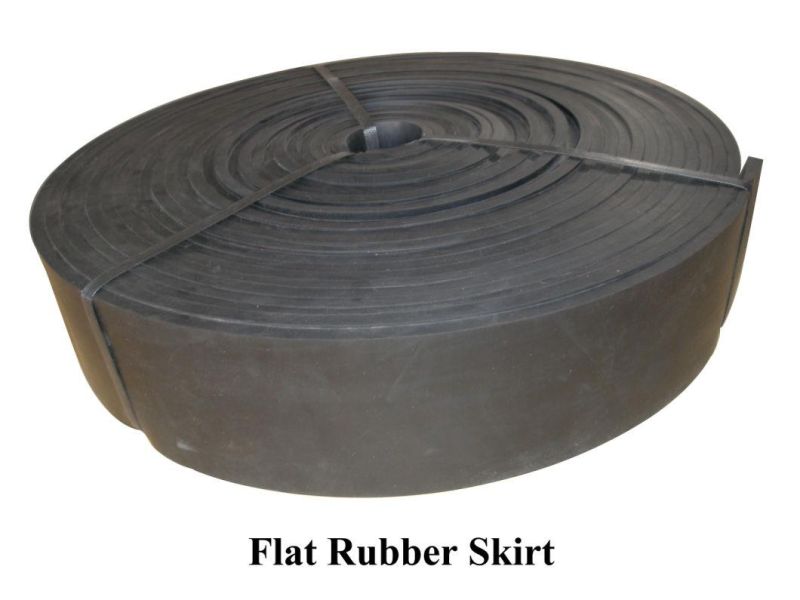

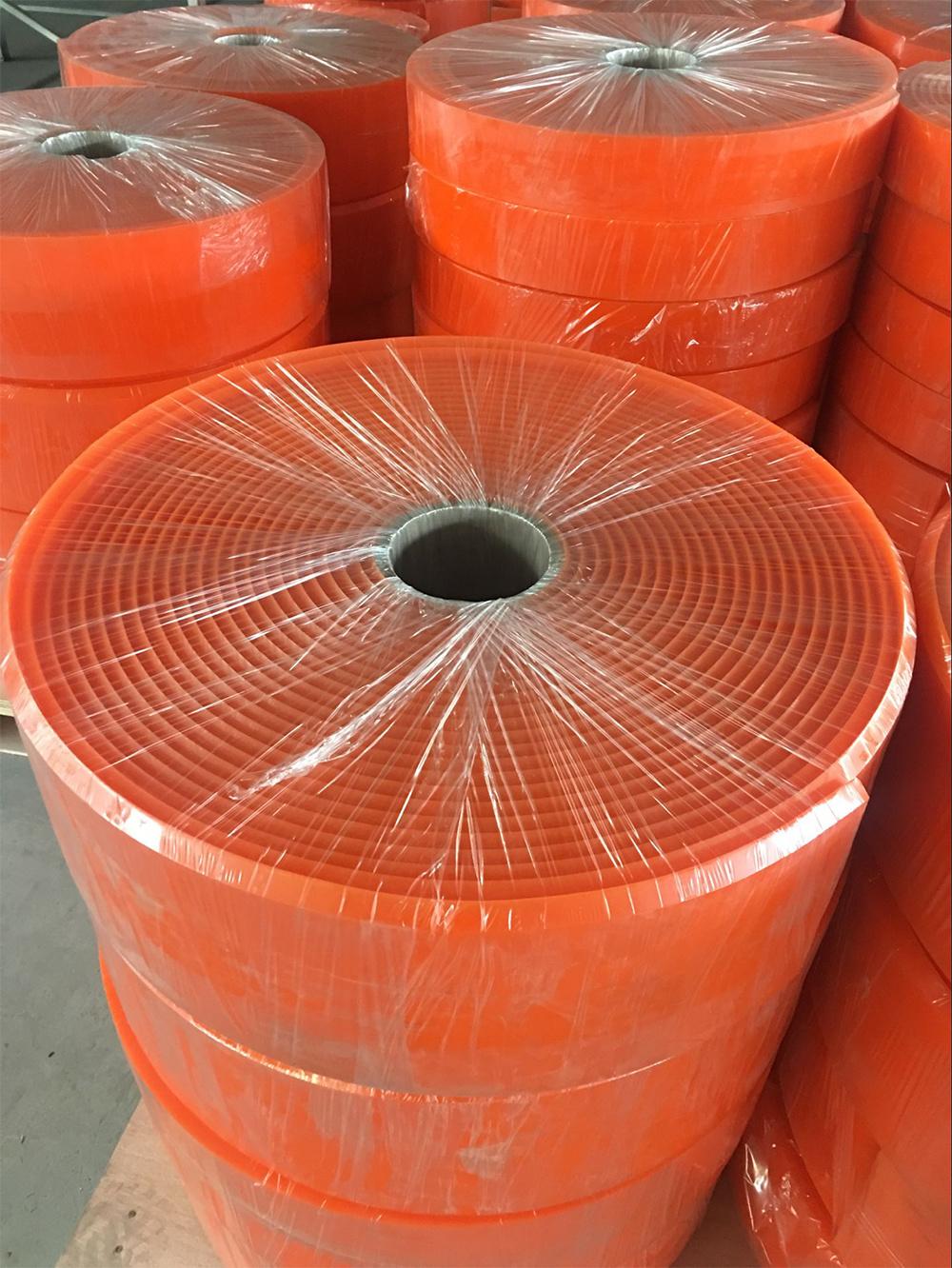

We also provide conveyor polyurethane skirt, natural rubber skirt, t-type rubber skirt, neoprene rubber skirt, etc.



Conveyor natural skirting rubber, conveyor rubber skirt duro 50a.

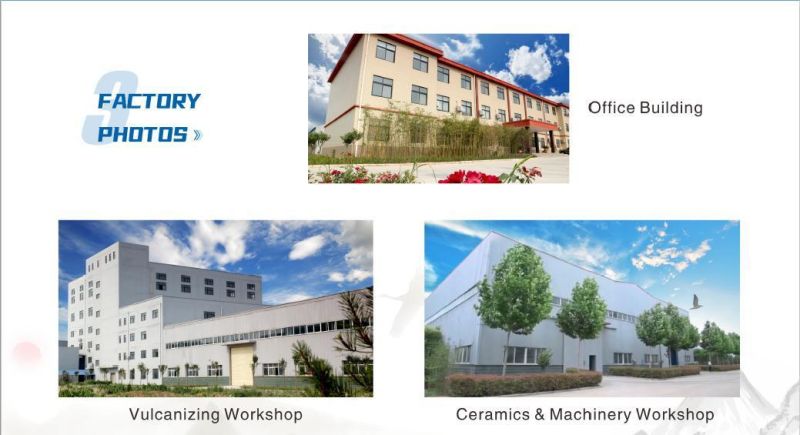

About Our Factory:
1. A manufacturer with over 20 years experiences.
2. Products exported to over 30 countries.
3. Our products are widely used in mining and quarrying industries, i.g. iron ore, coal mine, cement plant, power plant, gold mine, etc.






More information, just contact us.
