50-70shore a Black Vbl Rubber Mounting, Shock Absorber (3A4013)
Sanhe Bestrubber Import & Export Co., Ltd.- Material：Rubber+Steel
- Effect：Shock Absorber
- Cross-Section Shape：as Per Drawing
- Transport Package：Packing in Carton
- Specification：Standard
- Trademark：3A Rubber
Base Info
- Model NO.：3A4013
- Origin：China
- HS Code：84663000
- Production Capacity：10000pieces,Month
Description
Basic Info.
Model NO. 3A4013 Origin China HS Code 84663000 Production Capacity 10000pieces/MonthProduct Description
50-70shore A Black VBL Rubber Mounting, Shock Absorber (3A4013)
Description: the VBLR rubber mounting is one of bell-type shock absorber screw with professional technology and inimitable formulation and full sets of injection moulds without mould line and nothing mould cost.. The top is bolt screw made with high quality zinc coated metal sheet, the bottom is support metal sheet with 2 stockets, the middle is high quality rubber of NBR, NR with full adhesive between the rubber and metal parts. It is excellent properties of anti-vibration on axial and lateral for generators, engines, motors system, small rubber compress but higher load, and it help to get more safety with special design of safety lock. Apply to anti-vibration and shock absorption for all kinds generators, engines, motors, compressor, pump, refrigerator and other metal system.
Specifications:
material: galvanized metal + rubber
rubber: NR, NBR(default is NR 60shore A)
quality: industrial grade
color: natural galvanized color
top: metal bolt with screw thread
middle: high tensile rubber
bottom: metal seat with holes
surface: smooth
tensile strength: 8-12Mpa
hardness: 50, 60, 70+/-5shore A
elongation: 350%
density: 1.4g/cm3
working temperature: -40°C - +120°C
working frequency: 500-3000HZ
size: standard without mould cost
packing in cartons
OEM & customized size are agreed
***when you order, pls confirm the quantity and product code number or your drawings***

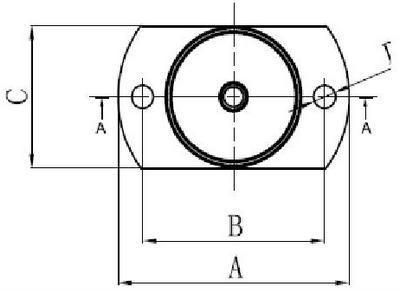

| Item | G | E | H | B | A | Average Load (kgs/mm) | Max Load (kgs) | Max Compression (mm) |
| 7050VBLRK | 70 | 50 | M12 | 100 | 120 | 65 | 325 | 5.0 |
| 7050VBLRM | 70 | 50 | M12 | 100 | 120 | 82 | 413 | 5.0 |
| 7050VBLRH | 70 | 50 | M12 | 100 | 120 | 103 | 515 | 5.0 |
| 8050VBLRK | 88 | 50 | M12 | 112 | 140 | 55 | 440 | 8.0 |
| 8050VBLRM | 88 | 50 | M12 | 112 | 140 | 90 | 720 | 8.0 |
| 8050VBLRH | 88 | 50 | M12 | 112 | 140 | 130 | 1040 | 8.0 |
| 10580VBLRK | 100 | 80 | M20 | 138 | 174 | 50 | 600 | 12.0 |
| 10580VBLRM | 100 | 80 | M20 | 138 | 174 | 90 | 1080 | 12.0 |
| 10580VBLRH | 100 | 80 | M20 | 138 | 174 | 145 | 1740 | 12.0 |
| 12564VBLRK | 124 | 64 | M20 | 177 | 215 | 85 | 850 | 10.0 |
| 12564VBLRM | 124 | 64 | M20 | 177 | 215 | 140 | 1400 | 10.0 |
| 12564VBLRH | 124 | 64 | M20 | 177 | 215 | 220 | 2200 | 10.0 |
| 15280VBLRK | 152 | 80 | M20 | 190 | 232 | 105 | 1260 | 12.0 |
| 15280VBLRM | 152 | 80 | M20 | 190 | 232 | 200 | 2400 | 12.0 |
| 15280VBLRH | 152 | 80 | M20 | 190 | 232 | 320 | 3840 | 12.0 |
