• Model NO.：1,4′′
• Origin：China
• HS Code：4009310000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. 1/4′′ Origin China HS Code 4009310000 Production Capacity 5000PCS/Year

Product Description

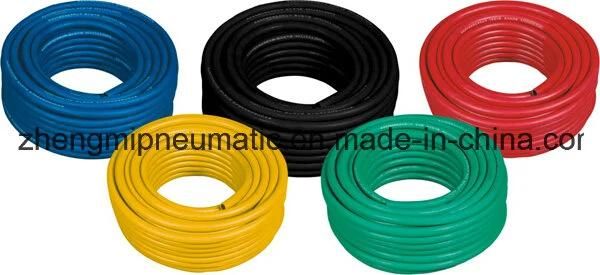

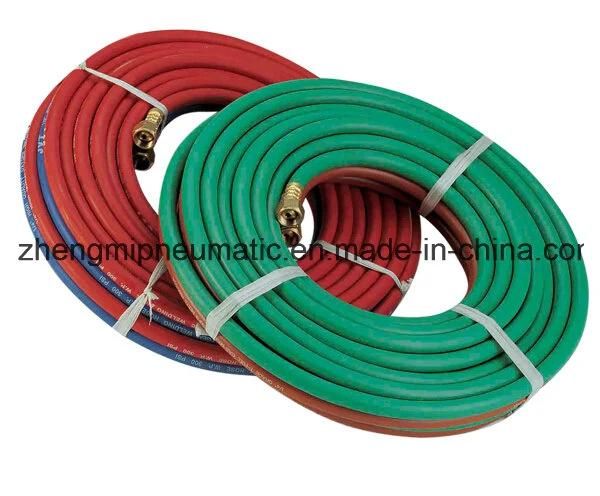

 HIGH PRESSURE WELDING TWIN HOSE(RED&GREEN)

Industrial-grade rubber oxygen&cetylene hose

Application:
Suitable for oxygen,acetylene welding,and air plasma high-pressure tracheal conveying equipment.

Features:
This product uses excellent senior natural rubber,technical improvement and professional formula,unique coating imported high tenacity polyester mesh layer,pressure reach 60kg/cm2, durable Durable,the four seasons is soft,high temperature resistance,
freezing,acid salt wear resistance,anti-aging,can in-10~70 degree under the environment of normal use,(in line with national testing standard)

Routine size for refernce:
The size, soft, color,lengh etc. accourding to custom-made

	inch size	iner OD*Outer OD (mm)	Working pressure (Bar )	Burst pressure (Bar)	Length (m)
DB0613	1/4''	6*13	300	900	10/20/30/50/100
DB0815	5/16''	8*15	300	900	10/30/50/100
DB17	3/8''	10*17	300	900	20/30/50
DB1321	1/2''	13*21	300	900	10/20/30/50
DB0608	1/4''&5/16''	(6+13mm)*(8+15mm)	300	900	30/50
DB0813	5/16*1/2''	(8+15mm)*(13+21mm)	300	900	30/50
