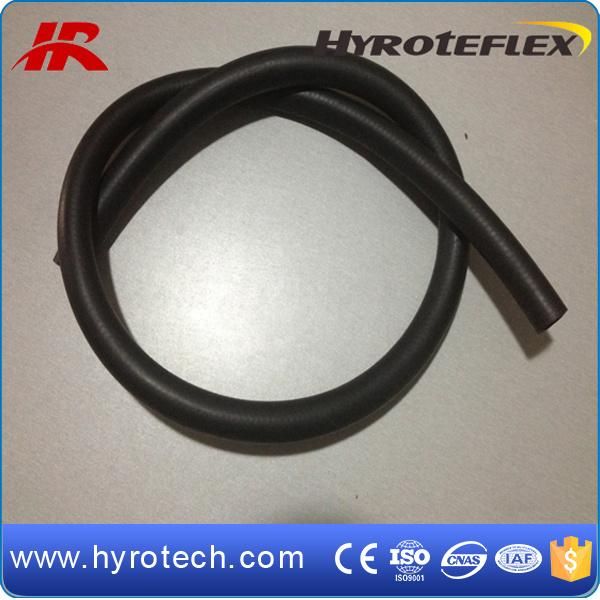

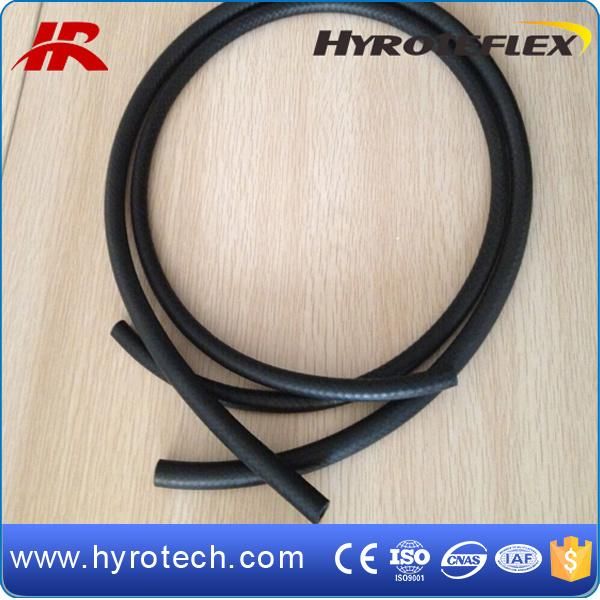

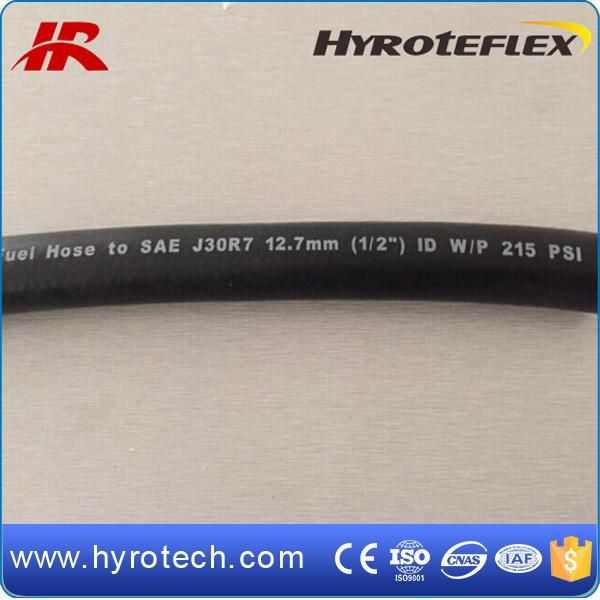

SAE 100r7/En855 R7 Standard/Automobile Hydraulic Hose
Qingdao Hyrotech Rubber & Plastic Products Co., Ltd.- Material：Nitrile Rubber
- Capability：Rubber Oil Hose
- Color：Color
- Temperature：-40ºC-+100ºC
- Certificate：ISO Ce SGS API
- Transport Package：PVC Film or as Your Request
Base Info
- Model NO.：SAE 100R7,EN855 R7 STANDARD
- Specification：1,8"-1"
- Trademark：HYROTEFLEX
- Origin：Qingdao
- HS Code：40092100
- Production Capacity：3000000m,Years
Description
I.DRefer to O.D W.P B.P Approximate Weight inch mm inch mm MPA PSI MPA PSI Kg/m Lbs/ft 1 1/8 3.2±0.2 0.35 9±0.3 2.06 300 8.27 1200 0.078 0.12 2 5/32 4±0.2 0.4 10±0.3 2.06 300 8.27 1200 0.092 0.14 3 3/16 4.8±0.2 0.43 11±0.3 2.06 300 8.27 1200 0.108 0.16 4 1/4 6.3±0.2 0.5 12.7±0.3 2.06 300 8.27 1200 0.134 0.20
5 5/16 8.0±0.3 0.56 14±0.3 2.06 300 8.27 1200 0.147 0.22 6 3/8 9.5±0.4 0.63 16±0.4 2.06 300 8.27 1200 0.182 0.27
7 15/32 12±0.4 0.75 19±0.5 2.06 300 8.27 1200 0.238 0.35 8 1/2 12.7±0.5 0.78 20±0.5 2.06 300 8.27 1200 0.262 0.39 9 5/8 16±0.5 0.94 24±0.6 1.03 150 4.12 600 0.351 0.52 10 3/4 19±0.6 1.13 28.8±0.8 1.03 150 4.12 600 0.515 0.77 11 1 25.4±0.6 1.38 35±0.8 1.03 150 4.12 600 0.637 0.95
Note: Sizes can be customizedAPPLICATION SELECTION GUIDESAE30R2 Coupled and Uncoupled Synthetic Rubber Tube and Cover SAE30R3 Lightweight Braided Reinforced Lacquer, Cement ,or Rubber Covered Hose SAE30R5 Wire Inserted Synthetic Rubber Tube and Cover SAE30R6 Low-Pressure Coupled and Uncoupled Synthetic Rubber Tube and Cover SAE30R7 Low-Pressure Coupled and Uncoupled Synthetic Rubber Tube and Cover SAE30R8 Low-Pressure Coupled and Uncoupled Synthetic Rubber Tube and Cover SAE30R9 Fuel Injection Hose Medium-Pressure Coupled&Uncoupled Synthetic Rubber Tube& Cover SAE30R10 In-Tank, Low-Pressure, Uncoupled Fuel Hoses SAE30R11 Low Permeation Fuel Fill, Vent, and Vapor Hose SAE30R12 Low Permeation Fuel Feed and Return Hose SAE30R13 Diesel and Biodiesel Fuel Feed and Return Hose SAE30R14 Low Permeation, Low Pressure Coupled and Uncoupled Synthetic Rubber Tube and Cover Hose for Small Engines
Product Range
Hydraulic Hose: R1/1SN R2/2SN R9 R12/4SP 4SH R3 R6 PTFE Hose
Industrial Hose: Air/Water Hose Oil Hose Welding Hose Sand Blast Hose
Steam Hose Gasoline Hose Suction Discharge Hose Concrete Pump Hose
Automotive Hose:Air Brake Hose Power Steering Hose Fuel Hose
PVC Hose Silicone Hose Hose Ferrule Hose Fitting Hose Coupling
Package
Factory Show
Our factory covers an area of 20000 square meters workship with a total invest ment up to RMB 100 million.
We own 100 sets of different equipment for production, testing and employ more than 200 staffs, including 15 technicians.
Our Annul output is 10 million meters for hydraulic hoses and 5 million meters for industrial hoses.
Contact us
We are waiting for you, please feel free to contact us. We will produce stable and high quality product for you.
Note: Sizes can be customizedAPPLICATION SELECTION GUIDE
