Timing Belt Type Industrial Synchronous Belt

Shanghai Wutong Synchronous Belt Co., Ltd.
  • Type：Timing Belt
  • Feature：Tear-resistant
  • Usage：Waterproof Tape
  • Performance：Automotive Sealing Strip
  • Transport Package：Ctns
  • Specification：SGS

Base Info

  • Trademark：wttttt
  • Origin：Shanghai China
  • HS Code：40103900
  • Production Capacity：3000000

Description

TYPE3M5M8M14M20MDouble synchronous belt height
                 hd3.205.308.2014.9021.20Single synchronous belt height
                 hs2.403.806.0010.0013.20Teeth height       ht1.222.063.386.028.40Pitch              Pb3.005.008.0014.0020.00Tooth apex Angle   ra0.871.492.464.506.50Fillet radius     rr0.24~0.300.40~0.440.64~0.761.20~1.351.77~2.01Dedendum width      S1.783.055.159.4014.00Tooth profile Angle
               2β≈14°14°14°14° 14°Section zenith distance  δ0.3810.5720.6861.3972.160

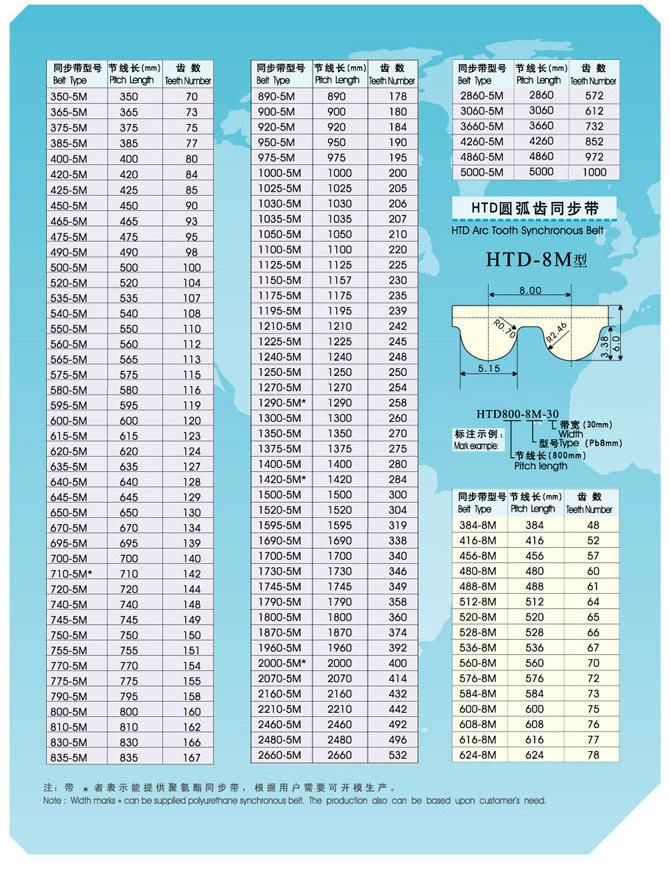

Timing Belt Type Industrial Synchronous Belt

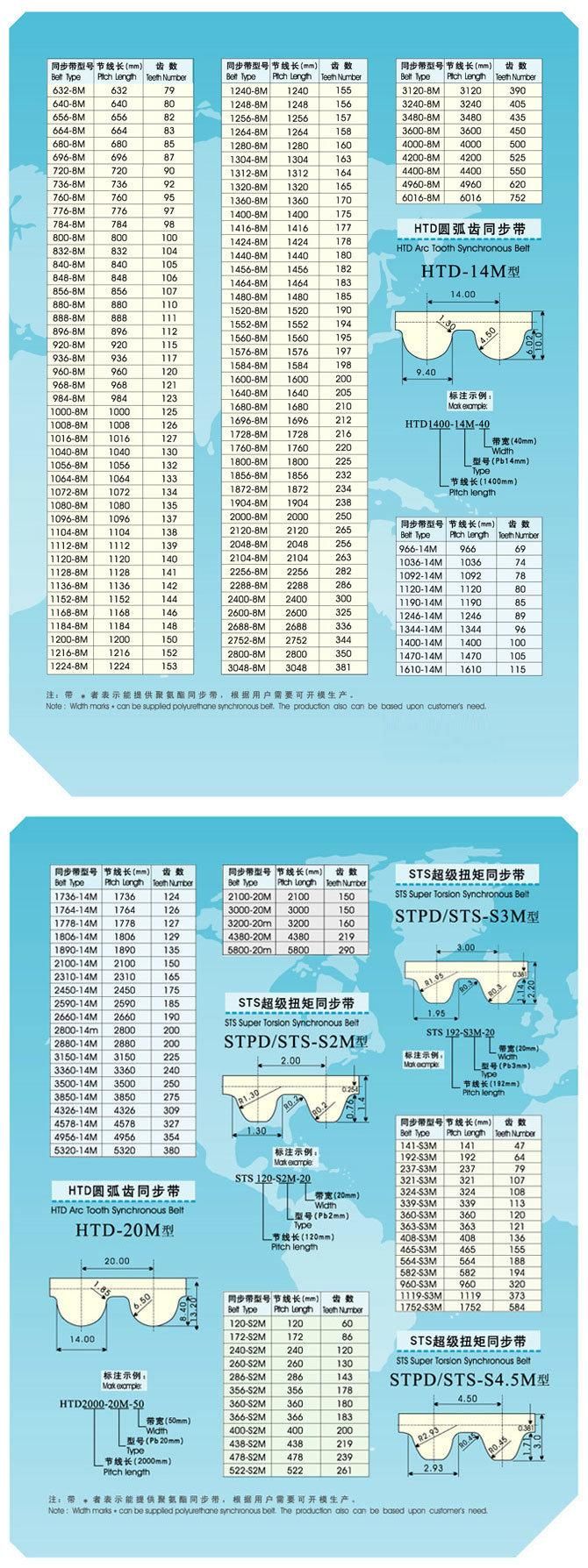

Timing Belt Type Industrial Synchronous Belt


Timing Belt Type Industrial Synchronous Belt
