• Model NO.：EN559 LPG Gas Hose
• Reinforcement：1 or 2 Layer of Fiber Braid
• Surface of LPG Hose：Smooth or Steel Print
• Work Temperature：-20~80
• Length：100m LPG Hose
• Applicable Standards：En559-2003, ISO2928-2003
• Certificate：En559
• Model：Rubber LPG

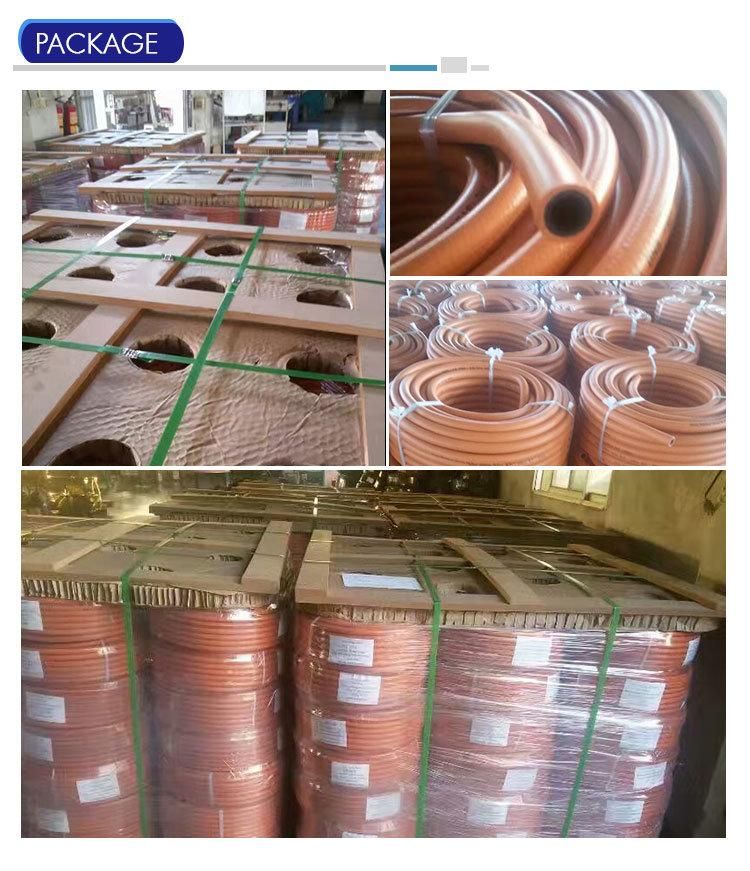

• Transport Package：Well Be Packed in Plastic Film ,Woven Bag.
• Specification：ROHS, CE, SGS certificate
• Trademark：OEM or HIGH-QUA
• Origin：Zhejiang
• HS Code：4009410000
• Production Capacity：500000m Per Week

Basic Info.

Model NO. EN559 LPG Gas Hose Reinforcement 1 or 2 Layer of Fiber Braid Surface of LPG Hose Smooth or Steel Print Work Temperature -20~80 Length 100m LPG Hose Applicable Standards En559-2003, ISO2928-2003 Certificate En559 Model Rubber LPG Transport Package Well Be Packed in Plastic Film /Woven Bag. Specification ROHS, CE, SGS certificate Trademark OEM or HIGH-QUA Origin Zhejiang HS Code 4009410000 Production Capacity 500000m Per Week

Product Description

Flexible EN559 Standard Rubber LPG Gas Hose

Flexible EN559 Standard Rubber LPG Gas Hose
Specification
1. ID: 5~10mm
2. WP: 20 bar
3. BP: 60 bar
4. Fiber, wire reinforce option

Description
1. Scope of application: Applied to the circulation of liquefied fuel gas or gaseous fuel, LPG (liquefied                                                          petroleum gas), MPS (propene propadiene blends), natural gas ( CNG) and                                                              methane (CH4) with working pressure less than 2.5Mpa (25bar)
2. Applicable standards: EN559-2003, ISO2928-2003, GB/T10546-89; Compatibility standard: GB 1186-92
3. Structure:  1). Inner layer of hose: Nitrile-butadiene rubber (NBR) or chloroprene (CR)
                         2). Protective layer of hose: NBR and butyronitrile polyvinyl chloride blends (NBR&PVC) or                                         chloroprene rubber (CR)
                         3). Intermediate reinforced layer: Polyester fiber spiral line
4. Appearance: Mill finish Outer color of rubber hose: Orange (standard color), or black
5. Bend radius: 10 times of proper diameter dimension
6. Application: For commercial and family gas cookeroven, the connection of gas system of industrial device. Transport media: LPG, MPS, CNG, CH4 etc
7. Temperature: -10oC~90oC

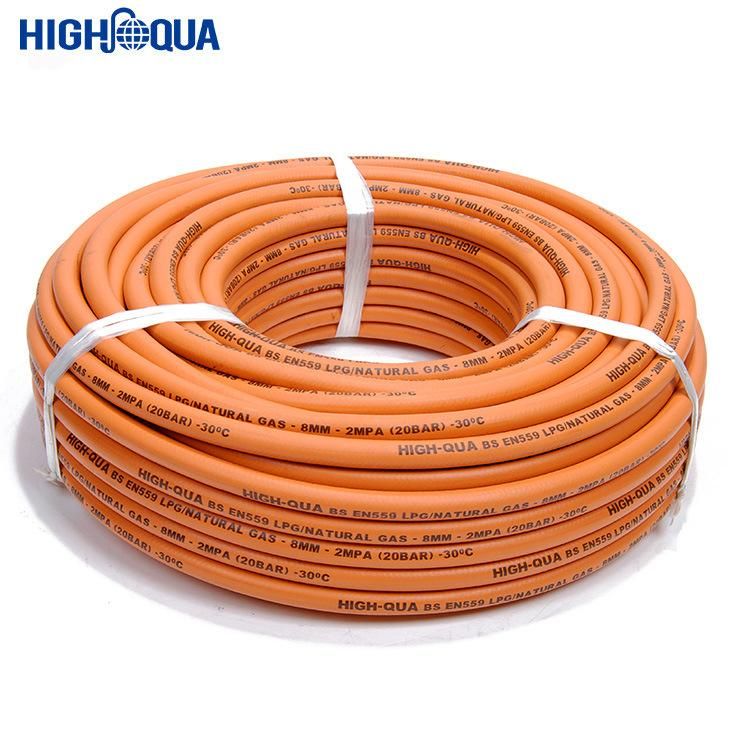

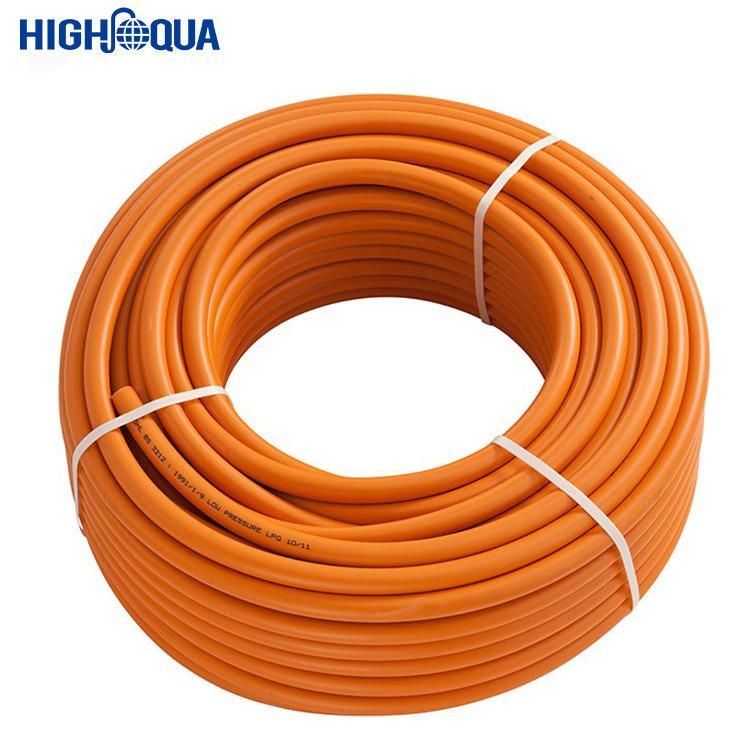

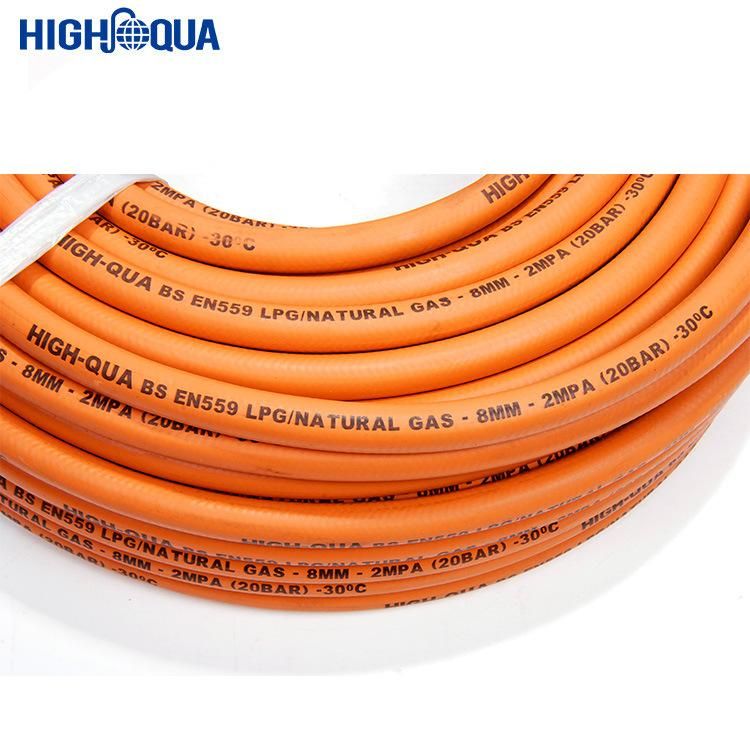

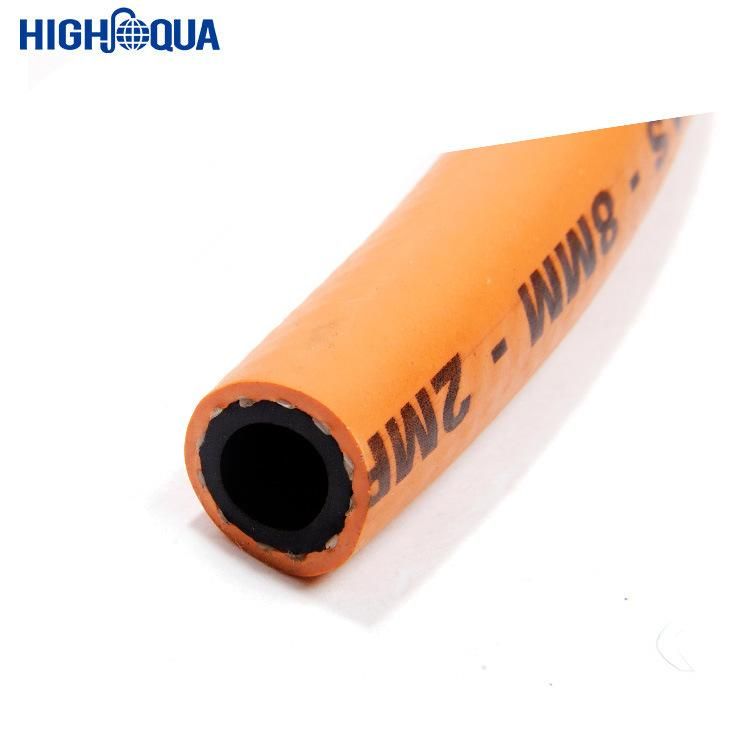

Pictures of LPG Hose:

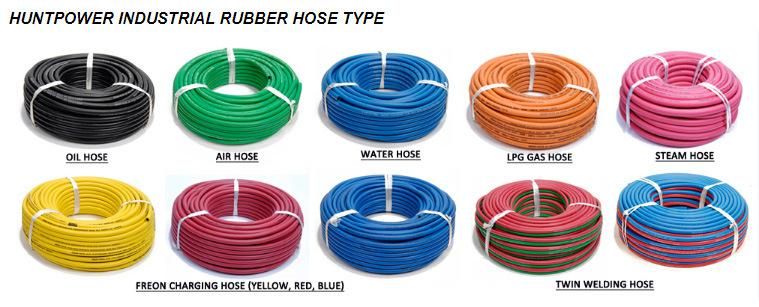

Welding Hose, Gas Hose, Air Hose supplier
Scope of application: Applied to the circulation of liquefied fuel gas or gaseous fuel, LPG (liquefied petroleum gas), MPS (propene propadiene blends), natural gas ( CNG) and methane (CH4) with working pressure less than 2.5Mpa (25bar)

Applicable standards: EN559-2003, ISO2928-2003, GB/T10546-89; Compatibility standard: GB 1186-92

Structure: 1. Inner layer of hose: Nitrile-butadiene rubber (NBR) or chloroprene (CR)
2. Protective layer of hose: NBR and butyronitrile polyvinyl chloride blends (NBR&PVC) or chloroprene rubber (CR)
3. Intermediate reinforced layer: Polyester fiber spiral line

Appearance: Mill finish Outer color of rubber hose: Orange (standard color), or black

Bend radius: 10 times of proper diameter dimension

Application: For commercial and family gas cookeroven, the connection of gas system of industrial device. Transport media: LPG, MPS, CNG, CH4 etc

Temperature: -10oC~90oC









>>>Free samples are available!


If you have any other questions, please do not hesitate to contact us!
