• Model NO.：0601
• Cover：Weather Resistant Synthetic Rubber
• Temperature：-40c to 100c
• Reinforcement：One Braid of High Tensile Steel Wire
• Applied Standard：DIN En853-1sn
• W.P：22.5MPa
• Package：Woven Bage,Wooden Case
• Minimum Bending Radius：100mm
• Inner Tube：Oil Resistant Synthetic Rubber
• Certification：ISO9001
• Transport Package：Weaven Bag or Pallet
• Specification：1,4" inch
• Trademark：Maylead
• Origin：China
• HS Code：40092100
• Production Capacity：5000000m

Basic Info.

Model NO. 0601 Cover Weather Resistant Synthetic Rubber Temperature -40c to 100c Reinforcement One Braid of High Tensile Steel Wire Applied Standard DIN En853-1sn W.P 22.5MPa Package Woven Bage/Wooden Case Minimum Bending Radius 100mm Inner Tube Oil Resistant Synthetic Rubber Certification ISO9001 Transport Package Weaven Bag or Pallet Specification 1/4" inch Trademark Maylead Origin China HS Code 40092100 Production Capacity 5000000m

Product Description

Product Description

1/4" Inch High Pressure Steel Wire Braided Rubber Hose  GB/T3683 EN853-1SN

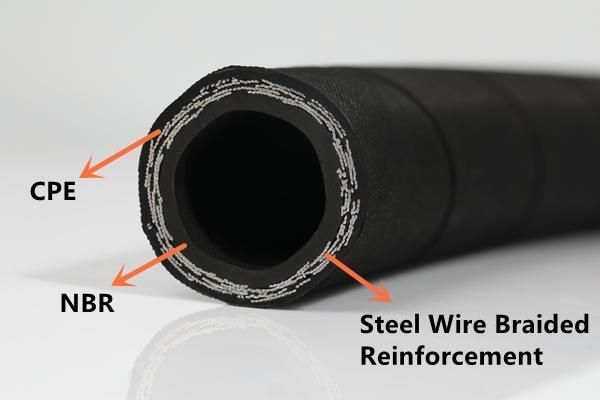

Structure:The hose is composed of inner rubber layer made from oil resistant synthetic rubber, one layer of steel wire braided reinforcement layer and outer rubber layer made also from oil resistant and weather resistant synthetic rubber.

Application:Suitable for conveying hydraulic fluid such as alcohol, hydraulic oil, oil, lubricating oil, emulsion, hydrocarbon and so on.

Working temperature: -40 ºC - +100ºC



Company Profile

Nantong Maylead Techonology Co., Ltd. was the manufacture in China with the experience of more than 15 years. We focus on professional production and sales of steel wire braided hose and steel wire spiral rubber hose. Our products are suitable for Automotive, Motorcycle Parts & Accessories , Construction & Decoration , Industrial Equipment & Components , Manufacturing & Processing Machinery applications.

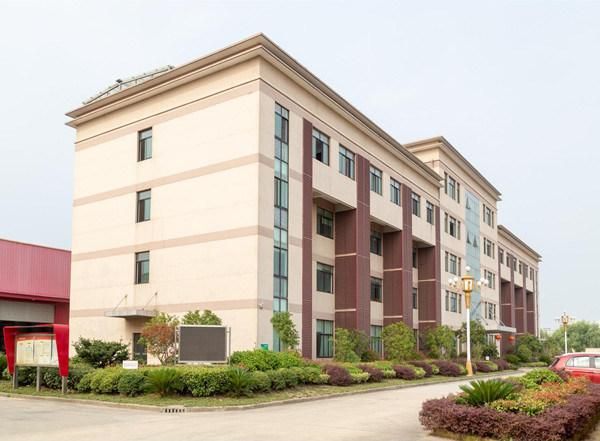

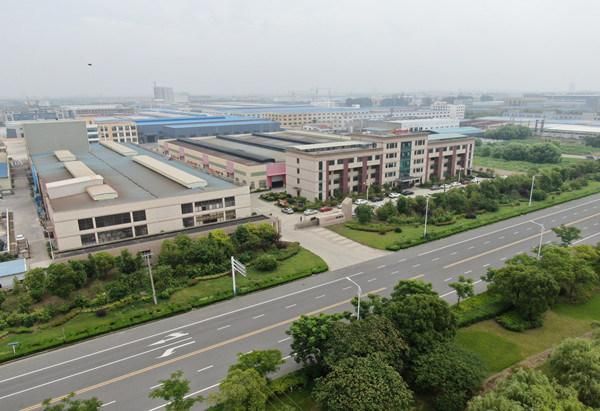

We completed the new plant covers an area of 56 acres, building area of 25,000 square meters.

Modern production equipment; adcanced manufacturing technology; high-level talent introduction;  passed ISO9001:2015, ISO14001:2015, and
OHSAS18001:2007 certification; owned a number of patents; exported to East Europe, Russia, Southest Asia etc.

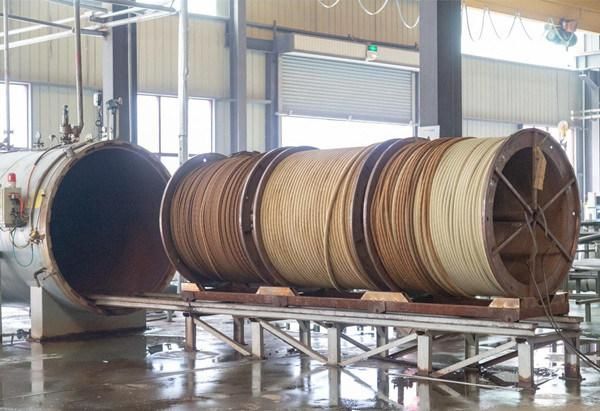

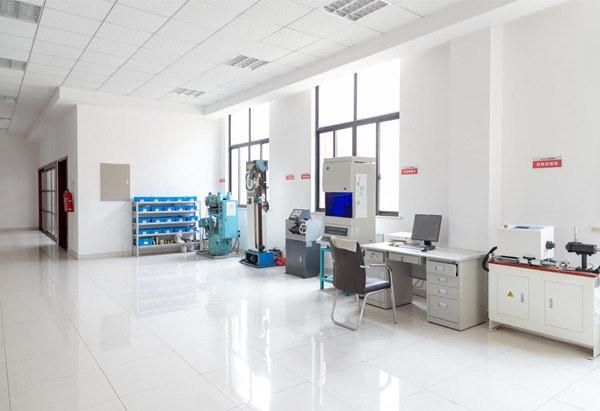

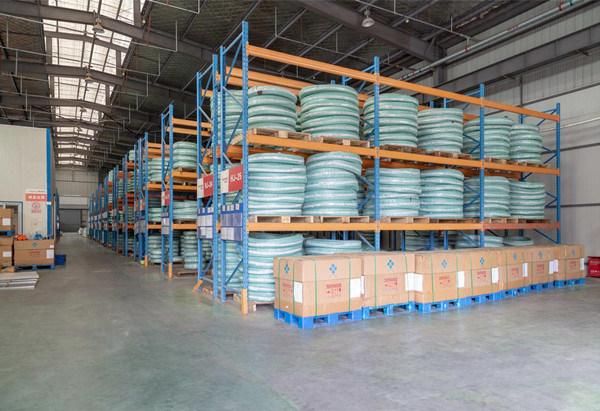

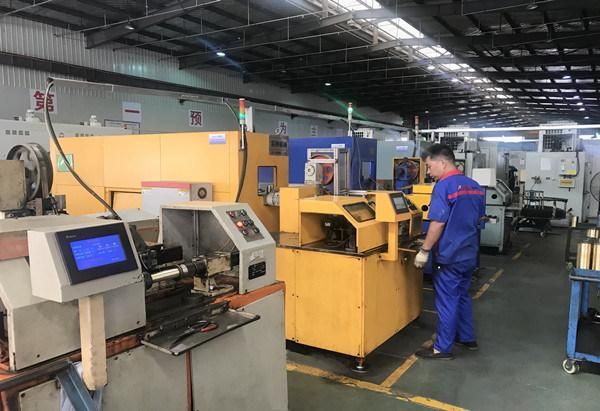

Detailed Photos


Team Building

FAQ(Frequently Asked Questions)

1. Is sample available? Shall I pay for sample or delivery?

    The samples are free. Customers pay for the delivery cost.

2. How long will I get my order?

    General production time for 1x20 feet container is 10-15 days, for 1x40 feet container 20-25 days.

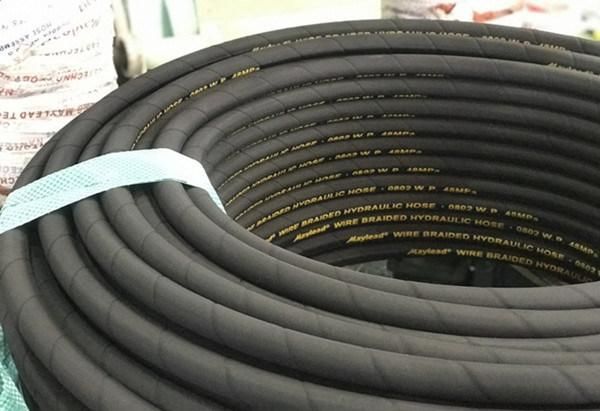

3. How will my order be packed?

    All hose is packed by 2 plies of PVC film, inner is tranparent, outer is color and thick one. (Color can be ordered as customer like). Special packing
    like Reel and Pallet also available. Fitting is packed by 3 plies, carton, PVC bag and then pallet.

4. What should I do if I find quality problem in using?

    12 months Quality Garentee for all of our products. We offer replacement for any defective caused by non-human reasons.

5. Is it possible to visit your factory?

    We warmly welcome you to visit our factory at any of your convenient time.
