• Model NO.：BW400-2200
• Thickness：5-40mm
• Plies：1-10ply
• Transport Package：PVC Water Proof Cloth
• Specification：DIN; AS; RMA; SABS; BS; JISK
• Trademark：Huayue
• Origin：Baoding City Hebei Province China
• HS Code：4010120000
• Production Capacity：5000 Meter Per Week

GradeTesting temperature(≤)T1100ºCT2125ºCT3150ºCT4175ºC

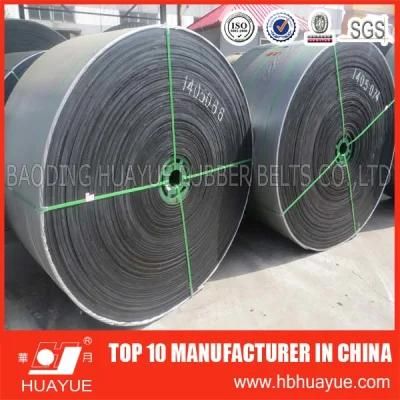

Physical Properties of Rubber Cover of Heat Resistant Fabric Conveyor Belt

ItemGradeT1T2T3T4Changing range allowedHardnessDifference between before-aging and after-aging (IRHD)+20+20±20±20Maximum value after aging (IRHD)85858585Tensile strengthChange rate of property/ %-25-30-40-40Minimum value after aging/ MPa121055Breaking elongationChange rate after aging/ %-50-50-55-55Minimum value after aging/ %200200180180



Full-thickness tensile properties of Heat Resistant Fabric Conveyor Belt

a. Full thickness, longitudinal tensile strength after-aging test reduces not lower than 30% of before-aging values.

b. Full thickness, longitudinal elongation at reference force, not more than 4%.

c. Longitudinal tensile strength, not less than the below table. (N/mm)

Nominal belt type160200250315400500630800100012501600200025003150



Ply adhesion at normal temperature of Heat Resistant Fabric Conveyor Belt

ItemPly to plyRubber cover to plyAll samples average value/ (N/mm) ≥4.53.5All samples min peak value/ (N/mm) ≥3.92.9

For more details, please inquiry us!

Polyester conveyor belt, (EP)
Nylon conveyor belt, (NN)
Cotton conveyor belt, (CC)
Sidewall conveyor belt (SW)
Chevron conveyor belt, (C5 C10 and C15)
Oil Resistance conveyor belt, (OR and MOR)
Hot Resistance conveyor belt, (HR)
Fire Resistance conveyor belt, (FR/PVC/PVG)
Heat Resistance conveyor belt, (OHR/ OFR)
Cold Resistance conveyor belts, (CR)
Endless belts
Conveyor roller, idler
Conveyor Pulley, frame, bracket etc
