• Model NO.：T,Y,E,F,Flat or Customized
• Bearing Type：Deep Groove Ball Bearing with C3,C4
• Color：Black, Red, Yellow, Any Color Is Available
• Pipe Thickness：2.75mm, 3mm, 3.5mm, 4mm and So on
• Pipe Material：Carbon Steel, Q235, Stainless Steel
• Bearing Size：6204, 6205, 6206, 6305, 6306, 6307, 6308
• Transport Package：as Your Request
• Specification：standared
• Trademark：RD
• Origin：Hebei Province China
• HS Code：84313900
• Production Capacity：30000PCS,Month

Length scope(mm)Bearings Type(Min-Max)Idler's Shell Wall Thinkness

Roller Type

Training, aligning, side, vertical, guide

Pipe or tube

1) Material : Q235 carbon steel

2) Diameter : 108 mm

3) Length:  150mm ~ 600 mm

4) Thickness : 1.8 ~4.0 mm

5) with steel end caps

Conveyor type

TD 75 DTII DTII(A)

Shaft / axis

1) Material : A3 / 45# steel equal to DIN C45

2) Diameter:  20 mm, 25mm, 30mm, 35mm, 40mm

Bearing

1) Type : Deep groove ball bearing with C3/C4

2) Size: 6204, 6205,6305,6206,6306,6307,6308

3) Brand: C&U HRB LYC ZWZ NWH SKF NSK

4) Stamped bearing and stamped bearing housing

Seals

1) Feature: Multiple labyrinth water proof dust proof

2) Type: DTII / TR made of nylon, methanal

3) Grease : Lithium grease lubricant

Welding

Automatic double end weld bearing housing

Surface treatment

Electric static spraying painting

Color

Red, blue, yellow, black, etc

Certificate

ISO9001:2008 and patents

Application

Used in coal mine, cement plant, metallurgy and so on

Mini order

50 pieces



Other belt conveyor parts:

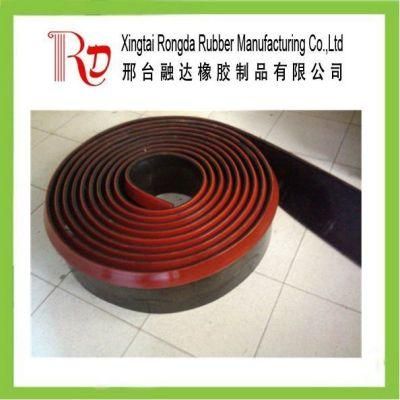

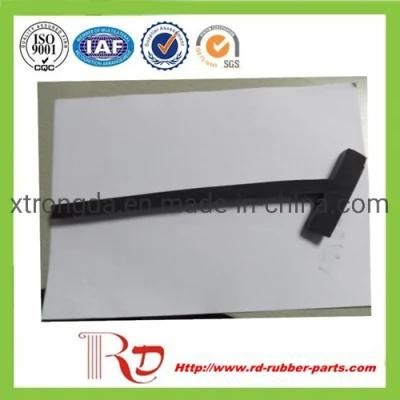

The specification of Duel seal spill skirting board

1.  Spill rubber skirt board thickness : 15-25mm Spill rubber skirt board wideness :150-300mm Spill rubber skirt board : according to the request, the same long with the channel
