• Model NO.：DB-LZ
• Color：Black Rubber Sheet
• Advantage：23 Years Manufacturer, 11 Years Exportor
• Item Name：Cn Bond Layer Conveyor Pulley Lagging Rubber Sheet
• Application：Iron Ore, Mining, Quarrying, Cement
• Keyword：Pulley Lagging Rubber Sheet
• Function：Reduce Belt Slippage, Extend Pulley Service Life
• Install：Cold Bonding, Rubber Sheet with Cn Bonding Layer
• Use：Increase Coefficient Friction
• Hardness：65 Shore a
• Dimension：10mmx2mx10m, etc.
• Abrasion Loss：100mm3
• Thickness：10mm, 12mm, 15mm, 20mm, etc.
• Transport Package：Color Strip, Pallet
• Specification：2m * 10m
• Trademark：Jiaozuo Debon
• Origin：China
• HS Code：4008210000
• Production Capacity：500 Rolls ,Month

Basic Info.

Model NO. DB-LZ Color Black Rubber Sheet Advantage 23 Years Manufacturer, 11 Years Exportor Item Name Cn Bond Layer Conveyor Pulley Lagging Rubber Sheet Application Iron Ore, Mining, Quarrying, Cement Keyword Pulley Lagging Rubber Sheet Function Reduce Belt Slippage, Extend Pulley Service Life Install Cold Bonding, Rubber Sheet with Cn Bonding Layer Use Increase Coefficient Friction Hardness 65 Shore a Dimension 10mmx2mx10m, etc. Abrasion Loss 100mm3 Thickness 10mm, 12mm, 15mm, 20mm, etc. Transport Package Color Strip, Pallet Specification 2m * 10m Trademark Jiaozuo Debon Origin China HS Code 4008210000 Production Capacity 500 Rolls /Month

Product Description

Product Description

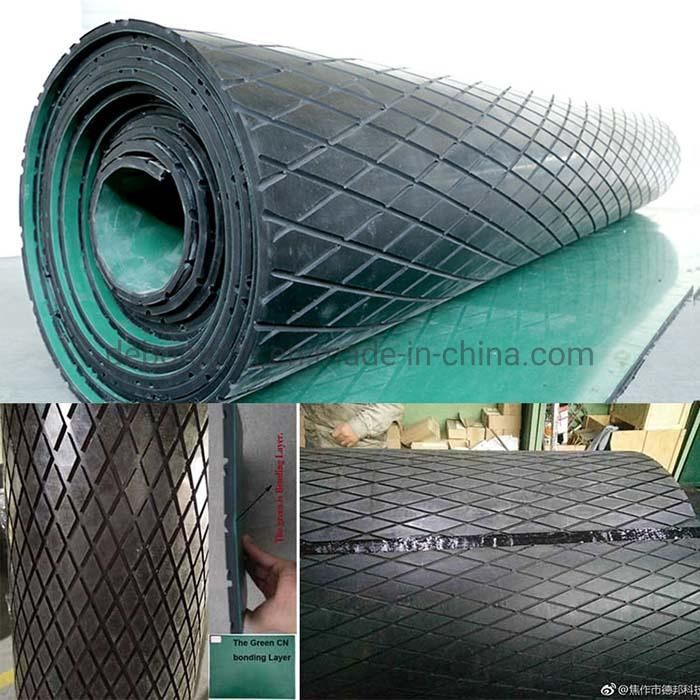

 CN Bond Layer Conveyor Pulley Lagging Rubber Sheet
Coefficient of friction between conveyor belt and pulley is a very important factor in determining the performance of a conveyor belt on a drive.
Low coefficient of friction may cause conveyor belt slippage and lead to more wear of the belt and belt tracking problem.
pulley lagging rubber can reduce slippage and extend service life of conveyor belt.



Technical Data:1. hardness: 60~65 shore a durometer.2. Density: 1.2 g/cm33. Tensile Strength: ≥15MPa.4. Elongation at break: >450%.5. Abrasion Loss: <100cm3.6. Peeling Strength: ≥13MPa.7. Temperature: -40 ~ 90 ºC.

CN Bond Layer Conveyor Pulley Lagging Rubber Sheet Specification:
Material: NR ,SBR, etc.
Hardness: 65 shore a or as request
Thickness: 8mm, 10mm, 12mm, 15mm, 20mm, etc.
Length: 10m, 20m, 30m, etc.
Width: 2m
with cn bonding layer adhesive rubber.
our mould is 2m width *10m length, we also accept customization.


Features of CN Bond Layer Conveyor Pulley Lagging Rubber Sheet:
1.Reduce belt slippage
2.Extend belt and pulley life
3.Available in Natural Rubber and FRAS approved rubber
4.With cn bonding layer

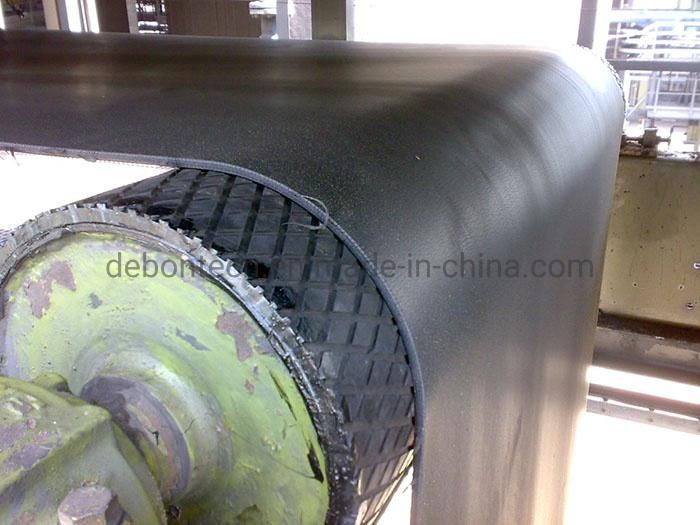

Diamond Pulley Lagging Rubber Sheet is generally applied to pulleys which require more fiction to the conveyor belt. The diamond grooves are more flexible when compared to plain rubber.

Installation:1.Site construction operation is simple and easy to carry out
2.High bonding strength, 5-7 times than the traditional casting glue, creep resistance, no degumming.
3.High compactness, good wear resistance and elasticity, long service life.
4.Use temperature in-20-85 ºC, can run for a long time.


Main Products

PRODUCTS & SERVICES
* Conveyor Systems & Accessories Conveyor Belt Scrapers/Cleaners
* Conveyor Skirting Rubber / Polyurethane
* Ceramic Rubber Wear Liners
* Linings, Coatings, Insulation & Corrosion Protection
* Mill Liners
* Ceramic Rubber Pulley Lagging
* Impact Bed/bars
* Steel Cord Stripper
* Other rubber and polyurehtane products




Company Info


23 Year Manufacturer:

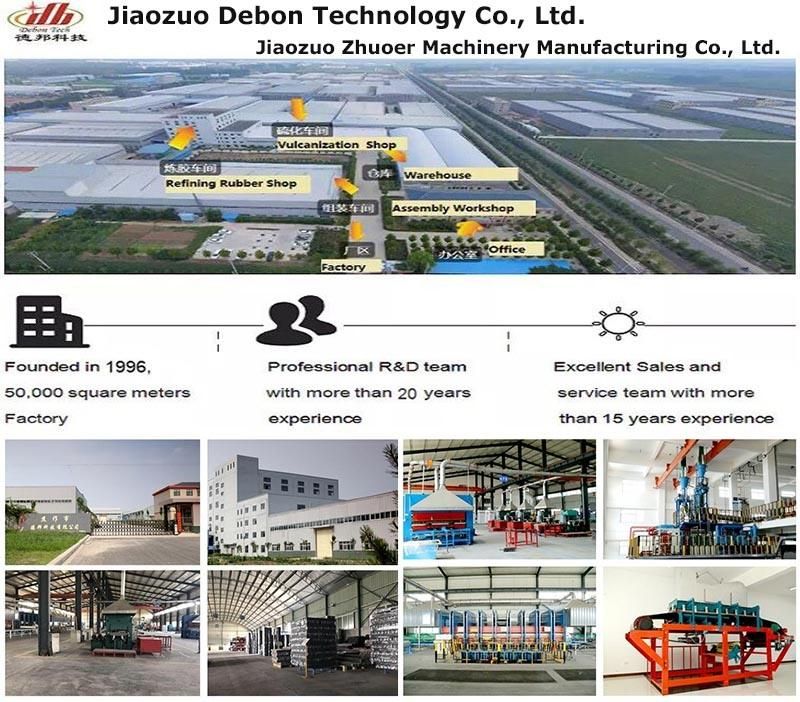

Jiaozuo Debon Technology Co., Ltd., whose former name is Jiaozuo Zhuoer Machinery Manufacturing Co., Ltd, founded in 1996, with 126 employees, including 35 engineers, we are manufacturer specialized in designing and manufacturing Industrial Conveyor Belt Related Products.

11 Year Exportor:
Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Canada, France, New Zealand, Jordan, South Africa, Indonesia, Thailand, Vietnam, etc., good quality have be approved by our clients.

Our company is certified to ISO 9001:2008 Quality Management System, and rubber lagging products were certified to "SAFETY CERTIFICATE OF APPROVAL FOR MINING PRODUCTS". We are ISO SGS approved manufacturer, SGS audited supplier, ISO9001 certified factory.

Our products are exported to many countries including America, Canada, Australia, Russia, Kazakhstan, Chile Southeast Asia, etc.
We also have good performance and market share in domestic market. Our customers prove the high quality and consistency.



Certificate

CN Bond Layer Conveyor Pulley Lagging Rubber Sheet
