• Model NO.：rubber seal
• Color and Dimension：Accept Customized Products
• Certificate：ISO9001:2008
• Pressure Data：60MPa
• Reciprocation Speed：25m,S
• Production Period：Within 30 Days
• Transport Package：Polybag and Carton
• Specification：6-13000mm
• Trademark：morgan
• Origin：China
• HS Code：4016939000
• Production Capacity：100000PCS,Month

Characteristics/MaterialsACMAEMCREPDMFFKMFKMFVMQHNBRNBRVMQResistance to abrasion2322424224Acid resistant4322113133Resistance to chemicals4221111222Resistance to cold4222342222Dynamic properties3332324124Electrical properties3332141331Resistance to fire4424112443Resistance to heat1122111121Sealing water1122224224Resistance to oil1324112112Resistance to ozone1121111241Resistance to tearing2331434224Tensile strength3221213124Resistance to water / steam4431233123Resistance to atmospheric agents11111112311. excellent properties    2. Good properties    3. Average properties    4. Poor properties3. Application Range

Applied in the transmissions of heavy-duty machine and rolling mill, increase the (sealing lip) radial force on the axis of rotation by stretched spring. Sealing medium can be applied to provide adequate lubrication.



4. Characteristics
1- good chemical resistance;
2- good resistance to high and low temperature properties
3 -good corrosion resistance to ozone and climate adaptation
4- high wear resistance
5- low friction
6- low permanent deformation characteristics
7- excellent elasticity

5:Cases:

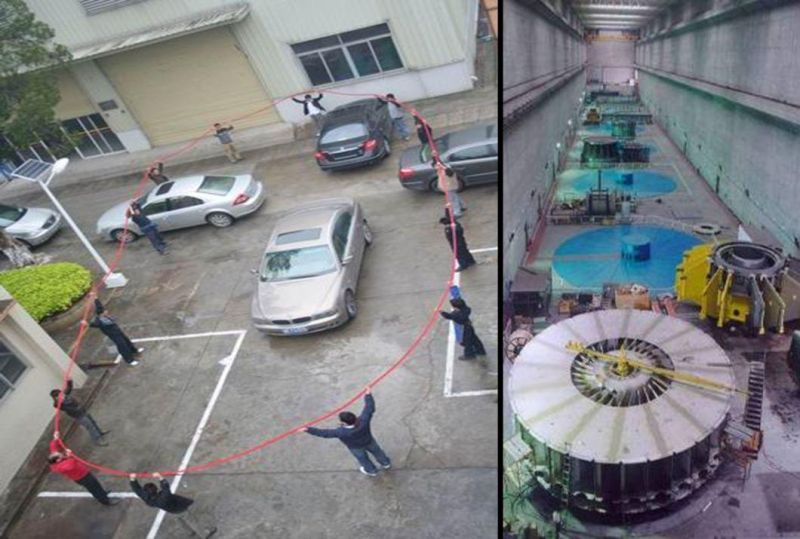

Morgan seals is the supplier of many famous customer, such as the Siemens Primetals, Baosteels .... The largest rubber seal we produced is the sealing ring for Three Gorges Hydroelectric Power Station water-turbine generator(OD is 13000mm).

6: Production Line and warehouse

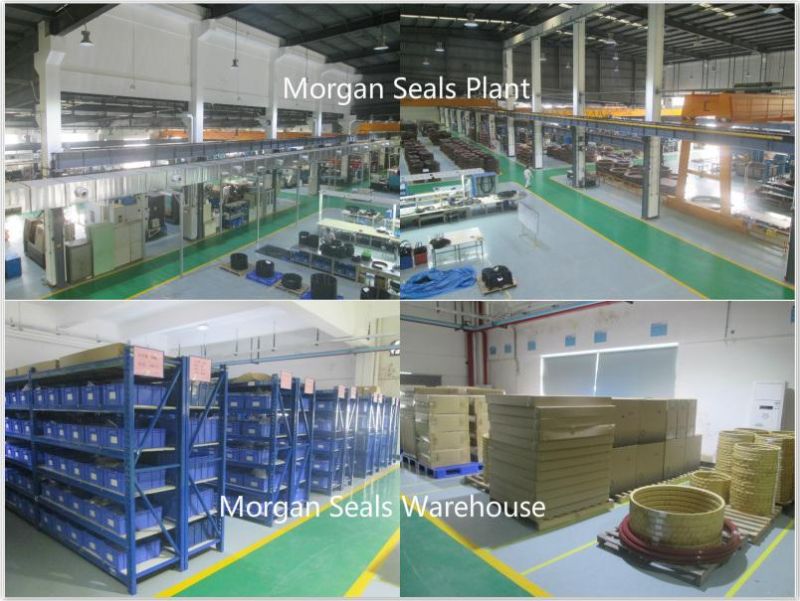

Morgan seals had the biggest vulcanizing machine(4000T) and different kinds of seal moulds. So for the non standard seals, please do not hesitate to contact with us. The following is the the picture of Production Line and Package:

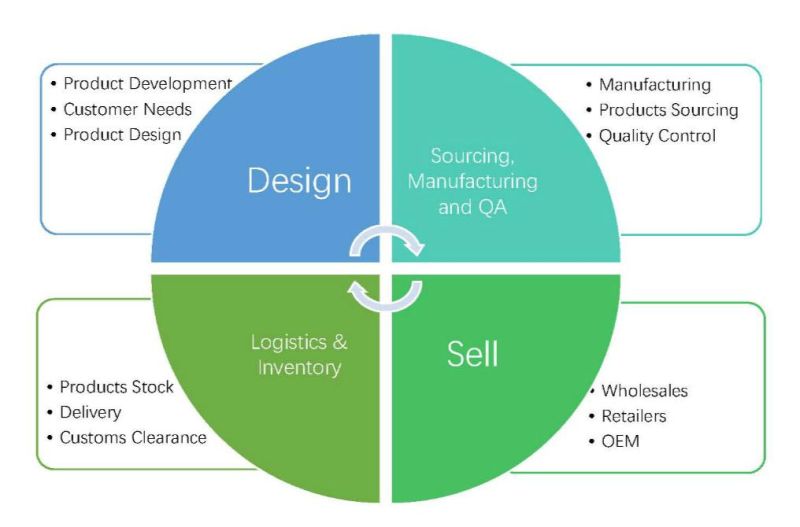

7: Our services:
Guangzhou Morgan Seals Co., Ltd the expert in sealing solution field who combines the rich seals research and production experience of her parent firm with the advanced technology and administration of Morgan, Worcester. Morgan Seals Research and Development ability is based on her parent firm who has won awards as scientific research achievements for more than 1000 projects and over 200 of them won scientific and technological progress prizes of municipal, provincial, ministerial and national levels. At the same time, it also has one National Certified Laboratory, one National Engineering Research Centers and three Industry Level Inspection Centers.
