• Model NO.：ST630-ST5400
• Maximal Nominal Diameter：3.0-11.3mm
• Standards：GB,T9770, DIN22131, En ISO 15236, Sans1366
• Space Bettween Cord：10-18mm
• The Strength Specifications：St630- St5400
• Belt Width：400-2200 Mm
• Guarantee：1 Year (Wear Parts Excluded)
• Transport Package：PVC Water-Proof Cloth
• Specification：DIN; AS; RMA; SABS; BS; JISK
• Trademark：Huayue
• Origin：Baoding City Hebei Province China
• HS Code：40101100
• Production Capacity：2500 Meters Per Day

Basic Info.

Model NO. ST630-ST5400 Maximal Nominal Diameter 3.0-11.3mm Standards GB/T9770, DIN22131, En ISO 15236, Sans1366 Space Bettween Cord 10-18mm The Strength Specifications St630- St5400 Belt Width 400-2200 Mm Guarantee 1 Year (Wear Parts Excluded) Transport Package PVC Water-Proof Cloth Specification DIN; AS; RMA; SABS; BS; JISK Trademark Huayue Origin Baoding City Hebei Province China HS Code 40101100 Production Capacity 2500 Meters Per Day

Product Description

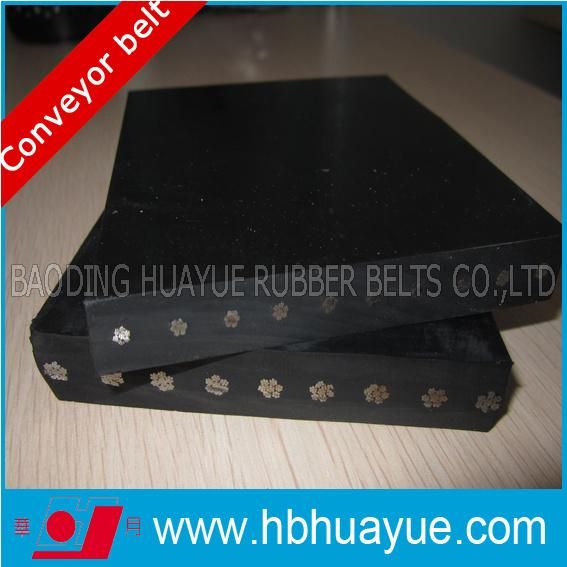

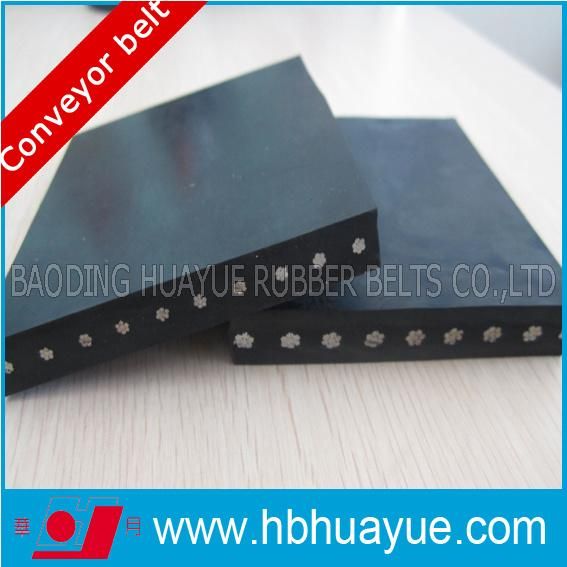

coal mine flame retardant steel cord conveyor belt

Cover Compounds: General, Fire-resistant, Cold-resistant, Abrasion-resistant, Heat-resistant and Chemical-resistant.Din X standard tear resistance steel cord conveyor belt is the best choice.
Features:

1. High tensile strength:Steel cord conveyor belt is suitable for large span,long distance transportation of materials

2. Small elongation in use:It need only a very short take-up stroke distance.

3. Small diameter of drive pulley:Steel cord conveyor belt body has a layer of longitudinally arranged steel cords as its skeleton,and thus is resistant to flex fatigue.Therefore,drive pulley of smaller diameter can be used to make the equipment smaller.

4.High adhesion between rubber and steel cord:The steel cords are coated with zinc on their surface,and also the rubber used has the property of qood adhesion with steel cords.Therefore,the rubber is tighrly adhered to the steel cords and is resistant to shock and difficult to drop,so the rubber belts are long in life.

Standards offered:

GB/T9770, DIN22131, EN ISO 15236, BS, JIS, SANS1366 and AS1333.

For more details,please inquiry us!



Polyester conveyor belt, (EP)
Nylon conveyor belt, (NN)
Cotton conveyor belt, (CC)

Sidewall conveyor belt (SW)
Chevron conveyor belt, (C5 C10 and C15)
Oil Resistance conveyor belt, (OR and MOR)
Hot Resistance conveyor belt, (HR)
Fire Resistance conveyor belt, (FR/PVC/PVG)
Heat Resistance conveyor belt, (OHR/ OFR)
Cold Resistance conveyor belts, (CR)
Endless belts

Conveyor roller, idler

Conveyor Pulley, frame,bracket  etc
