Industrial Water Truck Pump Suction Discharge Hose with High-Pressure
Qingdao Eastop Plastic Product Co., Ltd.- Material：Natural Rubber
- Capability：Water Rubber Hose
- Color：Color
- Product Name：Water Suction Hose
- Specifications：1′′ to 10′′
- Ply：2, 4, 6
Base Info
- Model NO.：water suction hose
- Inner Diameter：25.4mm to 254mm
- Wall Thickness：5.55mm to 14.1mm
- Length：65FT, 100FT, 200FT or Customized
- Wp：150psi
- Bending Radius：6′′ to 100′′
- Weight：0.89 to 21.98kg,M
- Standard：ISO, SGS
- Feature：Wear-Resistant, Impact-Resistant, Non-Corrosive
- Advantage：High-Strength Canvas, Embedding Metallic Flanges
- Transport Package：Woven Bag and Plastic Film.
- Specification：1′′ to 10′′
- Trademark：ET
- Origin：Shandong, China (Mainland)
- HS Code：4009110000
- Production Capacity：500000 Meters Per Month
Description
WP
VP
Weight
in
mm
Ply
in
mm
Ft
M
in
mm
Psi
Kg/cm²
mm-Hg
Kg/m
1
25.4
2
1.437
36.5
200
60
6
150
150
10
736.6
0.89
1-1/4
31.8
2
1.689
42.9
200
60
8
200
150
10
736.6
1.04
1-1/2
38.1
2
1.937
49.2
200
60
10
250
150
10
736.6
1.21
2
50.8
2
2.457
62.4
200
60
12
300
150
10
736.6
1.69
2-1/2
63.5
2
2.957
75.1
200
60
15
375
150
10
736.6
2.04
3
76.2
2
3.496
88.8
200
60
20
500
150
10
736.6
2.80
4
101.6
2
4.587
116.5
200
60
28
700
150
10
736.6
4.67
5
127.0
4
5.752
146.1
200
60
40
1000
150
10
736.6
6.45
6
152.4
4
6.752
171.5
200
60
48
1200
150
10
736.6
7.63
8
203.2
4
8.854
224.9
100
30
64
1600
150
10
736.6
13.01
10
254.0
6
11.11
282.2
65
20
100
2500
150
10
736.6
21.98
Characteristics:
The rubber hose is soft and convenient, the layer has good property of anti-aging and soft in flexibility. The hose has good property of bearing both the positive and negative pressure. The performance of the hose remains good even under the pressure of -80kpa (600mm mercury) at the vacuum. The burst pressure of the hose is 3 times or higher than the working pressure
Application:
1. Rubber suction hose is widely used for delivering liquid or solid materials such as water, oil, sand and cement in fields of industry, agriculture, mining, construction etc.
2. This hose can be used to suction the water at normal temperature and the general neutral liquid in mining, factory, agriculture.
3. The hose is also used for suction and discharge of water, and non-corrosive fluids used in construction pit sand light duty industrial applications. Ideal high pressure water discharge hose for rugged, tough operating conditions

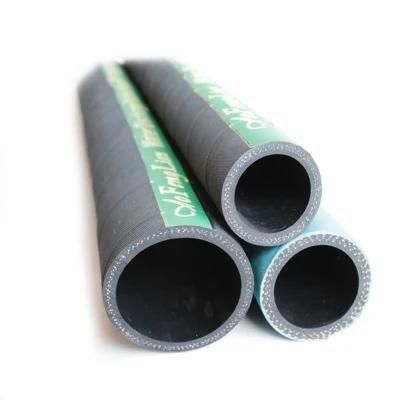

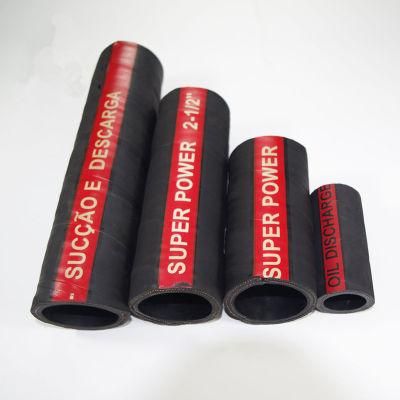

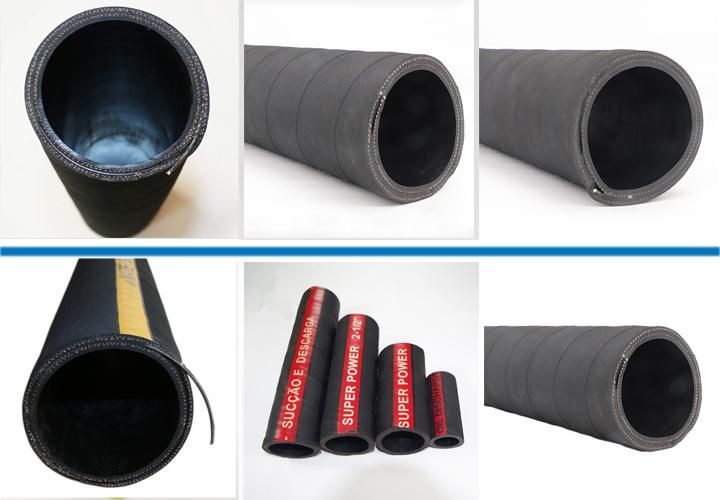

Product Show:
Advantage:
1. Inside and outside rubber layers of suction and discharge hose have fine wear resistance and flexibility.
2. Reinforcement layer is made of twining high-quality and high-strength canvas, plus embedding high-resilience steel wire among canvas layers.
3. The hose has dual nature of bearing both positive and negative pressure.
4. Embedding metallic flanges in both ends, the hose is convenient for installation.

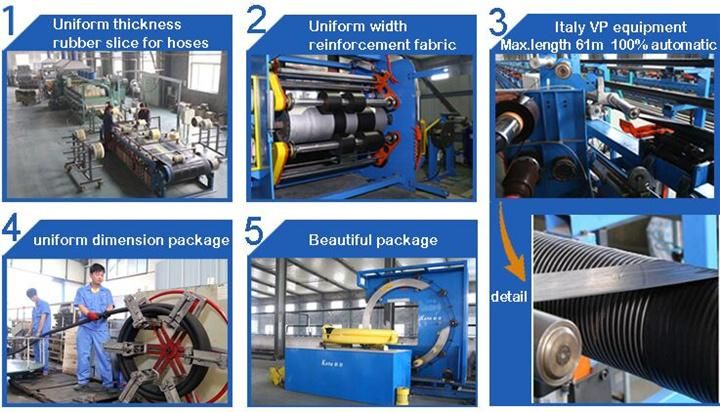

Production Process:
Quality Control:

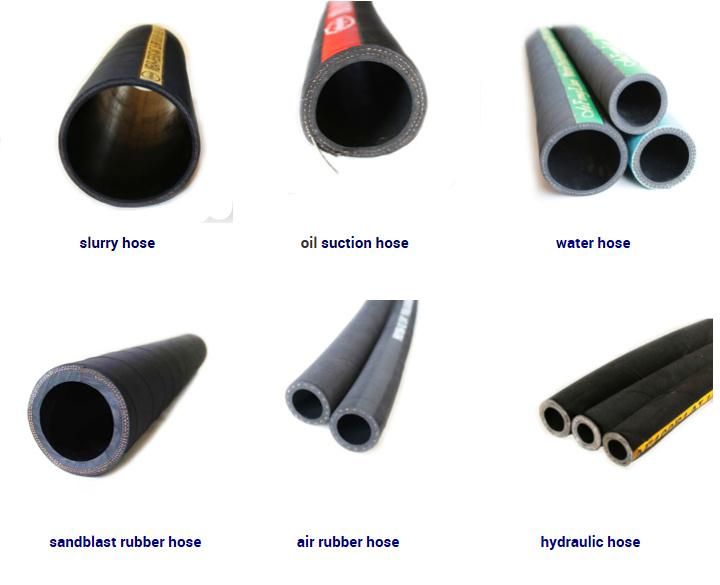

Related Product:

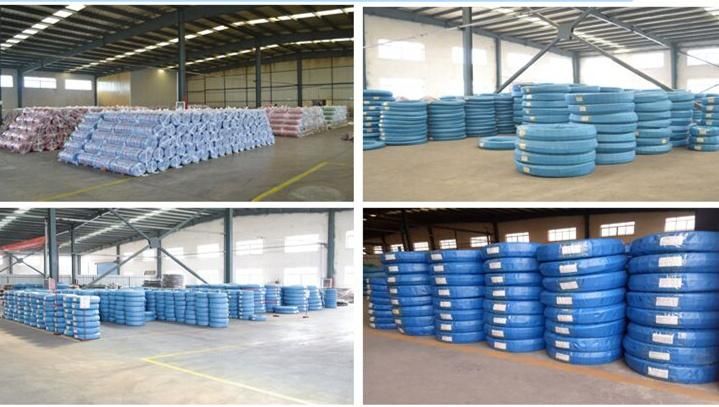

Packing:
The general package of our products is plastic or woven bag with pallet under the hose. however, we can also provide special package according to customer's requests.

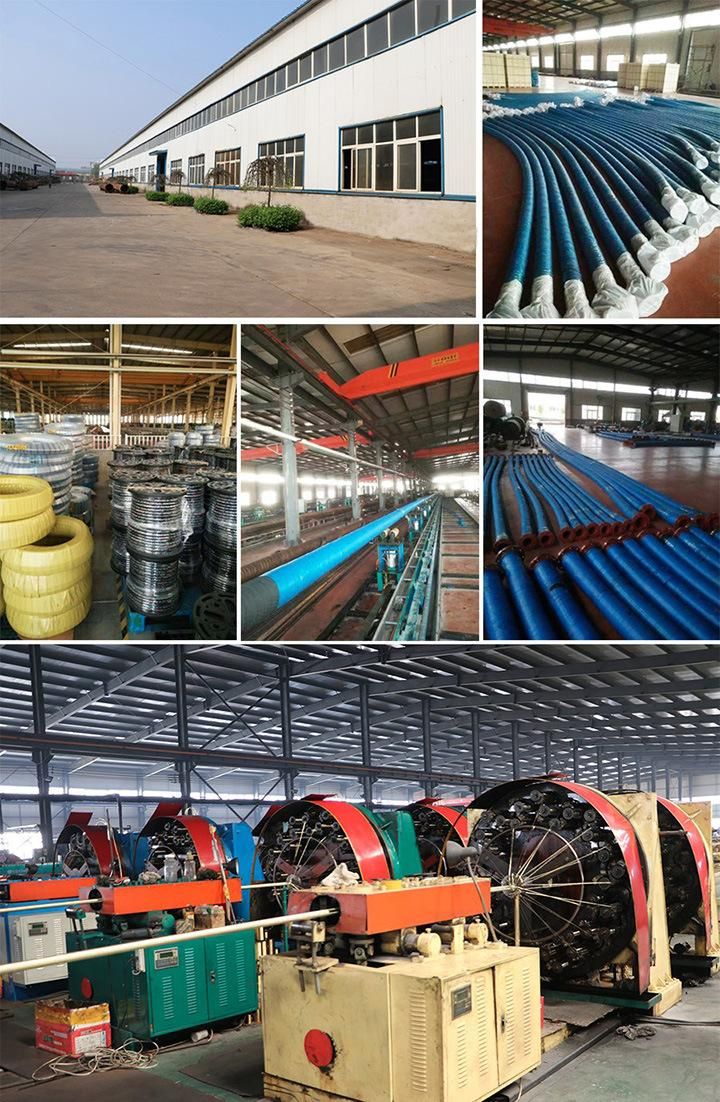

QINGDAO EASTOP PLASTIC PRODUCT CO., LTD is a professional manufacturer and exporter of PVC flexible hoses, has over 14 years' experience of production and 10 years' experience of export. Our product range cover PVC layflat hose, PVC fiber reinforced hose, PVC steel wire reinforced hose, PVC helix suction hose, PVC garden hose, hose couplings, hose clamps, hose assemblies and so on, widely used in industry, agriculture and home, suitable for many uses such as Air, Water, Oil, Gas, Chemical, Powder, Granule and many more. All of our products can be produced according to PAHS, RoHS 2, REACH, FDA, etc.
Our factory is located in Shandong province, covering an area of 70,000 square meters and 10 standard workshops, equipped with 80 production lines, annual output is about 20,000 tons, annual export is more than 1,000 TEU. With strong technical force and strict QC process, we can supply quality products with competitive prices in the shortest time.
Till now, we have served more than 200 customers in 80 countries, such as UK, USA, Australia, Spanish, Colombia, Chile, Peru, Nigeria, South Africa, Vietnam and Burma etc. What we supplied to our customers is not only our products, we supplied a complete process, including products, after sales, technology support, finance solutions and so on. And we are constantly trying to search for new raw materials and manufacturing processes for our products to meet the updated satisfaction and expectations of our customers.

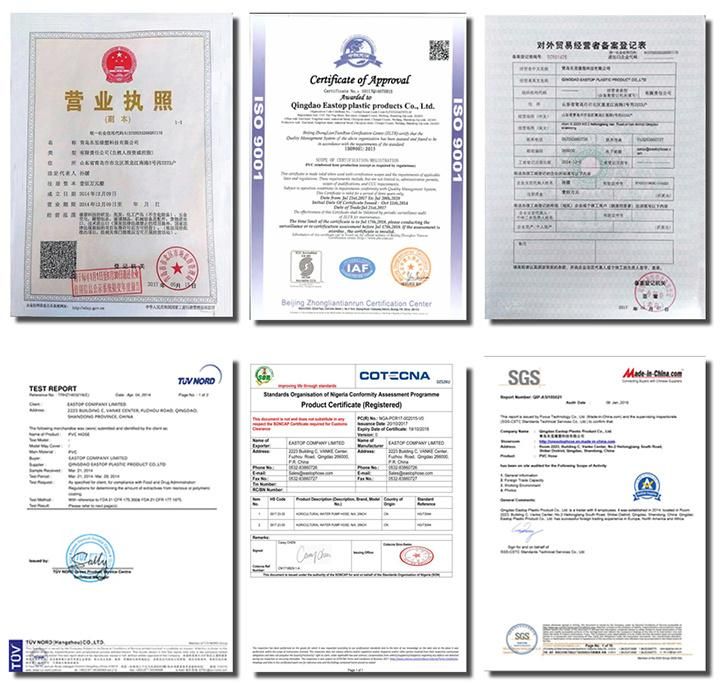

Certification:
