• Model NO.：YB-RUBBER
• Color：Cloth Marks Sheet
• Size：Any Size
• Transport Package：Export Packing
• Trademark：YB
• Origin：China
• HS Code：401693100
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. YB-RUBBER Color Cloth Marks Sheet Size Any Size Transport Package Export Packing Trademark YB Origin China HS Code 401693100 Production Capacity 5000PCS/Month

Product Description

1. Product Information

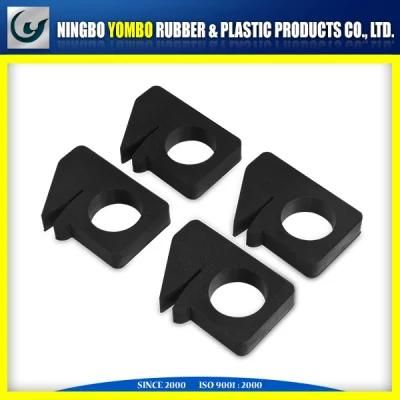

Item nameRubber button bumpers/Rubber grommets/Machined Rubber products
SizeShow us ID, OD, Thickness, material, then we can make price according to your design.
Material

EPDM, Silicone, NR, NBR, Viton, SBR
Hardness

30-95 shore A
Tooling time

Within 10days
Colour Black, Silver, Red, Green, Brown, Terra-cotta, Blue, yellow, white
Certificate

ISO9001-2000

2. Advantage: The temperature resistance (high and low) for EPDM is from -50 to 150, and silicone is -60 to 180. Also the temperature of imported silicone material could get 300degress.

3. Weather Protection: Specifically for maximum resistance to weathering due to ozone and ultraviolet light.

ordinary fluorine rubber physical performance	unit	guide line
hardness(shaoer A type)	degree	70±5
tensile intension	MPa	>10
tensile coefficient of extension	%	>150
compress permanent distortion(hot air 200°C×22h)  compress rate 20%	%	≤50
hot air aging(200°C×22h)  hardness variation  tensile intension variation  tensile coefficient of extension variation	degree % %	≤0~10 ≤-20 ≤-30
anti-liquid(150°C×24h)  No.1 standard oil volume variation  No.2 standard oil volume variation	% %	-3~5 0~15
brittleness temperature°C ≤-25	°C	≤-25
