• Model NO.：810L
• Color：Customized
• Size：Thickness:1-50 mm, Width:0.1-2m, Length:1-50 M
• Transport Package：in Rolls with PP Bags or Wooden Pallets
• Specification：SBR CR NBR EPDM NR Rubber
• Trademark：Bonzer
• Origin：China
• HS Code：400300000
• Production Capacity：10, 000 Ton , Year

PRODUCT DESCRIPTION:

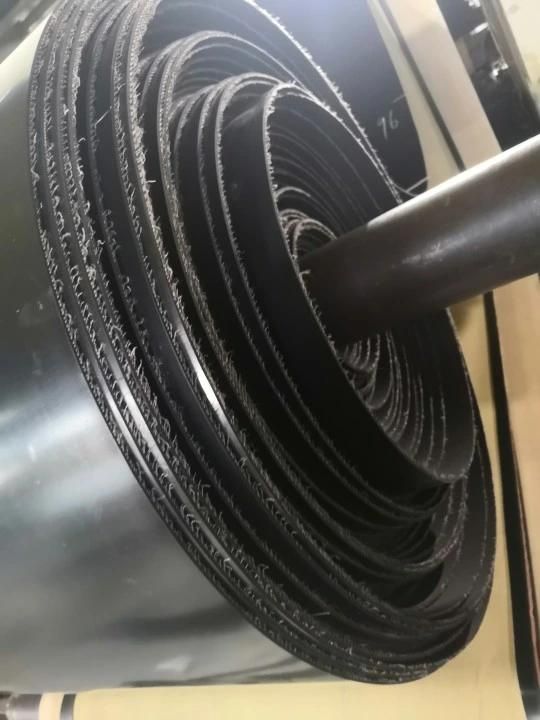

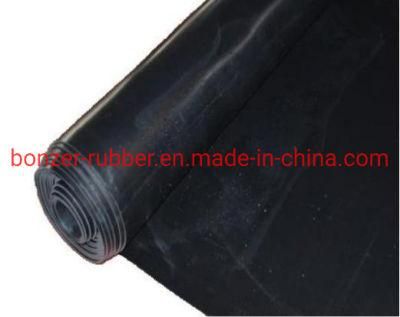

Insertion Rubber sheeting is a natural rubber and styrene butadiene rubber blend with a polyester insertion to ensure that is has increased tensile strength and resistance against tearing. This rubber is commercial quality and is suitable for use in air, hot water and hydraulic services. Due to its versatility and overall great durability it is a great product to be used as a gasket material from its ability to handle high compression loads.

KEY FEATURES

• 1 ply cloth reinforced
• Good strength & tear resistance
• Prevents stretching
• Long expected service life
• Highly versatile material
• Many sizes available from stock



POTENTIAL APPLICATIONS

• High compression load applications
• High strength skirts
• Sealing strips
• Rubber curtains
• Abrasion resistant pads
• Gaskets, strips & O-rings

STANDARD ROLL SIZESTOLERANCESPECIFICATIONS COMPOUNDVALUES1mm x 1.4m x 10m+/‐ 0.2mmColourBlack1.5mm x 1.4m x 10m+/‐ 0.3mmCompoundNR/SBR3mm x 1.4m x 10m+/‐ 0.3mmDensity (Specific Gravity)1.7-1.2 g/cm²4mm x 1.4m x 10m+/‐ 0.4mmHardness (Shore A)65° ± 5°5mm x 1.4m x 10m+/‐ 0.4mmTensile Strength3.5 N/mm²6mm x 1.4m x 10m+/‐ 0.5mmElongation at Break200%-300%Made To Order Minimum Temperature-20°C8mm x 1.4m x 5m+/‐ 0.7mmMaximum Temperature+70°C10mm x 1.4m x 5m+/‐ 1mm  15mm x 1.4m x 5m+/‐ 1mm  20mm x 1.4m x 5m+/‐ 1.4mm  25mm x 1.4m x 5m+/‐ 1.75mm  32mm x 1m x 1m-  38mm x 1m x 1m-  40mm x 1m x 1m-
RELATED PRODUCTS

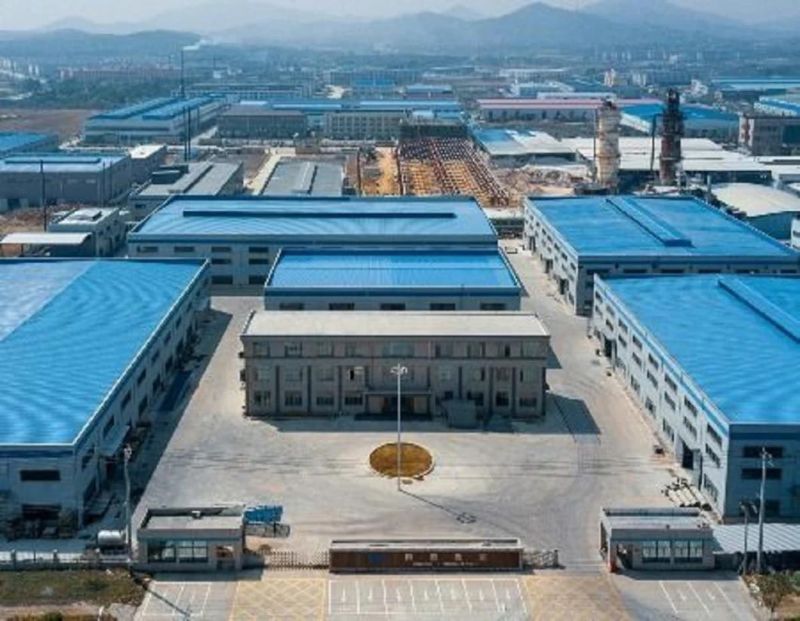

OUR COMPANYBonzer Rubber & Plastic Co., Ltd. Is a professional manufacturer in Rubber sheet, Rubber mat, rubber waterproof material and compound rubber in China. We have more than 300 employees and 50000m² covering area.

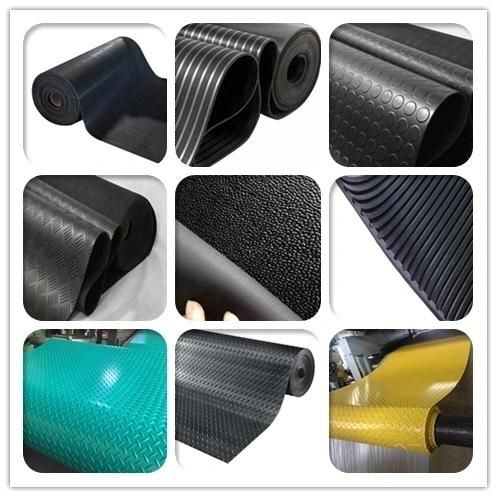

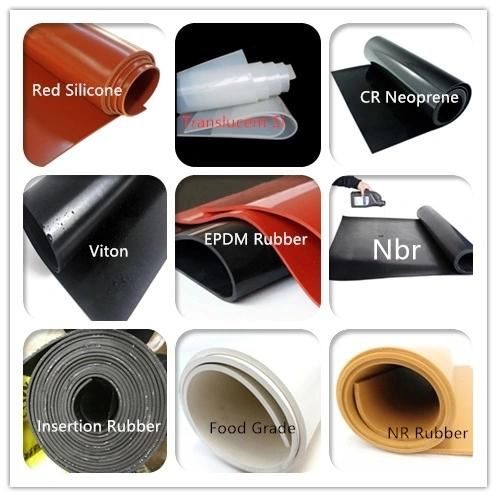

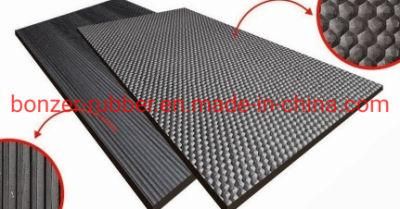

Our main products are Rubber Sheet, Rubber Mat, Cow Mat, Horse Mat, including NR, BR, SBR, NBR, CR, Viton rubber, IIR, EPDM, Silicon Rubber sheet and Compound Rubber. Our products are widely used inchemical industry, machinery, energy, mining, construction electronics and other industries. We have morethan 10 year's experience in exporting to USA, Canada, Europe, the Middle East, Southeast, Asia etc, andall our products are widely commended in the market.

Our Corporation has been passed ISO International Quality System Certification.Our high-performance insulation rubber sheet has been certified by the EU quality certification. We guarantee the customers with our excellent qualtiy, effective and efficient service, reasonable prices and quick delivery. We sincerely welcome and expect business communications with customers from all over the world.

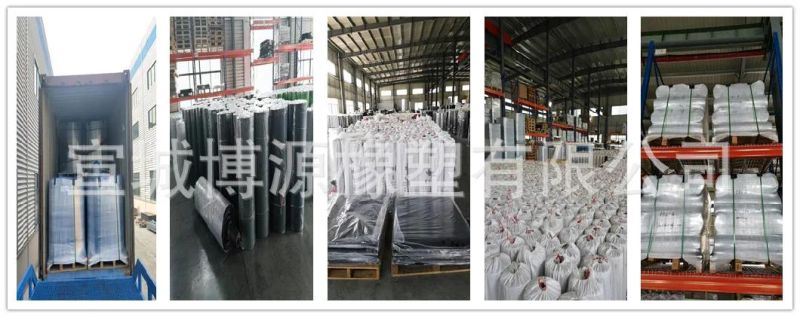

PACKING AND DELIVERYStandard packing:
1. Woven bags (color is white/blue/orange etc,shipping marks will print on bag or stick on bag)
2. PPbag,with adhesive sticker,shipping marks will print on label,and put on PP bag.(PP bag color is transparent/red/black/green etc).
3. Pallets, according to clients requirements.
4. Cow mat / very thick sheet will put on pallet directly.

CUSTOMER VISITATION


CONTACT
Carina Fang
Nanjing Bonzer Rubber & Plastic Co.,Ltd

Add: Office:D1-701, Inter City Space, No.2 Jingyuan Road, Nanjing 211100, China
         Factory: Liqiao Economic Zone, Xuancheng 242047, China
W: bonzer-rubber.en.made-in-china.com
