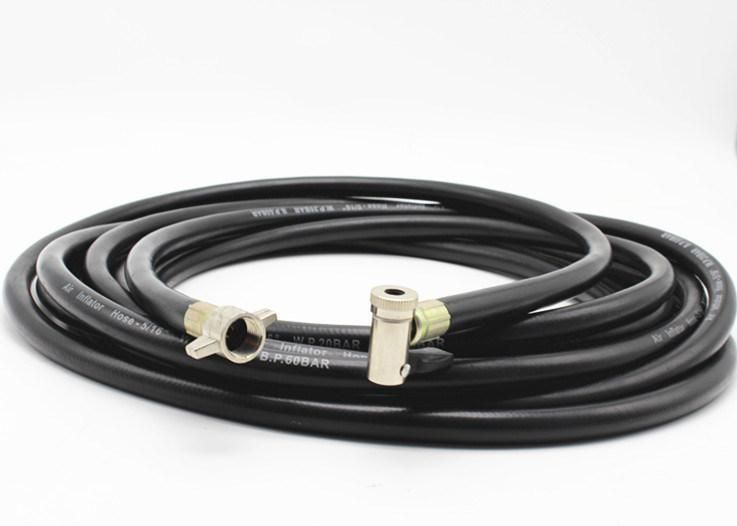

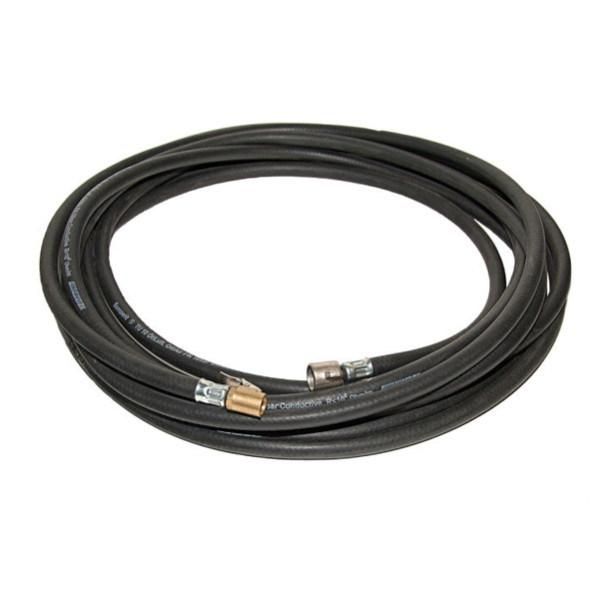

10 Meters Length 5/16" ID Inflator Hose Assembly for Tire Charges
Hangzhou Paishun Rubber and Plastic Co., Ltd.- Material：Nr& SBR Synthetic Rubber.
- Capability：Rubber Air Hose
- Color：Black and Red
- Size：5,16"
- Inner Rubber Material：SBR Synthetic Rubber.
- Outer Rubber Material：SBR Synthetic Rubber.
Base Info
- Model NO.：Inflator Hose Assembly
- Reinforcement：High Tensile Polyester Fiber Braided.
- Temperature：-30 C to + 70 C
- Application：Filling Air for Tires
- Standard Length：8m,10m,12m,15m, 20m
- Working Pressure：300psi
- Burst Pressure：900psi
- Fittings：German or Universal 3 in 1 Quick Coupler and Plug.
- Product Name：10 Meters Length 5,16" ID Inflator Hose Assembly F
- Keyword：Inflator Hose Assembly
- MOQ：500PCS
- Logo：Passion or Client′s Logo

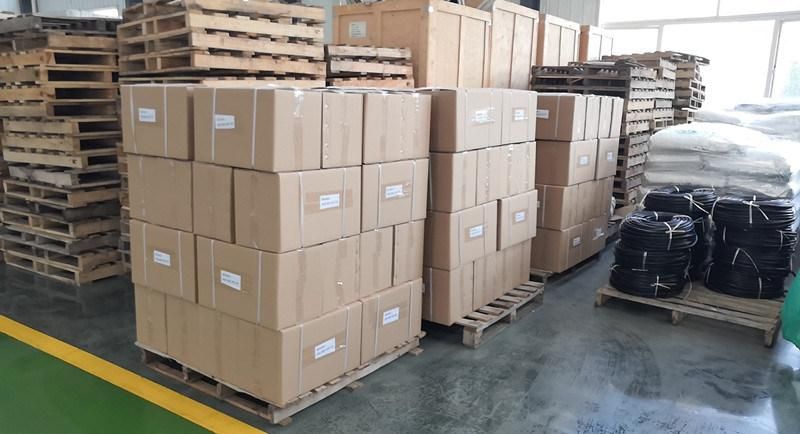

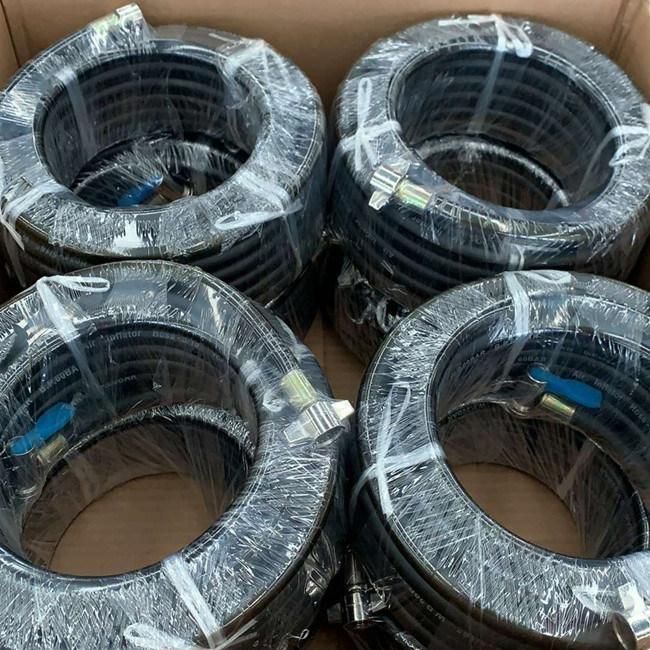

- Transport Package：Well Packed by Good Quality Cartons or Braided Bag
- Specification：8mmx15mm
- Trademark：PASSION
- Origin：China
- HS Code：4003100000
- Production Capacity：15000PCS,Month
Description
Burst PressureLength Weight inch mm mm bar psi bar psi m/pc kg/pc PAI-04-01 1/4" 6 13 20 300 60 900 10 1.8 PAI-04-02 1/4" 6 13 20 300 60 900 20 3.5 PAI-05-01 5/16" 8 15 20 300 60 900 10 2.3 PAI-05-02 5/16" 8 15 20 300 60 900 20 4.5 PAI-06-01 3/8" 10 17 20 300 60 900 10 2.8 PAI-06-02 3/8" 10 17 20 300 60 900 20 5.4
Specification of fittings:
*German or Universal 3 in 1 quick coupler and plug.
*1/4 bsp female swivel ends (both ends).
* Euro style long bard clip on tyre inflator (one side) +screw on m16 x 1.5mm test point adaptor valve (other side)
Specification of fittings:
*German or Universal 3 in 1 quick coupler and plug.
*1/4 bsp female swivel ends (both ends).
* Euro style long bard clip on tyre inflator (one side) +screw on m16 x 1.5mm test point adaptor valve (other side)
